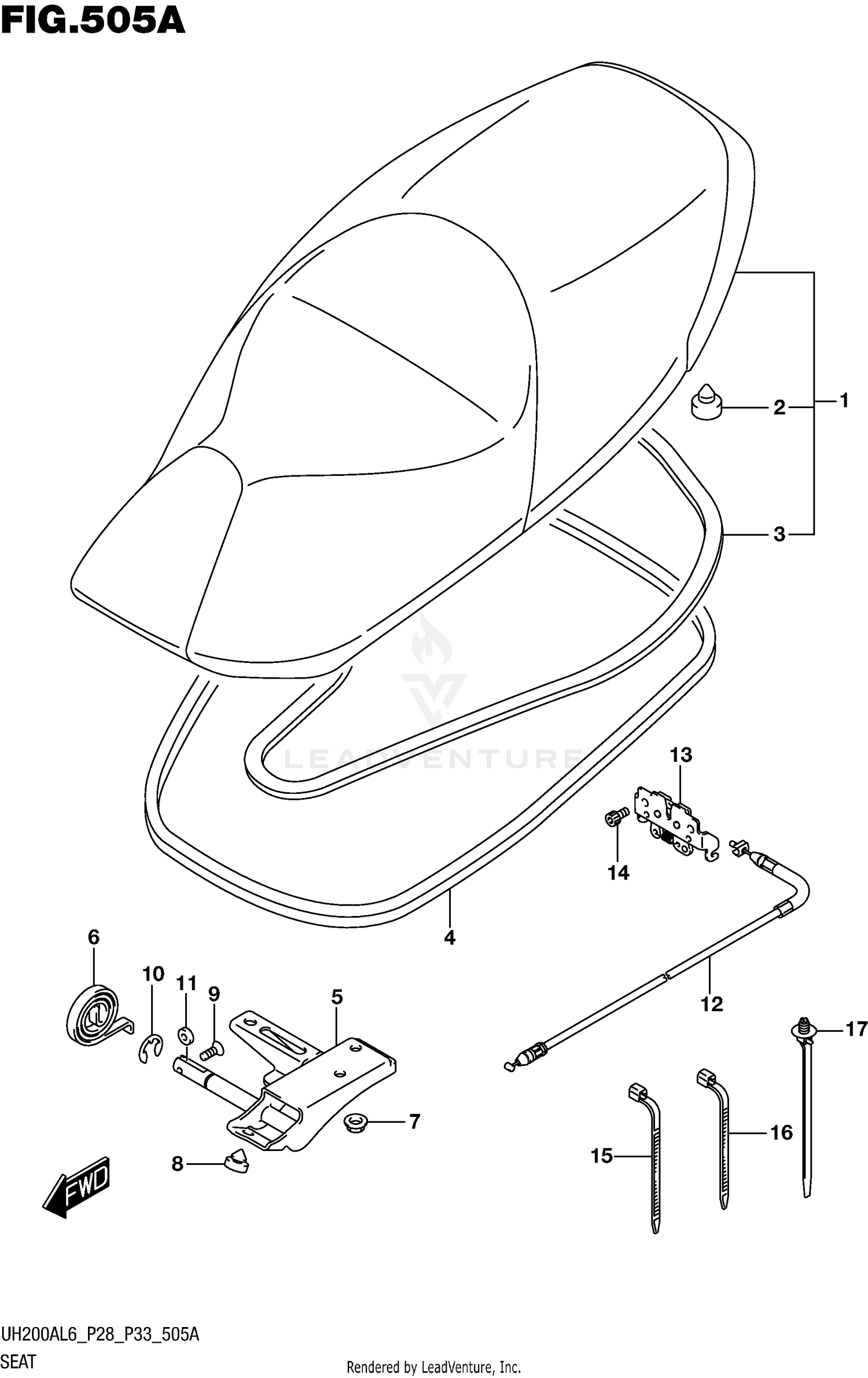

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAT ASSY (BLACK/GRAY)
45100-12J30-A0R
|
$553.56 | ||
|
Available to order. Add to View Price |
|||
|
#2
.CUSHION, SEAT MOUNT REAR
45148-20G80
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#3
CUSHION,SEAT
45148-12J10
Superseded by 45148-12J00
|
$12.80 | ||
|
Unavailable |
|||
|
#4
MOLDING,SEAT
45211-12J00
|
$35.29 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET, SEAT HINGE UPPER
45250-12J10
|
|||
|
Unavailable |
|||
|
#6
SPRING,SEAT HINGE
45275-03H00
|
$18.29 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT
08316-1006A
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#8
.CUSHION (11.5X22X20)
09321-10002
|
$2.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
SCREW
02112-0512A
|
$1.82 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
E-RING
08332-1112A
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPACER (5.2X13X3.2)
09180-05004
|
|||
|
Unavailable |
|||
|
#12
CABLE,SEAT LOCK
45280-12J20
|
$25.76 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRACKET, STRIKER SUPPORT
45700-12J00
|
$26.46 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
01547-0612A
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP (L:165)
09407-18402
|
$2.77 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
CLAMP (L:125)
09407-14403
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
CLAMP (L:154)
09407-17403
|
$6.46 | ||
|
Available to order. Add to View Price |
|||
