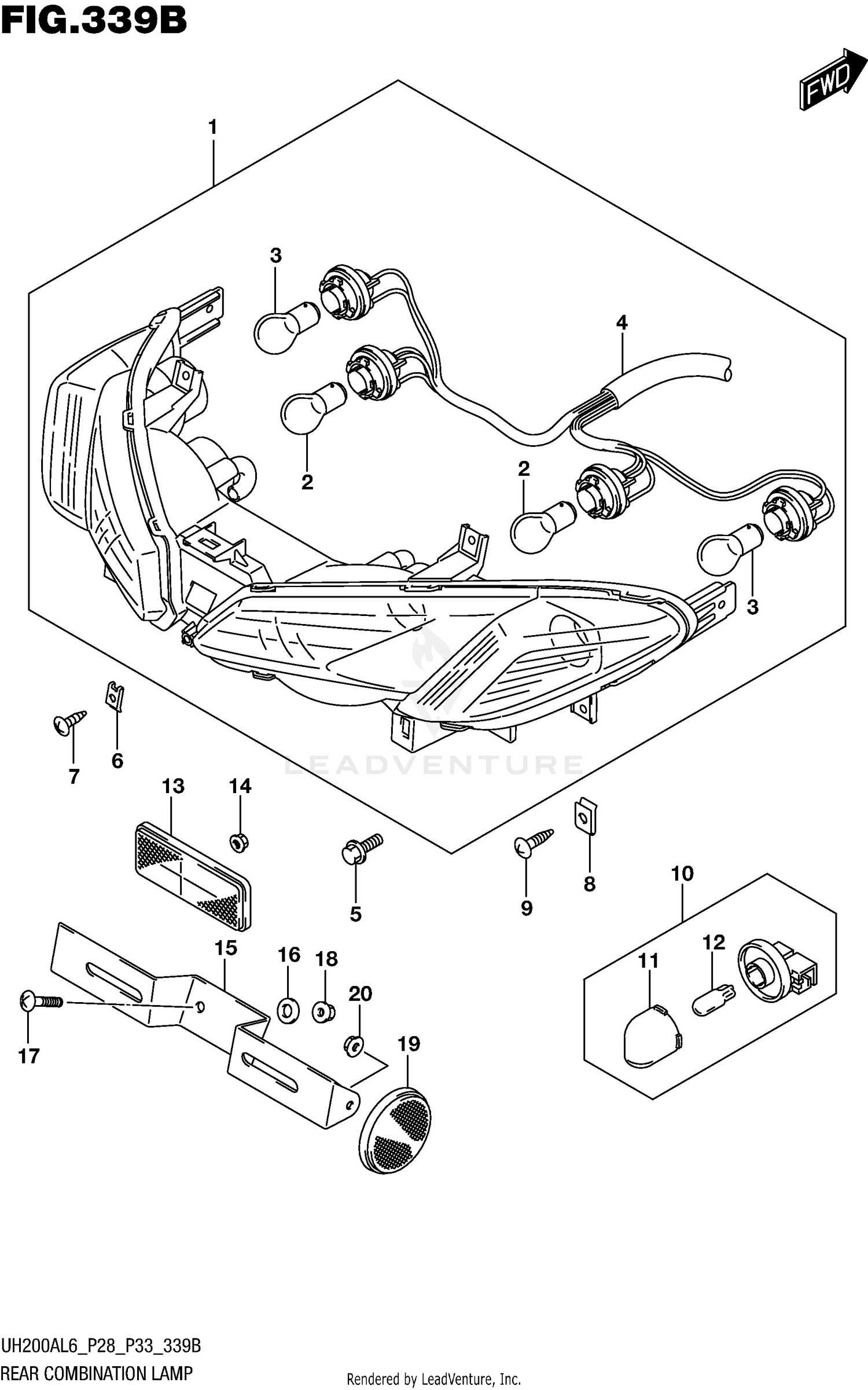

Rear Combination Lamp (uh200al6 P33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP ASSY,REAR COMB
35710-12J00
Superseded by 35710-12J01
|
$191.64 | ||
|
Unavailable |
|||
|
#2
BULB (12V,21/5W)
09471-12046
Superseded by 09471-12128
|
$8.45 | ||
|
Available to order. Add to View Price |
|||
|
#3
.BULB (12V, 21W, AMBER)
09471-12186
|
$16.19 | ||
|
Available to order. Add to View Price |
|||
|
#4
.CORD ASSY
35718-12J00
|
$59.53 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT,REAR COMB
35725-12J00
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT,REAR COMB
35155-12J00
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW
02142-0516A
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
09148-05038
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW
03541-0516A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#10
LAMP ASSY, LICENSE
35910-14F01
|
$34.11 | ||
|
Available to order. Add to View Price |
|||
|
#11
.LENS
35912-14F11
|
$9.35 | ||
|
Available to order. Add to View Price |
|||
|
#12
.BULB (12V5W)
09471-12216
|
$6.73 | ||
|
Available to order. Add to View Price |
|||
|
#13
REFLEX REFLECTOR ASSY, REAR
35970-22J00
|
$39.41 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
08316-1005A
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRACKET, LICENSE PLATE
35927-12J30
|
$15.80 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER (6.5X16X1.2)
09160-06019
|
$1.74 | ||
|
Available to order. Add to View Price |
|||
|
#17
.SCREW
02142-0616A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
08316-1006A
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
REFLECTOR ASSY,RR SIDE
35970-14A20
|
$20.07 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
08316-1005A
|
$2.72 | ||
|
Unavailable |
|||
