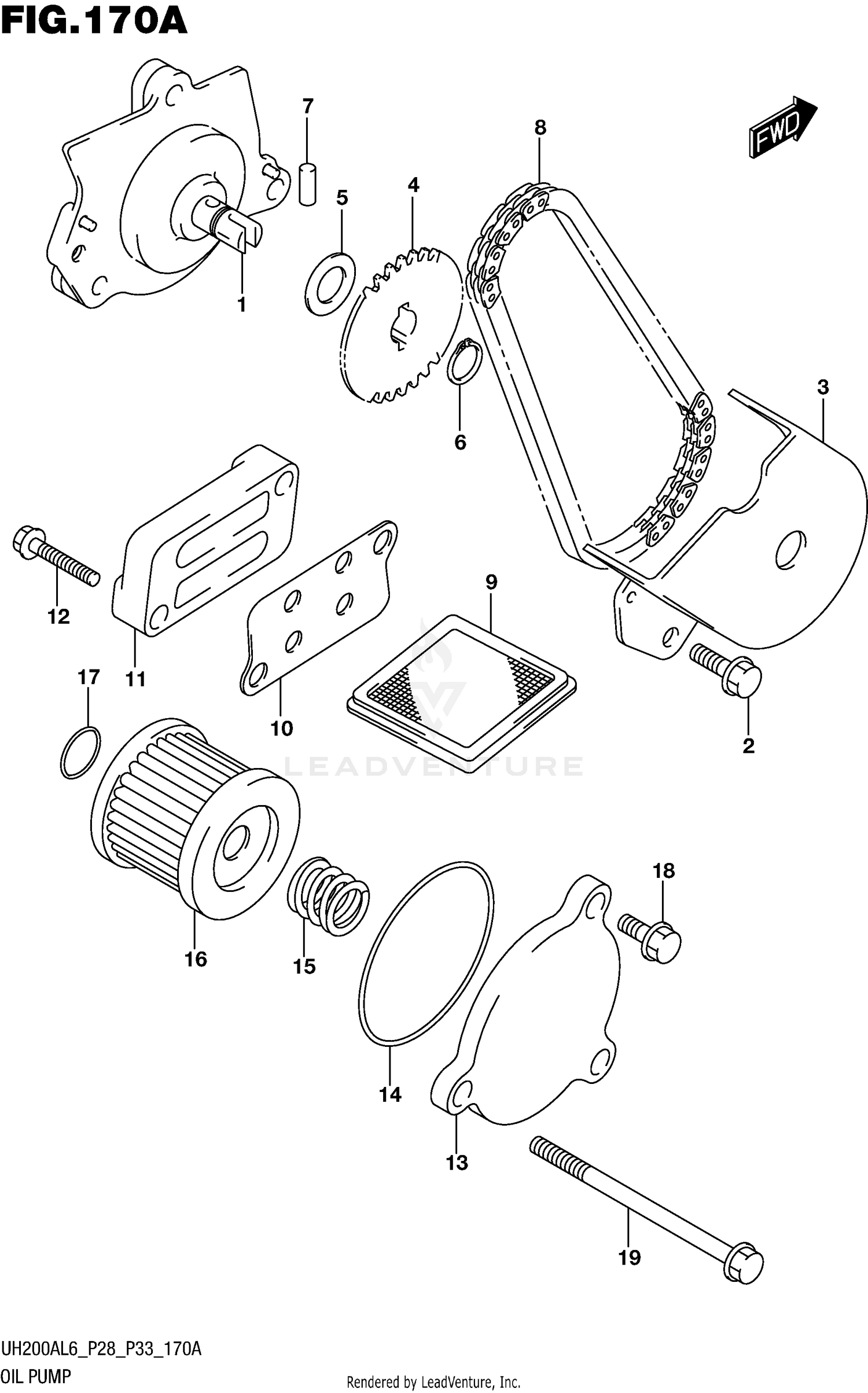

Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP ASSY,OIL
16400-49F00
|
$151.30 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
01547-0625A
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER,OIL PUMP
16422-03H10
|
$11.62 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPROCKET, OIL PUMP DRIVEN
16331-49F00
|
$30.19 | ||
|
Available to order. Add to View Price |
|||
|
#4
(NT:25)
16331-49F00
|
$30.19 | ||
|
Unavailable |
|||
|
#5
SHIM (10X18X0.5)
09181-10158
|
$2.46 | ||
|
Available to order. Add to View Price |
|||
|
#6
CIRCLIP
08331-31109
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN (4X15.8)
09261-04009
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#8
CHAIN ASSY, OIL PUMP DRIVE
16310-14F00
|
$43.69 | ||
|
Available to order. Add to View Price |
|||
|
#8
(82RH2005-56M)
16310-14F00
|
$43.69 | ||
|
Unavailable |
|||
|
#9
STRAINER,ENGINE OIL
16520-09402
Superseded by 16520-09403
|
$9.64 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET, OIL STRAINER CAP
16524-46G00
|
$7.24 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAP, OIL STRAINER
16523-20E00
|
$12.09 | ||
|
Unavailable |
|||
|
#12
BOLT
01547-0625A
|
$2.53 | ||
|
Unavailable |
|||
|
#13
CAP,OIL FILTER
16512-20G00
|
|||
|
Unavailable |
|||
|
#14
.O RING (D:2.4,ID:52.6)
09280-54001
|
$4.71 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
SPRING
09440-18002
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
FILTER ASSY,ENG OIL
16510-45H10
|
$10.79 | ||
|
Available to order. Add to View Price |
|||
|
#17
O RING (D:1.9,ID:12.6)
09280-13007
Superseded by 09280-12009
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
07130-0616A
Superseded by 07130-0616B
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BOLT
07130-0665A
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
