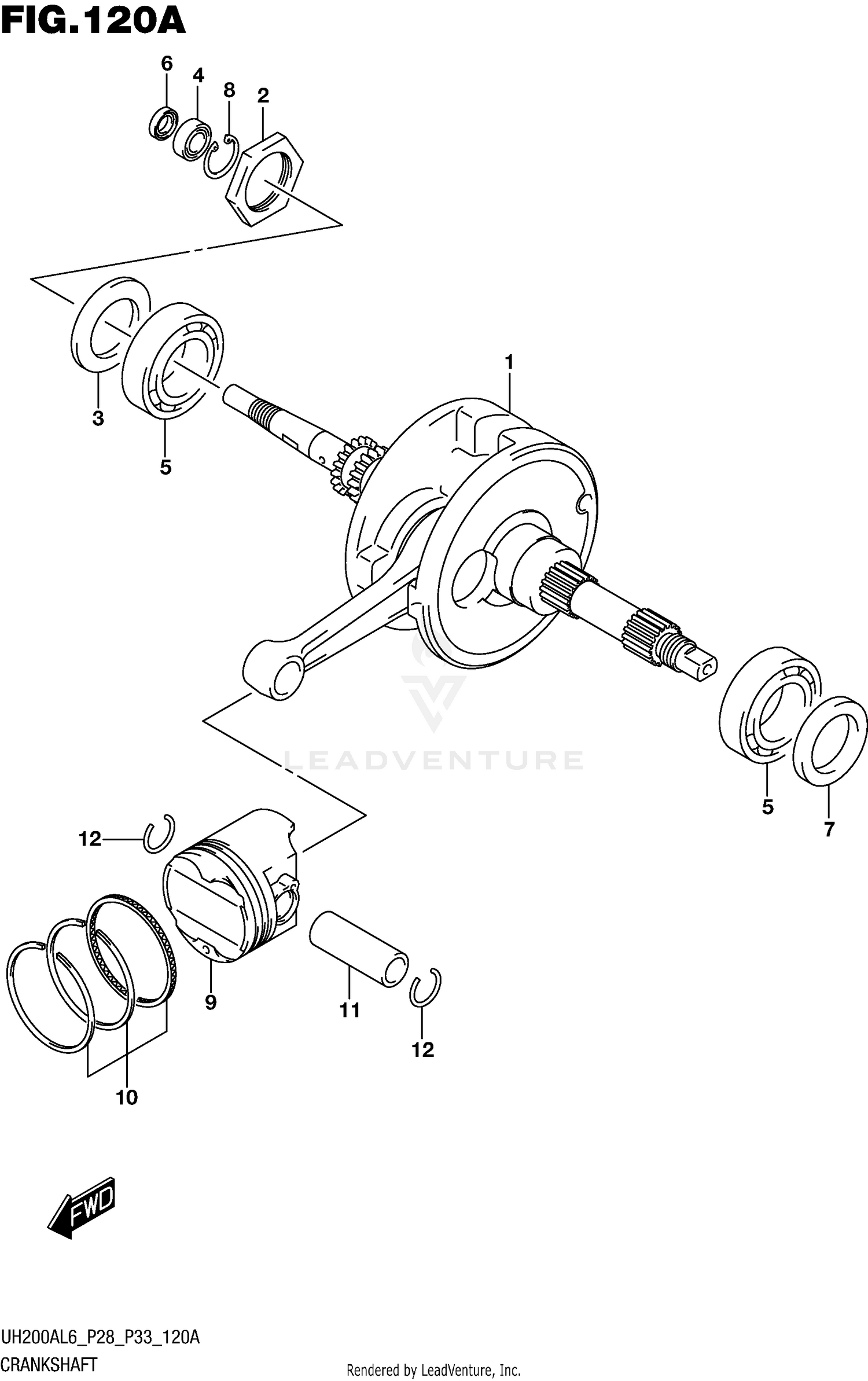

Crankshaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSY
12200-12J50
|
$541.58 | ||
|
Available to order. Add to View Price |
|||
|
#2
NUT
12664-24B01
|
$17.41 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHIM (35X57X1)
09181-35024
|
$7.41 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
08153-60017
|
$38.56 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING (35X72X17)
09262-35038
|
$58.93 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAL,OIL (12X21X7)
09282-12L01
|
$16.04 | ||
|
Available to order. Add to View Price |
|||
|
#7
OIL SEAL (34X52X6)
09283-34L01
|
$30.11 | ||
|
Available to order. Add to View Price |
|||
|
#8
CIRCLIP
08331-41289
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#9
PISTON
12111-03H60-0F0
|
$105.38 | ||
|
Available to order. Add to View Price |
|||
|
#10
RING SET, PISTON
12140-06H10
|
$74.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN,PISTON
12151-17C20
|
$16.38 | ||
|
Available to order. Add to View Price |
|||
|
#12
CIRCLIP
09381-19006
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
