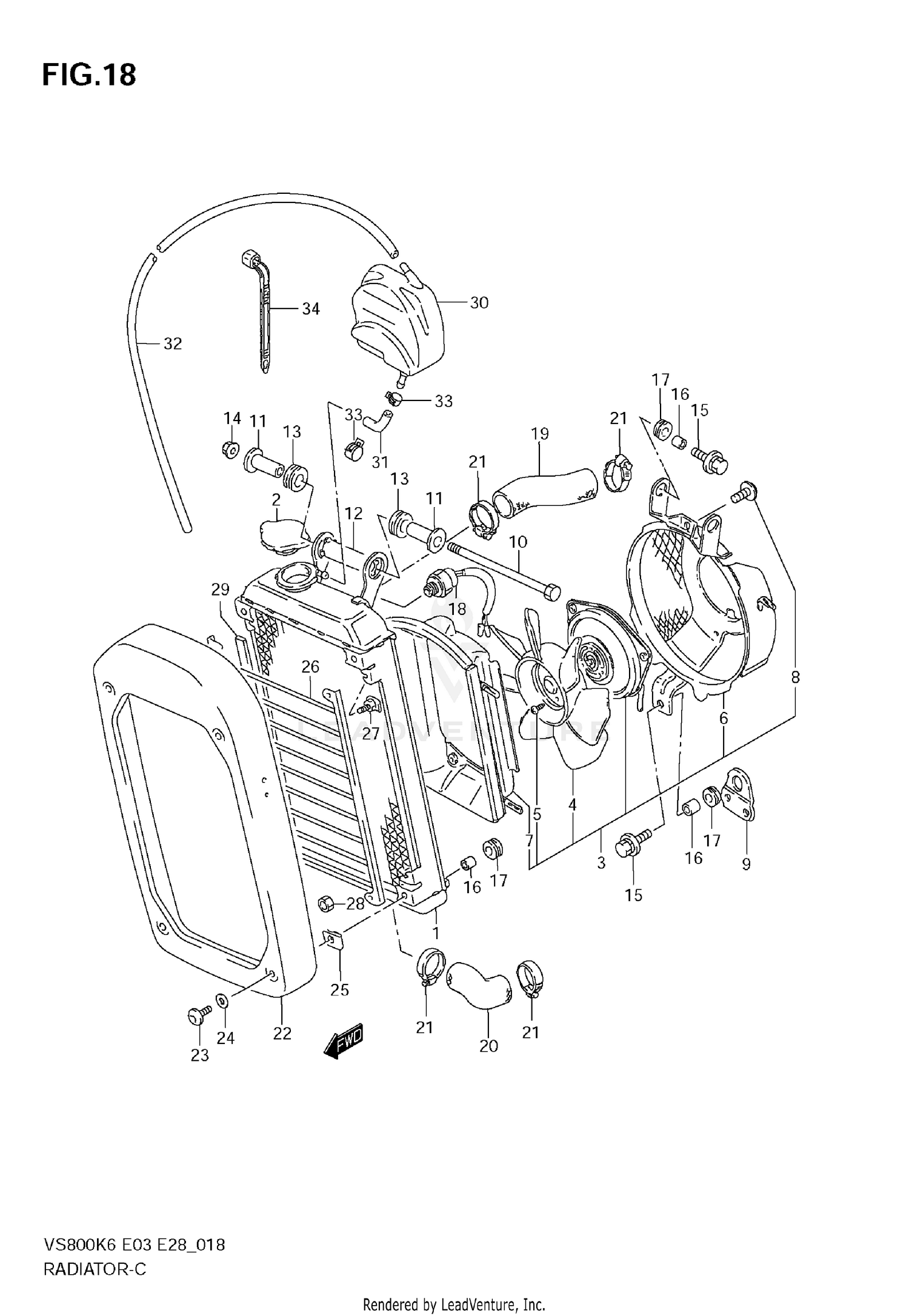

Radiator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RADIATOR
17710-39A00
|
$1,206.12 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP,RADIATOR (1.1)
17730-12C20
Superseded by 17730-08J00
|
$52.50 | ||
|
Available to order. Add to View Price |
|||
|
#3
FAN ASSY
17800-38A03
|
$456.91 | ||
|
Unavailable |
|||
|
#4
FAN
17820-38A00
|
$58.48 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW
02112-04063
Superseded by 02112-0406B
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHROUD
17770-39A00
|
$83.27 | ||
|
Unavailable |
|||
|
#7
DUCT, FAN
17150-38A00
|
$46.17 | ||
|
Unavailable |
|||
|
#8
SCREW
02112-75103
Superseded by 02112-7510A
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRACKET, RADIATOR FAN
17808-38A00
|
$4.94 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT (10X135)
09100-10277
|
$4.39 | ||
|
Unavailable |
|||
|
#11
SPACER
17782-38A01
|
$11.59 | ||
|
Unavailable |
|||
|
#12
SPACER
17783-38A00
|
$2.54 | ||
|
Unavailable |
|||
|
#13
CUSHION
09320-15008
|
$4.81 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
08319-3110B
|
$4.06 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
09116-06213
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPACER (6.5X9X8)
09180-06261
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#17
CUSHION
09320-08037
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#18
SWITCH, RADIATOR FAN
17680-24A02
|
$119.93 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOSE, RADIATOR IN
17851-39A00
|
$19.25 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOSE, RADIATOR OUT
17858-38820
|
$18.76 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLAMP
09402-32511
|
$13.42 | ||
|
Available to order. Add to View Price |
|||
|
#22
COVER, RADIATOR (RED)
17761-39A01-YHL
|
$115.02 | ||
|
Unavailable |
|||
|
#22
COVER, RADIATOR (SILVER)
17761-39A01-YDV
|
$107.79 | ||
|
Unavailable |
|||
|
#22
COVER, RADIATOR (BLACK)
17761-39A01-YAY
|
$120.78 | ||
|
Unavailable |
|||
|
#22
COVER, RADIATOR (WHITE)
17761-39A01-YC3
|
$123.25 | ||
|
Unavailable |
|||
|
#22
COVER, RADITOR (SILVER)
17761-39A01-YMD
|
$120.78 | ||
|
Unavailable |
|||
|
#22
COVER, RADITOR (BLUE)
17761-39A01-YRB
|
$123.25 | ||
|
Unavailable |
|||
|
#22
COVER SET, RADIATOR (CHROME)
17700-39810
|
$99.95 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW (6X10)
09139-06076
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER (6.5X14X2)
09160-06126
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#25
.NUT
09148-06015
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#26
BUMPER, RADIATOR
17790-39A00
|
$49.76 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT (5X8)
09119-05014
|
$2.36 | ||
|
Unavailable |
|||
|
#28
.NUT
08310-0005B
Superseded by 08310-0005A
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#29
CUSHION, RADIATOR BUMPER
17795-38A00
|
$3.51 | ||
|
Unavailable |
|||
|
#30
TANK, RESERVE
17911-38A00
|
$21.35 | ||
|
Available to order. Add to View Price |
|||
|
#31
HOSE, INLET
17981-38A01
|
$7.96 | ||
|
Available to order. Add to View Price |
|||
|
#32
HOSE, OUTLET
17982-38810
|
$18.76 | ||
|
Available to order. Add to View Price |
|||
|
#33
CLIP
09401-08411
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#34
CLAMP
09407-14403
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
