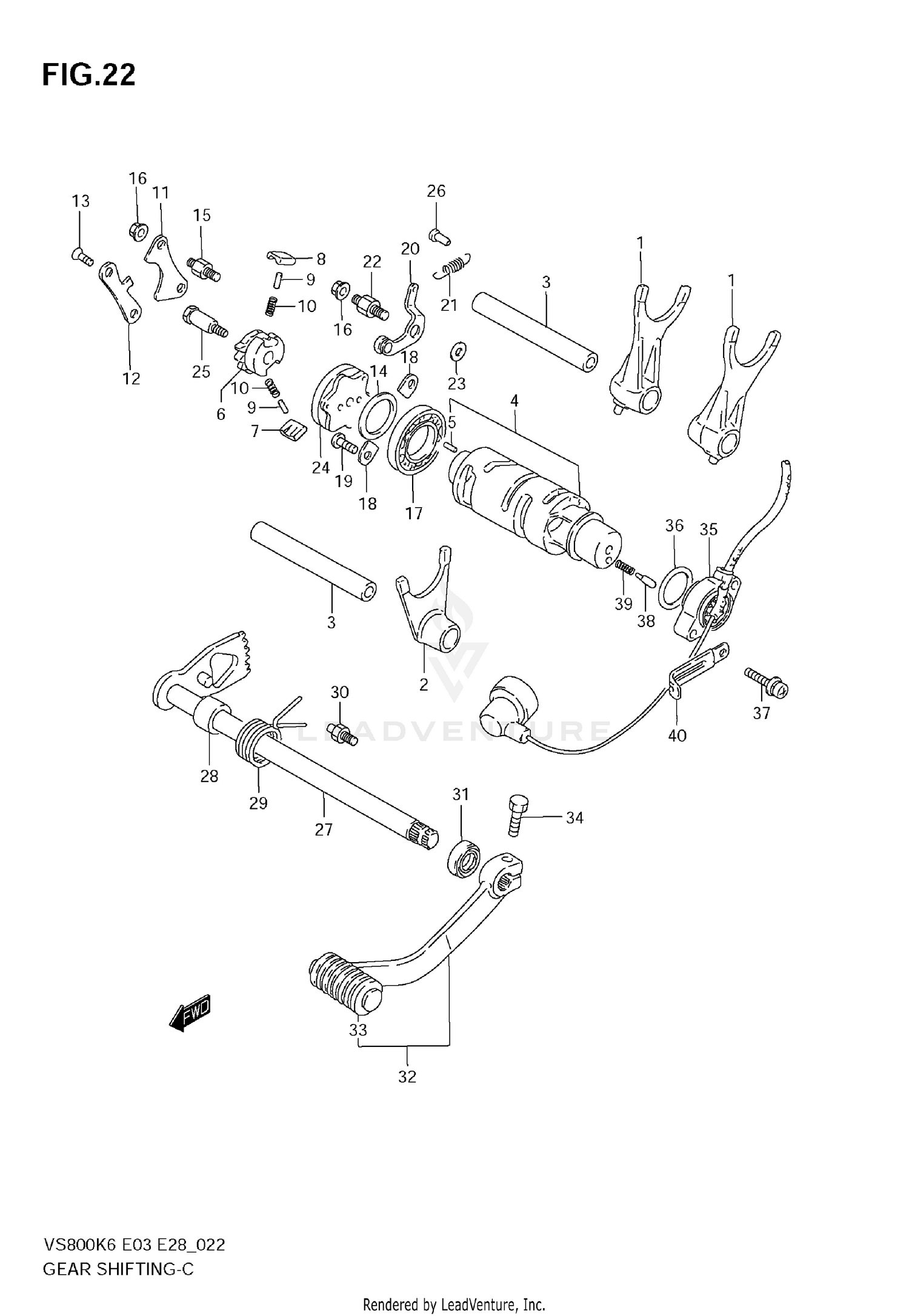

Gear Shifting Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK, GEAR SHIFTING NO.1
25211-38A02
|
$89.74 | ||
|
Available to order. Add to View Price |
|||
|
#2
FORK, GEAR SHIFTING NO.2
25221-38A01
|
$82.57 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHAFT, SUB T/M GEAR SHIFT
25411-38A00
|
$31.60 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAM, GEAR SHIFTING
25310-38A03
|
$170.40 | ||
|
Unavailable |
|||
|
#5
.PIN
04221-04089
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR,GEAR SHIFT CAM DRIVEN (N
25322-31310
|
$29.10 | ||
|
Available to order. Add to View Price |
|||
|
#7
PAWL,GEAR SHIFT,NO.1
25323-34201
|
$8.92 | ||
|
Available to order. Add to View Price |
|||
|
#8
PAWL,GEAR SHIFT,NO.2
25324-34201
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN
09261-05003
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING
09440-04003
|
$1.73 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
LIFTER, PAWL
25331-38A00
|
$7.95 | ||
|
Available to order. Add to View Price |
|||
|
#12
GUIDE, CAM
25341-38A00
|
$7.06 | ||
|
Unavailable |
|||
|
#13
SCREW (6X12)
09126-06011
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER (25X32X3)
09160-25059
|
$6.97 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOSS
25332-38A10
|
$4.08 | ||
|
Unavailable |
|||
|
#16
NUT
08316-1006A
|
$2.64 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BEARING (25X47X8)
09262-25006
|
$31.10 | ||
|
Available to order. Add to View Price |
|||
|
#18
RETAINER, BEARING
24741-21A00
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW (6X12)
09125-06110
|
$2.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
STOPPER, CAM
25350-38A00
|
$10.31 | ||
|
Unavailable |
|||
|
#21
SPRING
09443-09027
|
$4.14 | ||
|
Available to order. Add to View Price |
|||
|
#22
SUPPORT
25355-38A10
|
$5.36 | ||
|
Unavailable |
|||
|
#23
WASHER
08211-06141
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#24
PLATE, STOPPER
25380-38A02
|
$17.62 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIN
25312-38A00
|
$7.76 | ||
|
Available to order. Add to View Price |
|||
|
#26
HOOK (4X12.5)
09223-04001
|
$1.77 | ||
|
Available to order. Add to View Price |
|||
|
#26
HOOK (4X13)
09223-04004
|
$1.23 | ||
|
Unavailable |
|||
|
#27
SHAFT, GEAR SHIFTING
25510-38A00
|
$115.84 | ||
|
Available to order. Add to View Price |
|||
|
#28
SPACER (12X20X15.3)
09180-12068
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#29
SPRING
09444-26013
|
$3.83 | ||
|
Available to order. Add to View Price |
|||
|
#30
STOPPER, ARM
25671-01011
|
$5.53 | ||
|
Available to order. Add to View Price |
|||
|
#31
SEAL,OIL (12X22X9)
09285-12002
Superseded by 09285-12006
|
$7.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
LEVER ASSY, GEAR SHIFTING
25600-38A00
|
$65.45 | ||
|
Available to order. Add to View Price |
|||
|
#33
COVER
25652-20C00
|
$6.72 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT
01500-0620A
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#35
BODY, SWITCH
37720-38A40
|
$74.91 | ||
|
Available to order. Add to View Price |
|||
|
#36
O RING (D:2.4,ID:26.2)
09280-26005
|
$2.79 | ||
|
Available to order. Add to View Price |
|||
|
#37
SCREW
02112-7520A
|
$3.06 | ||
|
Available to order. Add to View Price |
|||
|
#38
CONTACT, SWITCH
09209-05011
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#39
SPRING
09440-04010
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#40
CLAMP (L:45)
09404-06429
|
$2.20 | ||
|
Unavailable |
|||
|
#40
CLAMP(L:80)
09404-06433
Superseded by 09404-06036
|
$2.12 | ||
|
Available to order. Add to View Price |
|||
