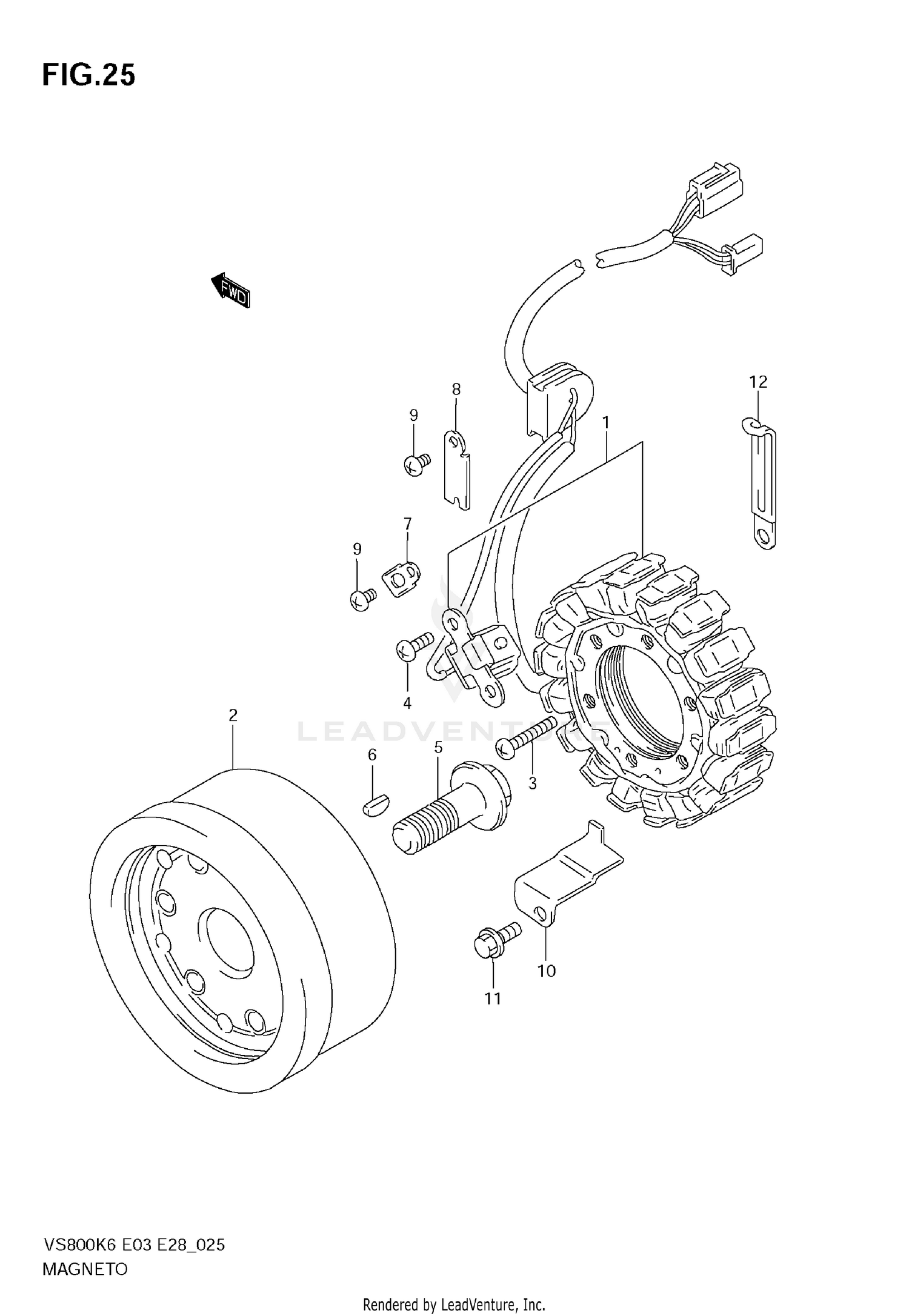

Magneto Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STATOR
32101-45C00
|
$551.58 | ||
|
Available to order. Add to View Price |
|||
|
#2
ROTOR
32102-38A30
|
$384.28 | ||
|
Unavailable |
|||
|
#3
SCREW
01547-0630B
|
$3.28 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
BOLT
02112-0510B
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT (14X43)
09103-14001
|
$12.42 | ||
|
Available to order. Add to View Price |
|||
|
#6
KEY
09420-04008
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP, NO.1
31497-45000
|
$2.08 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP, NO.2
32371-38A10
|
$1.20 | ||
|
Unavailable |
|||
|
#9
BOLT
02112-0510B
|
$2.33 | ||
|
Unavailable |
|||
|
#10
CLAMP, NO.3
32371-45C00
|
$4.96 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, NO.3
01547-0610B
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP (L:80)
09404-08419
Superseded by 09404-08422
|
$2.79 | ||
|
Available to order. Add to View Price |
|||
