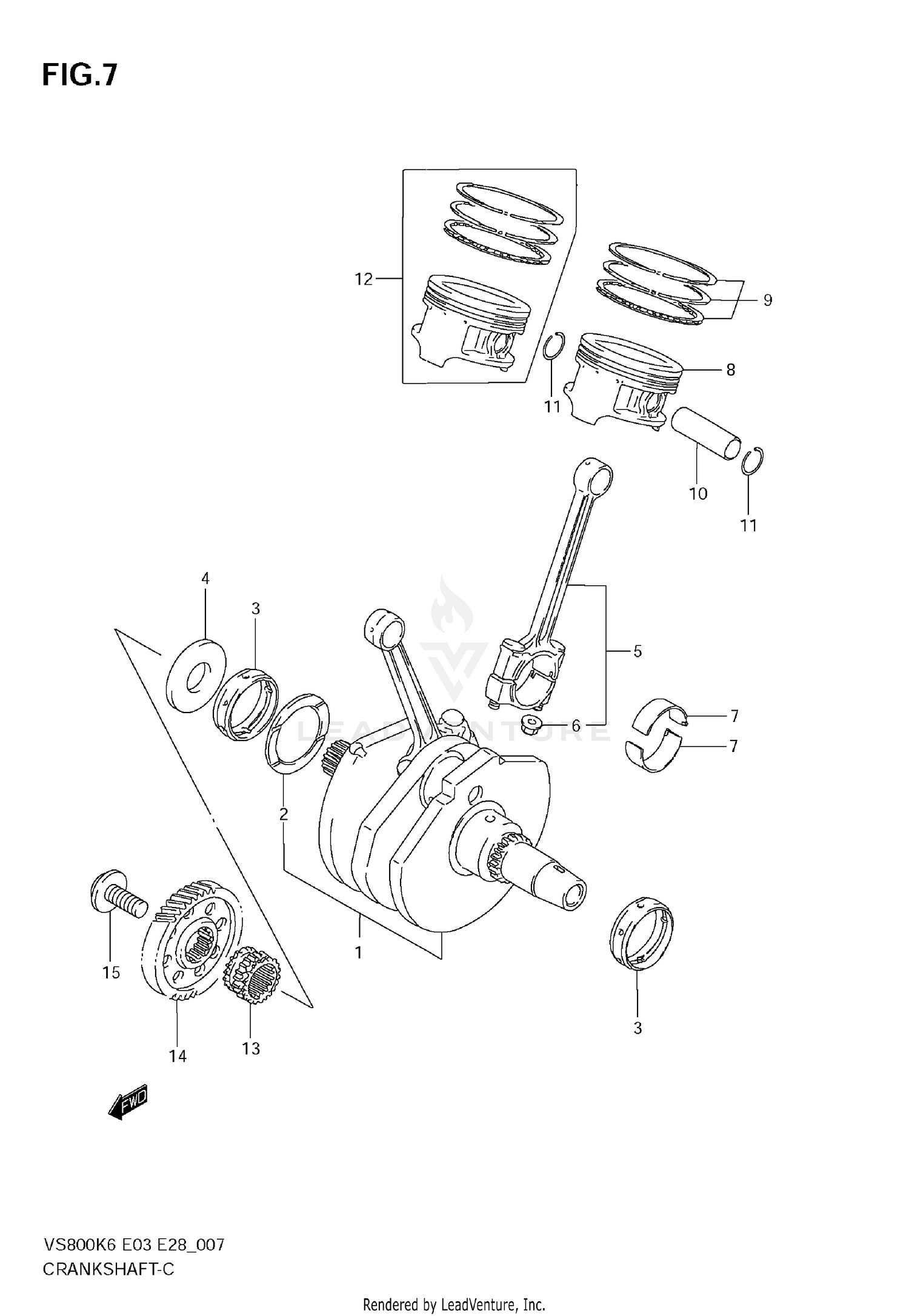

Crankshaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT SET
12000-38810
|
$1,772.74 | ||
|
Available to order. Add to View Price |
|||
|
#2
.WASHER (T:1.94)
09160-48001
|
$29.92 | ||
|
Available to order. Add to View Price |
|||
|
#2
.WASHER (T:1.96)
09160-48002
|
$19.70 | ||
|
Unavailable |
|||
|
#2
.WASHER (T:1.99)
09160-48003
|
$26.92 | ||
|
Available to order. Add to View Price |
|||
|
#2
.WASHER (T:2.01)
09160-48004
|
$20.10 | ||
|
Unavailable |
|||
|
#2
.WASHER (T:2.04)
09160-48005
|
$19.70 | ||
|
Unavailable |
|||
|
#2
.WASHER (T:2.06)
09160-48006
|
$31.88 | ||
|
Available to order. Add to View Price |
|||
|
#2
.WASHER (T:2.09)
09160-48007
|
$26.26 | ||
|
Available to order. Add to View Price |
|||
|
#2
.WASHER (T:2.11)
09160-48008
|
$24.15 | ||
|
Available to order. Add to View Price |
|||
|
#2
.WASHER (T:2.14)
09160-48009
|
$20.10 | ||
|
Unavailable |
|||
|
#2
.WASHER (T:2.16)
09160-48010
|
$31.88 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING, CRANKSHAFT
12229-38A00
|
$26.87 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, CRANK THRUST
12652-38A00
|
$88.27 | ||
|
Available to order. Add to View Price |
|||
|
#5
ROD ASSY, CONNECTING
12160-45C10
Superseded by 12160-45C30
|
$199.98 | ||
|
Available to order. Add to View Price |
|||
|
#5
ROD ASSY, CONNECTING
12160-45C30
|
$199.98 | ||
|
Unavailable |
|||
|
#6
NUT
09159-09001
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING, CRANK PIN (GREEN)
12164-38E00-0A0
|
$14.88 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING, CRANK PIN (BLACK)
12164-38E00-0B0
|
$14.62 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING, CRANK PIN (BROWN)
12164-38E00-0C0
|
$14.62 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING, CRANK PIN (YELLOW)
12164-38E00-0D0
|
$15.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING, CRANK PIN (BLUE)
12164-38E00-0E0
|
$15.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
PISTON
12111-45C00-0F0
|
$175.03 | ||
|
Available to order. Add to View Price |
|||
|
#9
RING SET, PISTON
12140-45C10
|
$55.52 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN,PISTON
12151-24A00
|
$27.22 | ||
|
Available to order. Add to View Price |
|||
|
#11
CIRCLIP
09381-20004
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
PISTON SET (OS:0.5)
12100-45C00-050
|
$209.04 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPROCKET,CAM CHAIN DRIVE RH (
12731-38A00
|
$63.81 | ||
|
Available to order. Add to View Price |
|||
|
#14
GEAR, PRIMARY DRIVE
21111-38A00
|
$154.32 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT (12X28)
09103-12013
|
$9.28 | ||
|
Available to order. Add to View Price |
|||
