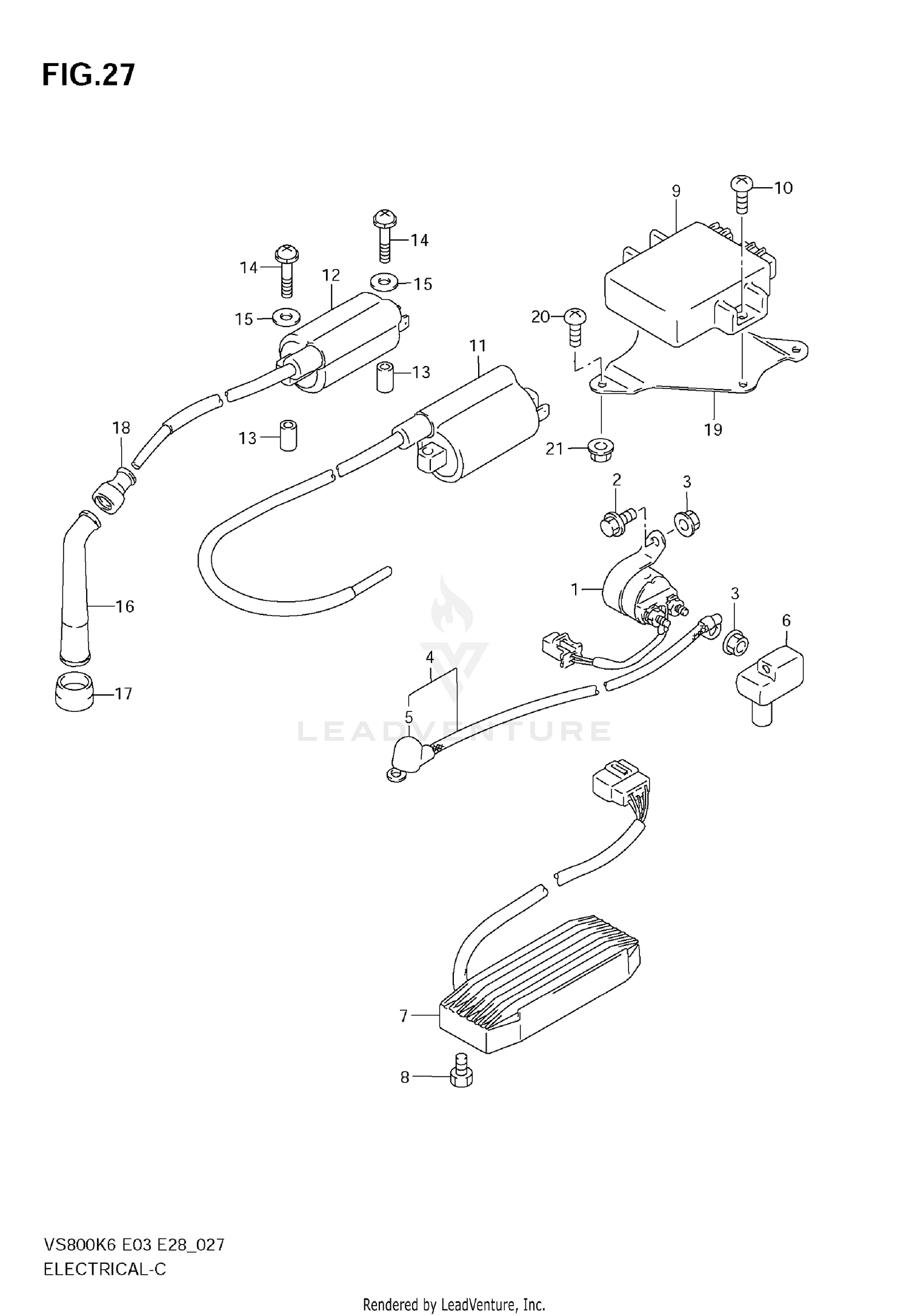

Electrical Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RELAY ASSY,STARTING MOTOR
31800-15501
|
$120.80 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
01550-0610B
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT
08361-3506A
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#4
LEAD WIRE, STARTING MOTOR
33850-38A00
|
$26.37 | ||
|
Available to order. Add to View Price |
|||
|
#5
.CAP, STARTER MOTOR
31861-48B10
|
$7.08 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP, STARTER RELAY
31861-38A00
|
$8.51 | ||
|
Available to order. Add to View Price |
|||
|
#7
RECTIFIER ASSY
32800-12E01
|
$342.89 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW
01500-0610B
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#9
IGNITER UNIT
32900-38A31
|
$1,144.90 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW (6X12)
02142-0612B
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#11
COIL, IGNITION (CORD L:300)
33410-38A20
|
$176.66 | ||
|
Available to order. Add to View Price |
|||
|
#12
COIL, IGNITION (CORD L:520)
33420-38A20
|
$175.03 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER (6.4X10X19)
09180-06144
|
$5.18 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, IGNITION COIL
09137-05008
|
$1.94 | ||
|
Unavailable |
|||
|
#15
WASHER
08322-0105B
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER
08322-0105B
|
$2.72 | ||
|
Unavailable |
|||
|
#16
CAP, SPARK PLUG
33510-11410
|
$32.06 | ||
|
Available to order. Add to View Price |
|||
|
#17
SEAL,SPARK PLUG
33541-38210
|
$5.94 | ||
|
Available to order. Add to View Price |
|||
|
#18
SEAL,HIGH TENSION CORD
33542-38B00
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLATE, IGNITER FITTING
32910-38A10
|
$7.00 | ||
|
Unavailable |
|||
|
#20
SCREW
02112-3612B
|
|||
|
Unavailable |
|||
|
#21
NUT
08316-2006B
|
|||
|
Unavailable |
|||
