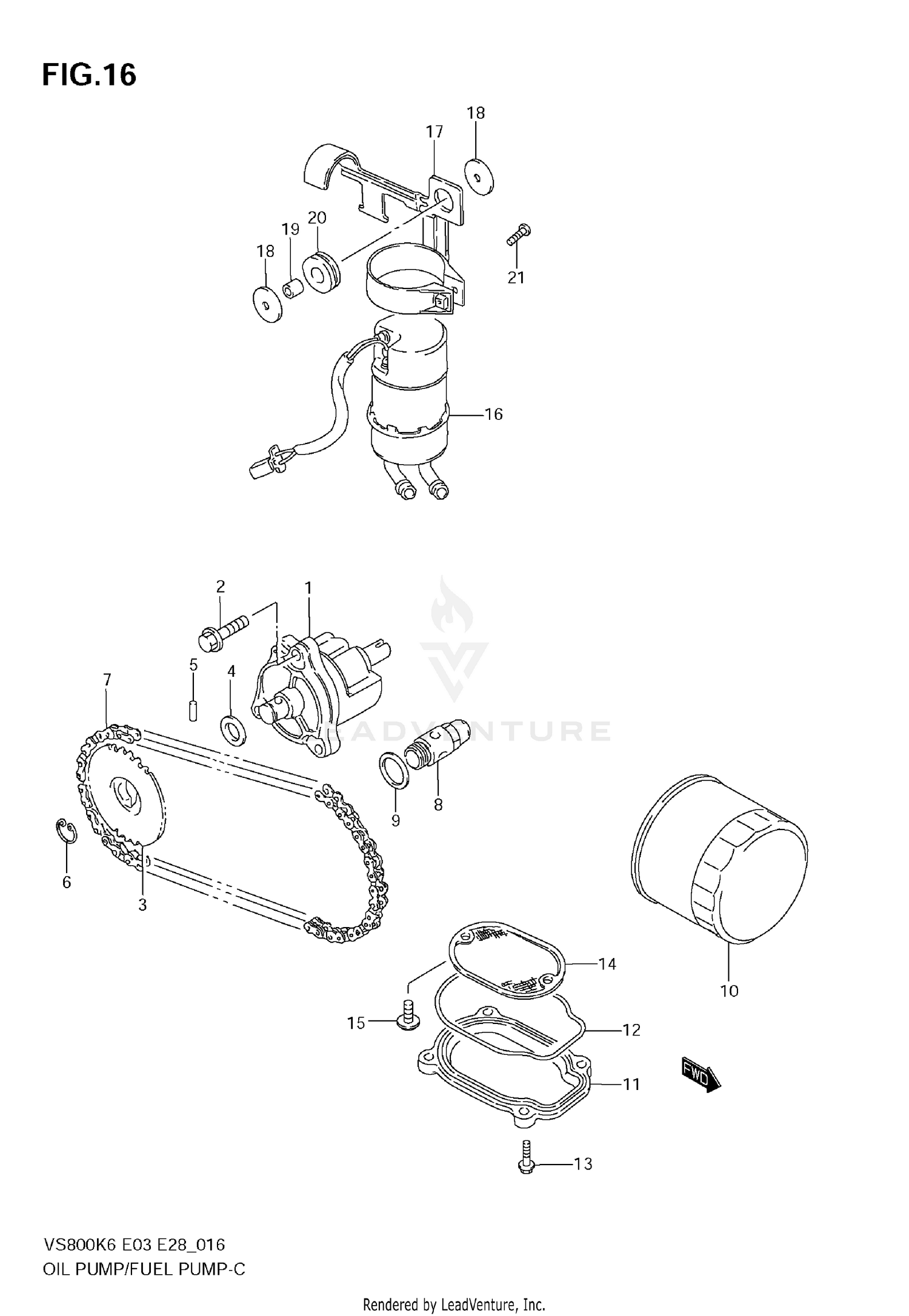

Oil Pump - Fuel Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP ASSY, OIL
16400-38A01
|
$240.64 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
01550-0625B
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPROCKET, OIL PUMP DRIVEN
16331-38A10
|
$35.94 | ||
|
Unavailable |
|||
|
#4
WASHER
09181-12158
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN
09261-05006
|
$1.77 | ||
|
Available to order. Add to View Price |
|||
|
#6
CIRCLIP
08331-31126
Superseded by 08331-3112A
|
$2.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
CHAIN, OIL PUMP DRIVE
16310-38A00
|
$36.66 | ||
|
Available to order. Add to View Price |
|||
|
#8
VALVE ASSY,OIL RELIEF
16440-17C20
|
$68.56 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET
09168-16002
|
$2.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
FILTER ASSY,ENGINE OIL
16510-03G00-X07
Superseded by 16510-07J10
|
$16.18 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
CAP, OIL STRAINER
16523-38A00
|
$34.25 | ||
|
Available to order. Add to View Price |
|||
|
#12
O RING,OIL STRAINER CAP
16528-38A00
|
$12.71 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
01550-06203
Superseded by 01550-0620A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
01550-0620A
|
$2.37 | ||
|
Unavailable |
|||
|
#14
STRAINER, OIL
16520-38A00
|
$8.78 | ||
|
Available to order. Add to View Price |
|||
|
#14
STRAINER, OIL
16520-38A10
|
$9.30 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW
02112-75123
Superseded by 02112-7512A
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW
02112-7512A
|
$2.95 | ||
|
Unavailable |
|||
|
#16
PUMP ASSY,FUEL
15100-38A10
Superseded by 15100-38A11
|
$264.08 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRACKET, FUEL PUMP
15110-38A10
|
$16.66 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER
09169-06016
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPACER
09180-06082
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#20
CUSHION
09320-10014
|
$3.54 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW
02142-0420B
|
$1.82 | ||
|
Unavailable |
|||
