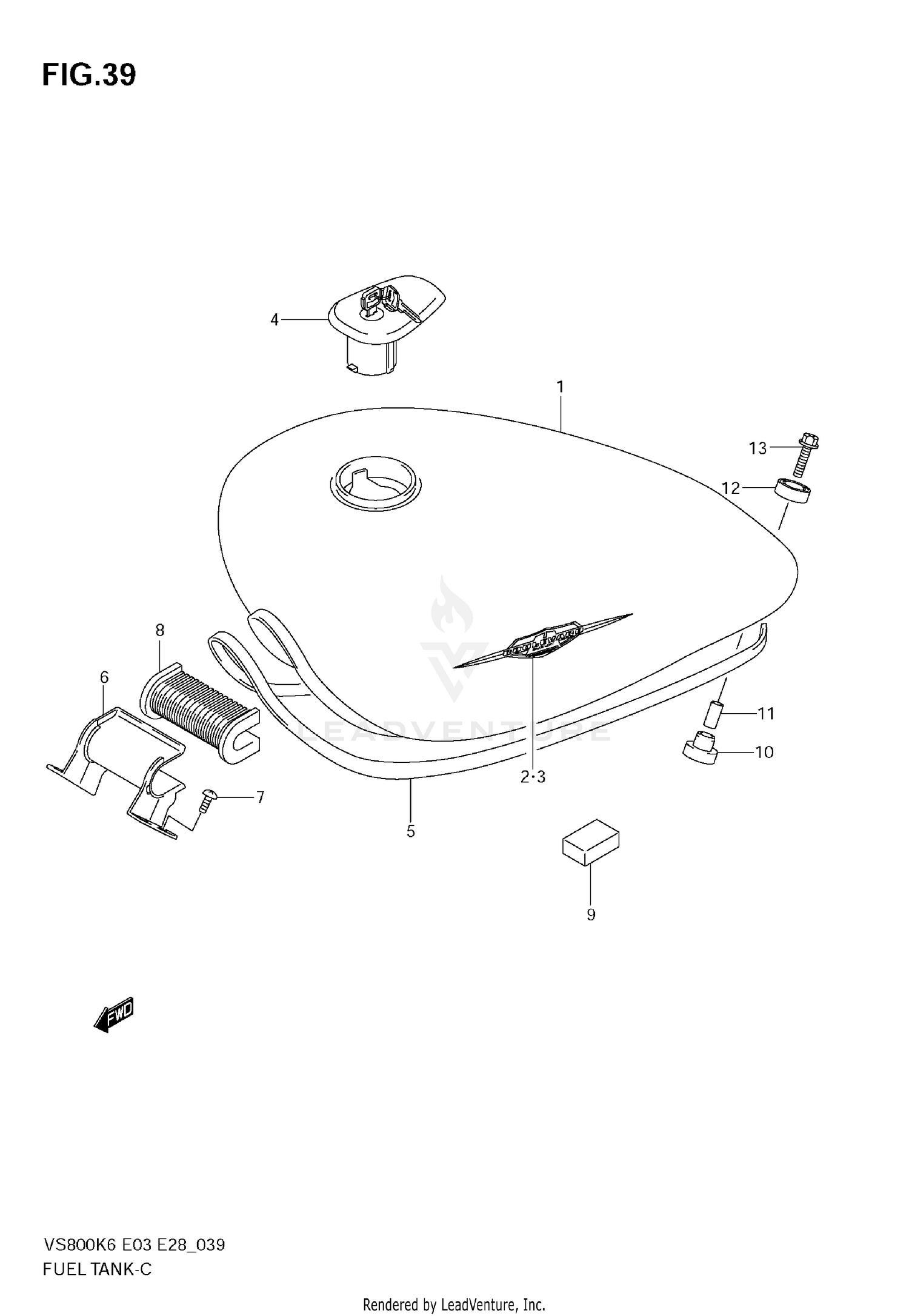

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TANK ASSY, FUEL (BLACK)
44100-39AE0-YAY
|
$745.75 | ||
|
Unavailable |
|||
|
#1
TANK ASSY, FUEL (SILVER)
44100-39AE0-YDV
|
$730.83 | ||
|
Unavailable |
|||
|
#1
TANK ASSY, FUEL (RED)
44100-39AE0-YHL
|
$695.91 | ||
|
Unavailable |
|||
|
#1
TANK ASSY, FUEL (WHITE)
44100-39AE0-YC3
|
$695.91 | ||
|
Unavailable |
|||
|
#1
TANK ASSY, FUEL (SILVER)
44100-39AE0-YMD
|
$695.91 | ||
|
Unavailable |
|||
|
#1
TANK ASSY, FUEL (BLUE)
44100-39AE0-YRB
|
$745.75 | ||
|
Unavailable |
|||
|
#1
TANK ASSY, FUEL (BLACK)
44100-39AF0-YAY
|
$561.78 | ||
|
Available to order. Add to View Price |
|||
|
#1
TANK ASSY, FUEL (SILVER)
44100-39AF0-YDV
|
$745.75 | ||
|
Unavailable |
|||
|
#1
TANK ASSY, FUEL (RED)
44100-39AF0-YHL
|
$710.25 | ||
|
Unavailable |
|||
|
#1
TANK ASSY, FUEL (WHITE)
44100-39AF0-YC3
|
$730.83 | ||
|
Unavailable |
|||
|
#1
TANK ASSY, FUEL (SILVER)
44100-39AF0-YMD
|
$730.83 | ||
|
Unavailable |
|||
|
#1
TANK ASSY, FUEL (BLUE)
44100-39AF0-YRB
|
|||
|
Unavailable |
|||
|
#2
EMBLEM, RH
68111-39A10
|
$50.92 | ||
|
Unavailable |
|||
|
#3
EMBLEM, LH
68121-39A10
|
$50.92 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP SET, FUEL TANK
44200-38820
|
$116.47 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP SET,FUEL TA
44200-38850
Superseded by 44200-38852
|
$119.02 | ||
|
Unavailable |
|||
|
#5
MOLDING (L:300)
68241-04X50-00B
|
$34.69 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET, FRONT (BLACK)
44250-38A10-019
|
$34.58 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, BRACKET
02112-7616B
|
|||
|
Unavailable |
|||
|
#8
CUSHION, FRONT
44511-38A01
|
$12.54 | ||
|
Available to order. Add to View Price |
|||
|
#9
CUSHION, SIDE
56314-48B10
|
$9.85 | ||
|
Available to order. Add to View Price |
|||
|
#10
CUSHION (9X24X18)
09320-10020
Superseded by 09320-10071
|
$3.06 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
SPACER
09180-06273
|
$3.72 | ||
|
Available to order. Add to View Price |
|||
|
#12
CUSHION, REAR UPPER
09320-14013
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
09136-06095
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
