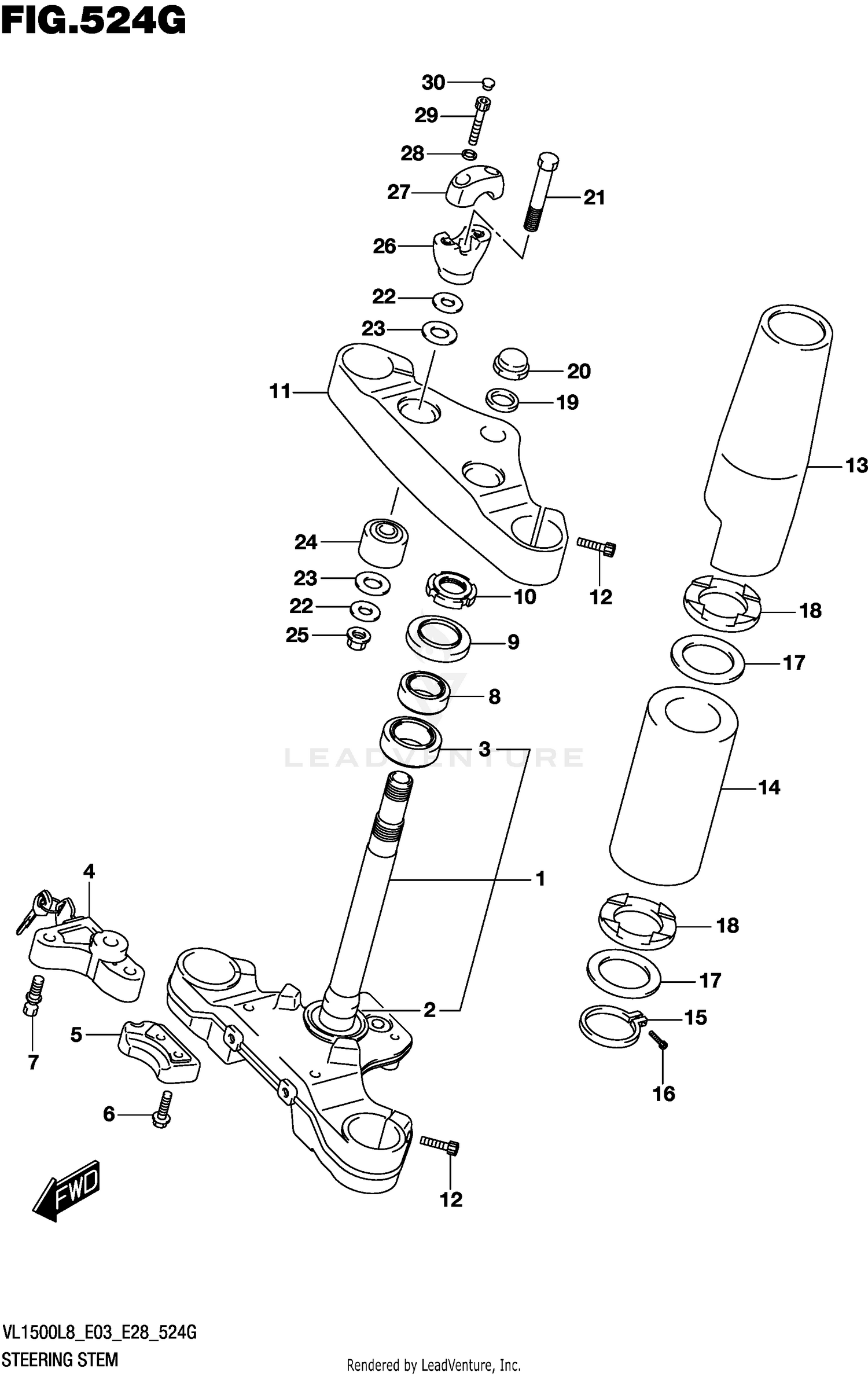

Steering Stem (vl1500tl8 E33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STEM
51410-06J00
|
$599.19 | ||
|
Available to order. Add to View Price |
|||
|
#2
.SEAL,STEERING LOWER (30.1X56
51644-12C00
|
$11.67 | ||
|
Available to order. Add to View Price |
|||
|
#3
.BEARING (30X55X17)
09265-30020
|
$54.86 | ||
|
Available to order. Add to View Price |
|||
|
#4
LOCK SET
51900-22820
|
$148.34 | ||
|
Unavailable |
|||
|
#5
BRACKET
51921-40H00
|
$124.72 | ||
|
Unavailable |
|||
|
#6
BOLT (8X30)
09103-08197
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW,STEERING LOCK
51925-48G00
|
$8.70 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING (25X47X15)
09265-25038
|
$55.48 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAL,DUST
51643-40502
Superseded by 51643-40503
|
$7.81 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT,STEERING STEM
51631-31F00
|
$21.47 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET
51311-06J00
|
|||
|
Unavailable |
|||
|
#12
BOLT
51321-10F00
Superseded by 07130-08307
|
$4.81 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER
51531-06J00
|
$151.95 | ||
|
Available to order. Add to View Price |
|||
|
#14
CASE
51464-06J00
|
$169.55 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPACER
51465-06J00
|
$79.87 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
51466-10F00
|
$8.15 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER
51467-06J00
|
$7.60 | ||
|
Available to order. Add to View Price |
|||
|
#18
SEAT
51468-06J00
|
$20.16 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER (22.5X32X1.6)
51356-24B01
|
$6.83 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, STEM
51353-38A01
Superseded by 51353-24B00
|
$33.13 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT
51226-10F70
|
$48.42 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER
51354-41F20
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#23
SEAT,RUBBER
56245-41F20
|
$8.78 | ||
|
Available to order. Add to View Price |
|||
|
#24
DAMPER,RUBBER
56240-41F20
|
$44.15 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT
56246-41F20
|
$13.61 | ||
|
Available to order. Add to View Price |
|||
|
#26
HOLDER
56221-10F70
|
$115.20 | ||
|
Available to order. Add to View Price |
|||
|
#27
HOLDER,HANDLE,UPPER
56211-41F20
|
$84.16 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER
09164-08015
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT
51321-10F00
Superseded by 07130-08307
|
$4.81 | ||
|
Unavailable |
|||
|
#30
CAP (OD:11)
09250-06011
|
$3.06 | ||
|
Available to order. Add to View Price |
|||
