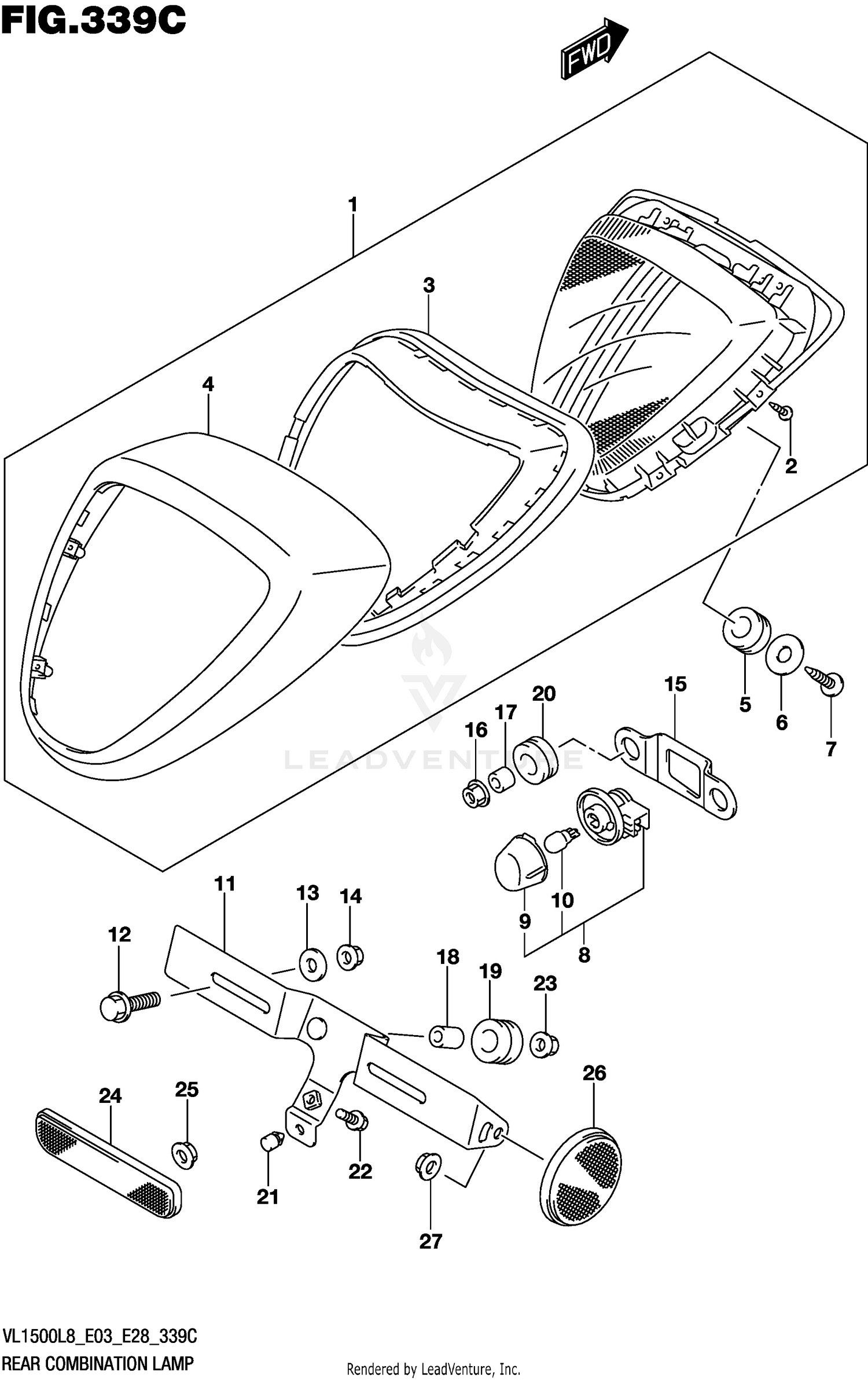

Rear Combination Lamp (vl1500bl8 E33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP ASSY
35710-06JB0
|
$971.30 | ||
|
Available to order. Add to View Price |
|||
|
#2
.SCREW (3X12)
35623-41400
|
$2.07 | ||
|
Unavailable |
|||
|
#3
.RUBBER
35713-06J00
|
$52.73 | ||
|
Available to order. Add to View Price |
|||
|
#4
.COVER
35717-06JB0
|
$368.07 | ||
|
Available to order. Add to View Price |
|||
|
#5
CUSHION
09320-10067
|
$3.96 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER (5.5X20X1.2)
09160-05501
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW
03541-0512A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#8
LAMP ASSY,LICENSE
35910-14F01
|
$34.11 | ||
|
Available to order. Add to View Price |
|||
|
#9
.LENS
35912-14F11
|
$9.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
.BULB (12V5W)
09471-12216
|
$6.73 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET
35927-06J30
|
$42.57 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT (6X16)
09116-06168
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER (6.5X20X1.2)
09160-06077
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT (6X12)
08316-1006A
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BRACKET,LICENSE LAMP
35928-43H00
|
$12.95 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
09159-05049
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPACER (5.5X9.5X10.5)
09180-05066
|
|||
|
Unavailable |
|||
|
#18
SPACER (6.5X10X12)
09180-06290
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#19
CUSHION
09320-10051
|
$3.92 | ||
|
Available to order. Add to View Price |
|||
|
#20
CUSHION
09320-10054
Superseded by 09320-10073
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#21
CUSHION,LICENSE PLATE
09321-06013
Superseded by 09321-06036
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT (6X25)
01550-0625A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT (6X12)
08316-1006A
|
$2.72 | ||
|
Unavailable |
|||
|
#24
REFLECTOR ASSY,REAR
35970-05H00
|
$33.12 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT
08316-1005A
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#26
REFLECTOR ASSY,RR SIDE
35970-14A20
|
$20.07 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT
08316-1005A
|
$2.72 | ||
|
Unavailable |
|||
