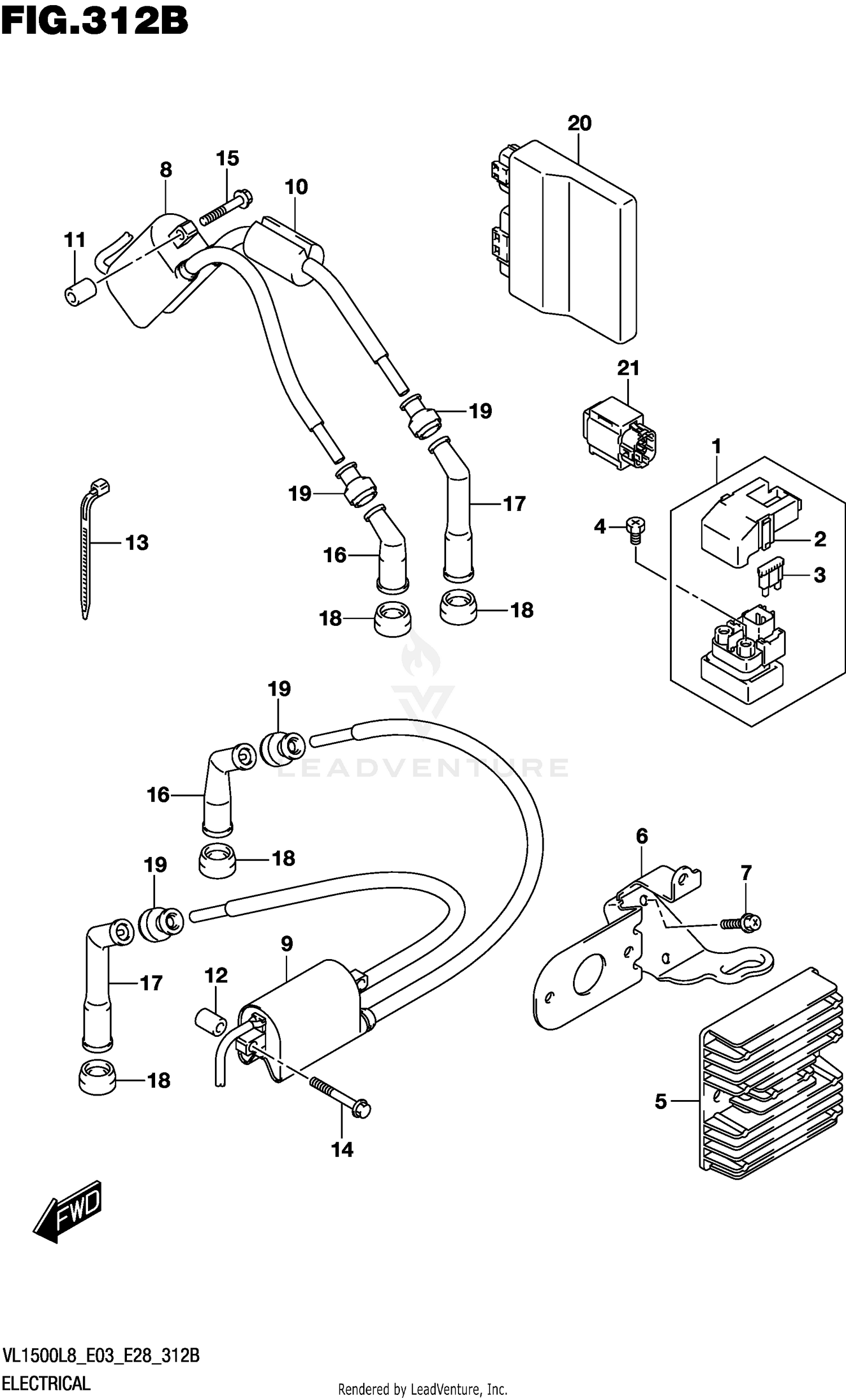

Electrical (vl1500bl8 E28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RELAY ASSY,STARTING MOTOR
31800-06G00
Superseded by 31800-06G02
|
$86.90 | ||
|
Available to order. Add to View Price |
|||
|
#2
.COVER
31861-47E00
|
$18.25 | ||
|
Available to order. Add to View Price |
|||
|
#3
.FUSE (30A)
09481-30101
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW (6X8)
09128-06013
|
$1.56 | ||
|
Available to order. Add to View Price |
|||
|
#5
RECTIFIER ASSY
32800-10G30
|
$363.52 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET
32830-40H10
|
$32.65 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW (6X16)
02162-0616A
Superseded by 02162-0616B
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#8
COIL ASSY, IGNITION
33410-40H00
Superseded by 33410-40H01
|
$140.83 | ||
|
Available to order. Add to View Price |
|||
|
#9
COIL ASSY
33420-40H11
|
$139.62 | ||
|
Available to order. Add to View Price |
|||
|
#10
CUSHION,HIGH TENSION CORD (58
33442-41F00
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPACER (6.4X10X22)
09180-06178
|
$4.91 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPACER (6.2X12X16)
09180-06198
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP (L:165)
09407-18402
|
$2.77 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BOLT
01547-0635A
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
01547-0640A
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#16
CAP,SPARK PLUG (SIDE)
33510-38B00
|
$35.81 | ||
|
Available to order. Add to View Price |
|||
|
#17
CAP
33510-45010
|
$33.18 | ||
|
Available to order. Add to View Price |
|||
|
#18
SEAL, SPARK PLUG
33541-47D00
|
$10.11 | ||
|
Available to order. Add to View Price |
|||
|
#19
SEAL, HIGH TENSION CORD
33542-48H01
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#20
CONTROL UNIT
32920-06J60
|
$1,848.61 | ||
|
Available to order. Add to View Price |
|||
|
#21
SENSOR ASSY,FUEL CUT
33960-06G10
|
$116.08 | ||
|
Available to order. Add to View Price |
|||
