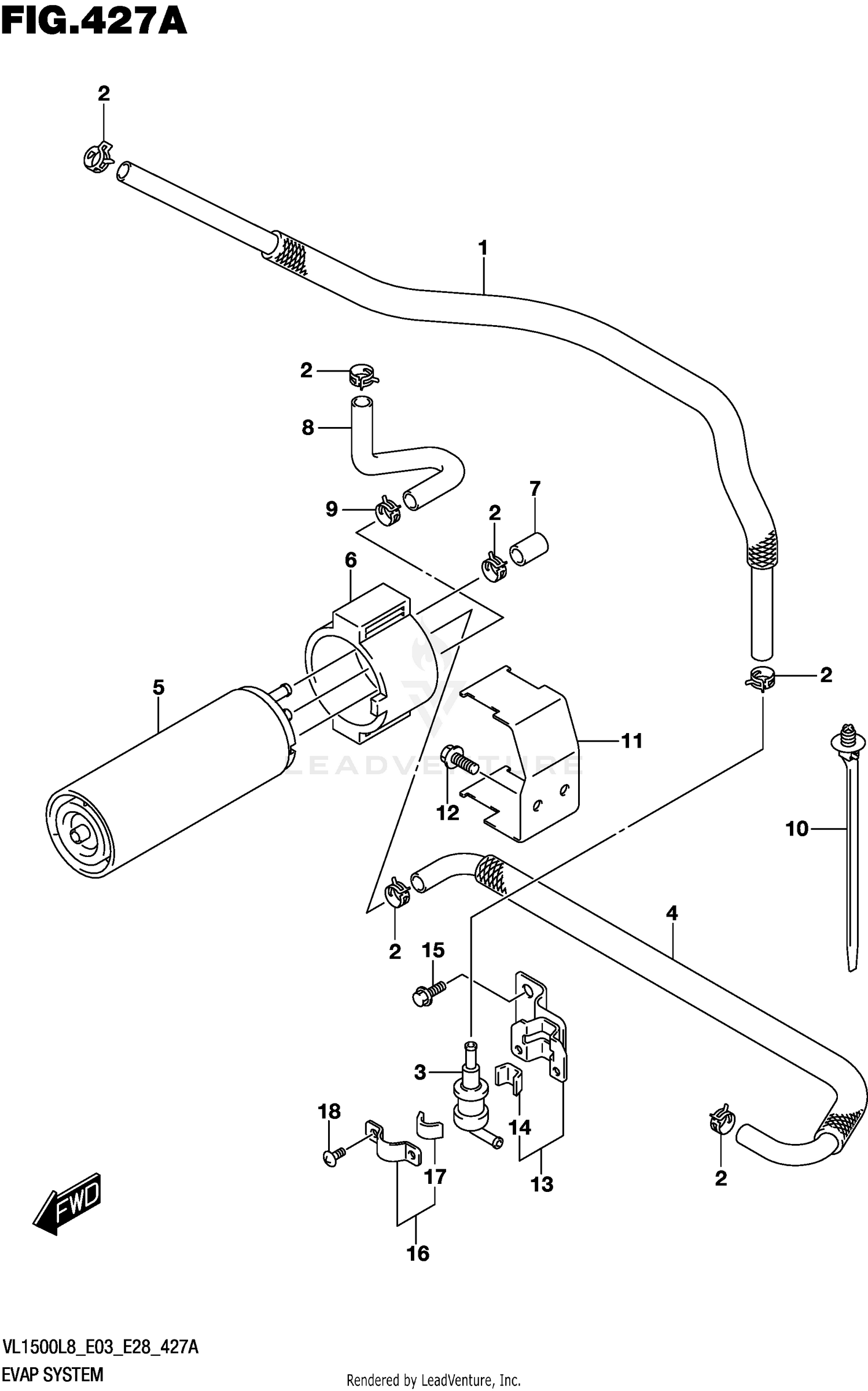

Evap System (vl1500bl8 E33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOSE
44434-40H00
|
$43.99 | ||
|
Unavailable |
|||
|
#2
CLIP (ID:11)
09401-11413
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#3
VALVE,FUEL TANK BREATHER
44240-17C00
|
$73.01 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOSE
13681-06J00
|
$40.07 | ||
|
Available to order. Add to View Price |
|||
|
#5
CANISTER ASSY,CHARCOAL
17210-15H00
|
$318.00 | ||
|
Available to order. Add to View Price |
|||
|
#6
CUSHION
17211-06J00
|
$16.37 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP (OD:11.5)
09251-07003
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOSE
13682-06J00
|
$21.56 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLIP (ID:11.1)
09401-12404
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP (L:154)
09407-17403
|
$6.46 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET
17221-06J00
|
$8.70 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
01550-0612A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRACKET
44880-40H00
|
$22.27 | ||
|
Unavailable |
|||
|
#14
CUSHION (10X30X2)
44894-24A00
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
01547-0610A
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLATE,FUEL TANK BREATHER,NO.2
44892-24A00
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#17
CUSHION (10X30X2)
44894-24A00
|
$2.18 | ||
|
Unavailable |
|||
|
#18
SCREW
02142-0408A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
