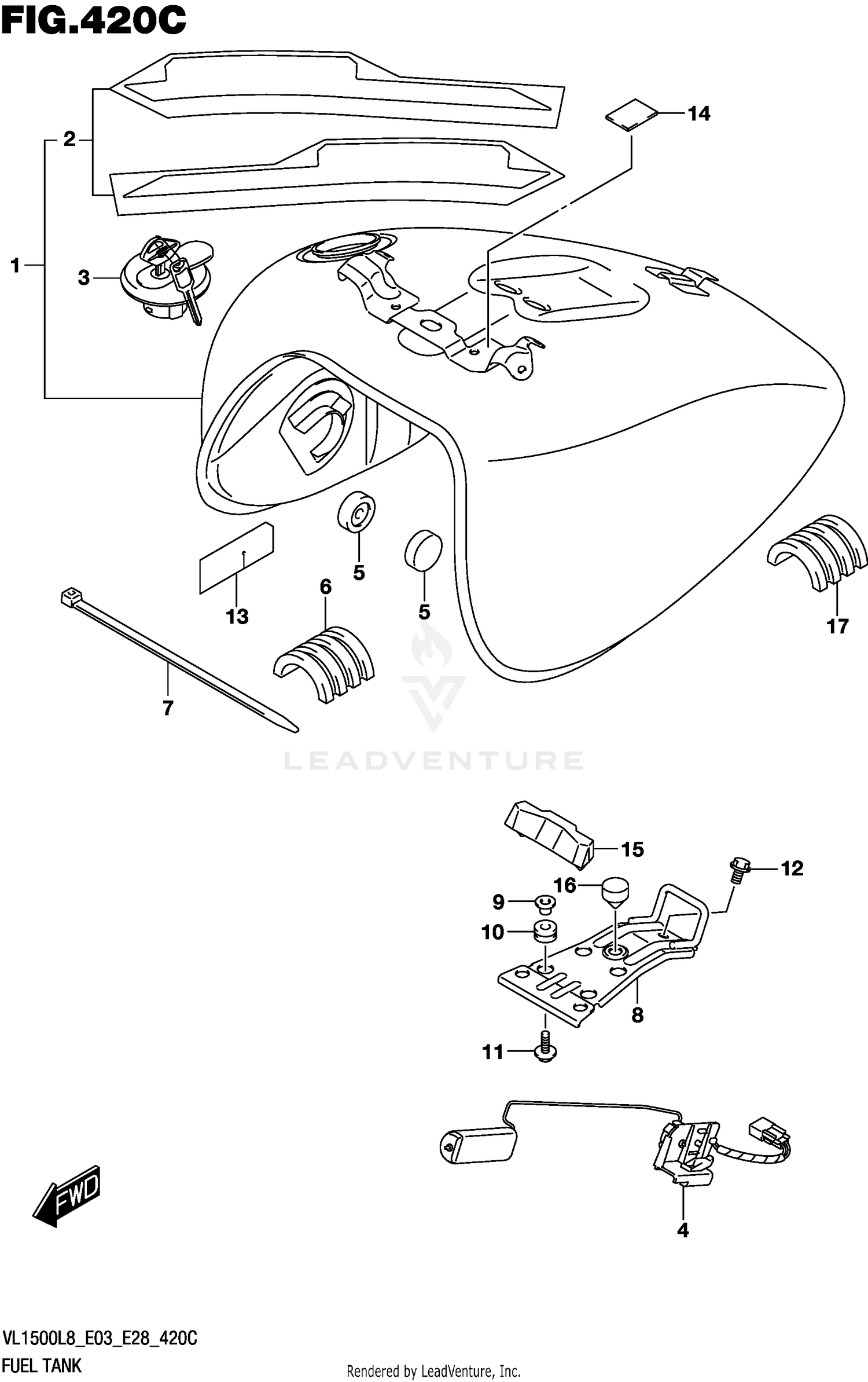

Fuel Tank (vl1500bl8 E33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TANK ASSY,FUEL
44100-06J60-YUD
Superseded by 44100-06J80-YUD
|
$977.19 | ||
|
Available to order. Add to View Price |
|||
|
#2
.TAPE SET FUEL TANK (BLACK)
68110-06J20-019
|
$59.66 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP SET,FUEL TA
44200-41840
Superseded by 44200-41842
|
$124.16 | ||
|
Unavailable |
|||
|
#4
GAUGE ASSY,FUEL
34810-40H00
Superseded by 34810-40H01
|
$109.74 | ||
|
Unavailable |
|||
|
#5
CUSHION
09329-10007
Superseded by 09329-10026
|
$2.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
CUSHION
44541-04F00
|
$11.87 | ||
|
Unavailable |
|||
|
#7
CLAMP (L:300)
09407-30402
|
$5.26 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRACKET
44530-06J00
|
$42.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER
09169-06062
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#10
CUSHION (8X18X10)
09320-08001
Superseded by 09320-08527
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT (6X20)
09116-06192
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT (8X12)
01550-0812A
|
$2.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
PROTECTOR,FUEL TANK
44283-06J00
|
$6.90 | ||
|
Available to order. Add to View Price |
|||
|
#14
CUSHION (30X40)
63191-25C00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#15
CUSHION
44545-06J00
|
$9.74 | ||
|
Available to order. Add to View Price |
|||
|
#16
.CUSHION
09321-10011
|
$3.46 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
CUSHION
44541-06J00
|
$8.25 | ||
|
Available to order. Add to View Price |
|||
