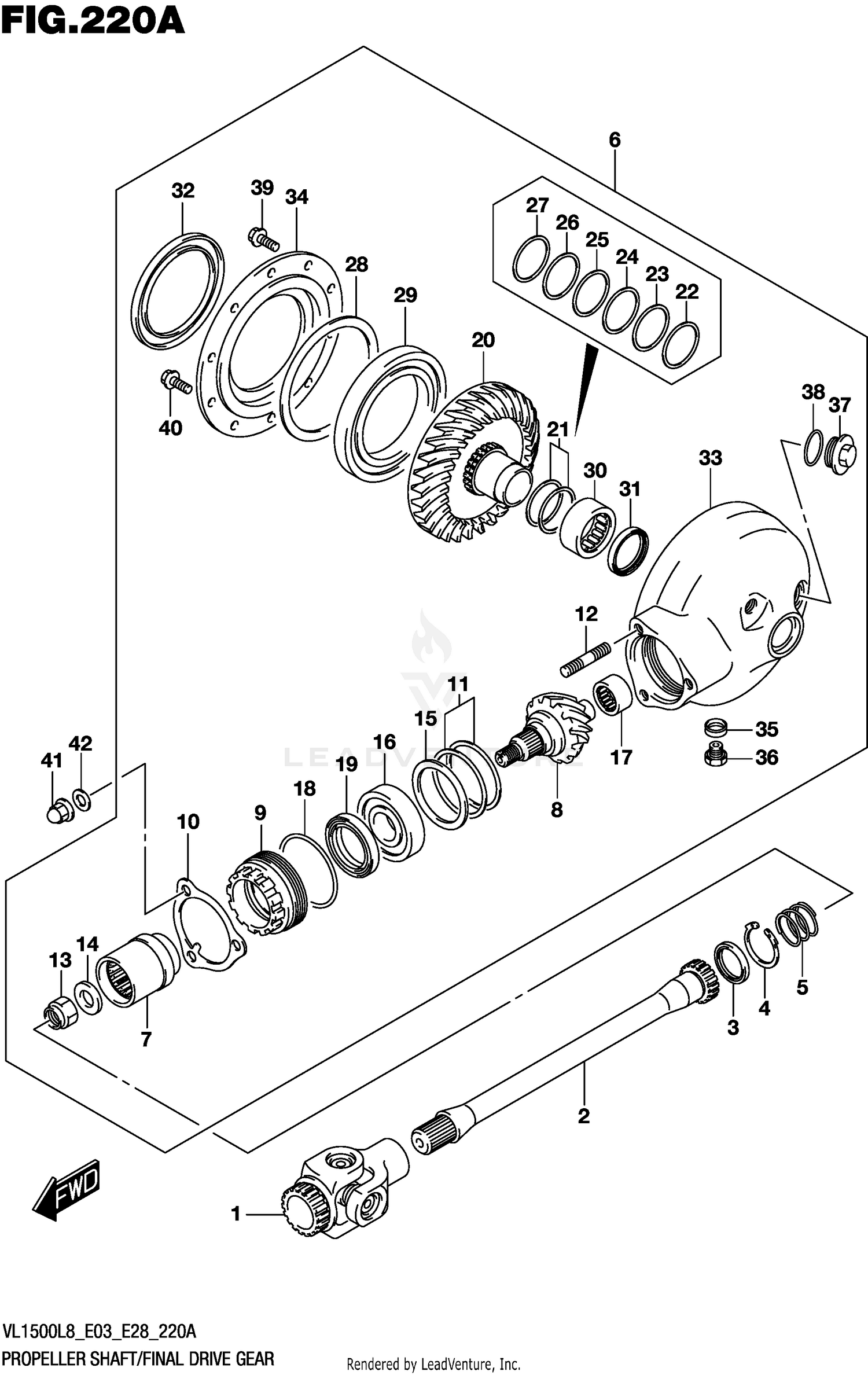

Propeller Shaft/final Drive Gear (vl1500bl8 E03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
YOKE,UNIVERSAL JOINT
27100-48G20
|
$390.59 | ||
|
Available to order. Add to View Price |
|||
|
#2
SHAFT
27151-40H00
|
$181.16 | ||
|
Unavailable |
|||
|
#3
OIL SEAL (30X40.5X5.5)
09283-30026
|
$13.23 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
09381-40003
|
$5.85 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING
09440-30008
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR & CASE SET
27300-48860-291
|
$2,185.67 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR & CASE SET
27300-48860-291
|
$2,185.67 | ||
|
Unavailable |
|||
|
#7
.COUPLING,FINAL DRIVE GEAR
27172-24A00
|
$67.50 | ||
|
Available to order. Add to View Price |
|||
|
#8
.GEAR
27311-24A10
|
$261.17 | ||
|
Available to order. Add to View Price |
|||
|
#8
.GEAR
27311-24A10
|
$261.17 | ||
|
Unavailable |
|||
|
#9
.STOPPER,FINAL DRIVE BEARING
27312-24A02
|
$83.62 | ||
|
Available to order. Add to View Price |
|||
|
#10-1
.PLATE,BEARING STOPPER
27313-38B00
|
$8.32 | ||
|
Available to order. Add to View Price |
|||
|
#10-2
.PLATE,BEARING STOPPER
27313-38B10
|
$8.32 | ||
|
Available to order. Add to View Price |
|||
|
#11
.SHIM SET,FINAL DRIVE GEAR (T
27445-24810
|
$31.82 | ||
|
Available to order. Add to View Price |
|||
|
#12
.BOLT,STUD
09108-10106
|
$5.10 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
09159-16003
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER (16X29X4.0)
09160-16029
|
$6.92 | ||
|
Available to order. Add to View Price |
|||
|
#15
.WASHER (54X68X1.5)
09160-54001
|
$9.50 | ||
|
Available to order. Add to View Price |
|||
|
#16
.BEARING (28X68X18)
09262-28023
|
$138.97 | ||
|
Available to order. Add to View Price |
|||
|
#17
.BEARING (20X34X18)
09263-20062
|
$51.07 | ||
|
Available to order. Add to View Price |
|||
|
#18
O RING (D:3.1,ID:63.9)
09280-64003
|
$7.08 | ||
|
Available to order. Add to View Price |
|||
|
#19
.OIL SEAL (45.5X58X7)
09283-47002
|
$18.69 | ||
|
Available to order. Add to View Price |
|||
|
#20
.GEAR,FINAL DRIVEN BEVEL (NT:
27320-48G00
|
$544.12 | ||
|
Available to order. Add to View Price |
|||
|
#20
.GEAR,FINAL DRIVEN BEVEL (NT:
27320-48G00
|
$544.12 | ||
|
Unavailable |
|||
|
#21
.SHIM SET,FINAL DRIVEN GEAR R
27326-48811
|
$116.29 | ||
|
Available to order. Add to View Price |
|||
|
#22
..SHIM (40X46.8X0.95)
09181-40011
|
$3.39 | ||
|
Unavailable |
|||
|
#23
..SHIM (40X46.8X1.05)
09181-40013
|
$4.11 | ||
|
Unavailable |
|||
|
#24
..SHIM (40X46.8X1.1)
09181-40014
|
|||
|
Unavailable |
|||
|
#25
..SHIM (40X50X1.2)
09181-40176
|
$2.68 | ||
|
Unavailable |
|||
|
#26
..SHIM (40X50X1.4)
09181-40182
|
$3.09 | ||
|
Unavailable |
|||
|
#27
..SHIM (40X50X1.5)
09181-40212
|
$3.39 | ||
|
Unavailable |
|||
|
#28
SHIM SET,FINAL DRIVEN GR
27327-38810
|
$122.40 | ||
|
Available to order. Add to View Price |
|||
|
#29
.BEARING (85X130X14)
09262-85001
|
$219.83 | ||
|
Available to order. Add to View Price |
|||
|
#30
.BEARING (40X50X20)
09263-40016
|
$74.96 | ||
|
Available to order. Add to View Price |
|||
|
#31
.OIL SEAL (38X46X6)
09283-38026
|
$20.89 | ||
|
Available to order. Add to View Price |
|||
|
#32
.OIL SEAL (85X110X11)
09289-85001
|
$53.46 | ||
|
Available to order. Add to View Price |
|||
|
#33
.CASE
27450-48G70-291
|
$781.84 | ||
|
Available to order. Add to View Price |
|||
|
#34
.CASE,FINAL GEAR BEARING
27461-38B00
|
$267.00 | ||
|
Available to order. Add to View Price |
|||
|
#35
.GASKET (13.8X18.8X4.8)
09168-14002
|
$2.83 | ||
|
Unavailable |
|||
|
#36
PLUG (MAGNETO)
09247-14002
|
$6.57 | ||
|
Available to order. Add to View Price |
|||
|
#37
.PLUG (30X9)
09259-30007
|
$23.52 | ||
|
Available to order. Add to View Price |
|||
|
#38
O-RING (D:3.1,ID:26.4)
09280-26006
|
$3.46 | ||
|
Available to order. Add to View Price |
|||
|
#39
.BOLT
01550-0825A
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT
01550-1025A
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#41
.NUT
09159-10026
|
$7.93 | ||
|
Available to order. Add to View Price |
|||
|
#42
.WASHER (113X122X2.3)
09164-10008
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
