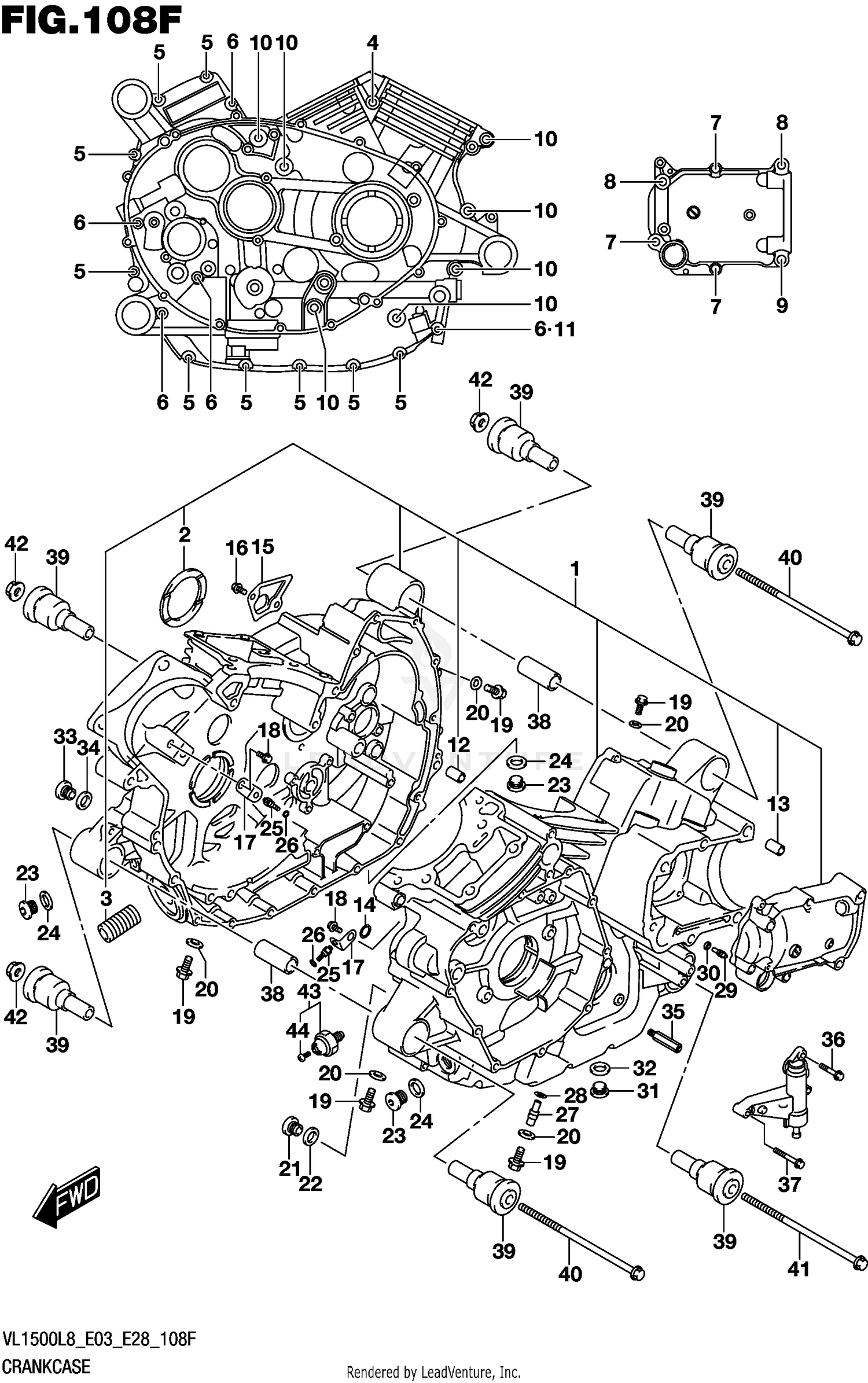

Crankcase (vl1500tl8 E28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE SET
11301-40881
|
$3,840.74 | ||
|
Available to order. Add to View Price |
|||
|
#2-1
.BEARING
12228-40H00-0A0
|
$19.13 | ||
|
Unavailable |
|||
|
#2-1
.BEARING
12228-40H00-0A0
|
$19.13 | ||
|
Unavailable |
|||
|
#2-2
.BEARING
12228-40H00-0B0
|
$19.13 | ||
|
Unavailable |
|||
|
#2-2
.BEARING
12228-40H00-0B0
|
$19.13 | ||
|
Unavailable |
|||
|
#2-3
.BEARING
12228-40H00-0C0
|
$19.13 | ||
|
Unavailable |
|||
|
#2-3
.BEARING
12228-40H00-0C0
|
$19.13 | ||
|
Unavailable |
|||
|
#2-4
.BEARING
12228-40H00-0D0
|
$19.13 | ||
|
Unavailable |
|||
|
#2-4
.BEARING
12228-40H00-0D0
|
$19.13 | ||
|
Unavailable |
|||
|
#2-5
.BEARING
12228-40H00-0E0
|
$19.13 | ||
|
Unavailable |
|||
|
#2-5
.BEARING
12228-40H00-0E0
|
$19.13 | ||
|
Unavailable |
|||
|
#2-6
.BEARING
12228-40H00-0F0
|
$19.13 | ||
|
Unavailable |
|||
|
#2-6
.BEARING
12228-40H00-0F0
|
$19.13 | ||
|
Unavailable |
|||
|
#3
UNION,OIL STAND
16591-06B01
|
$9.09 | ||
|
Available to order. Add to View Price |
|||
|
#4
.BOLT (8X110)
09103-08134
|
$3.71 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
01547-0645A
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
.BOLT
01547-0685A
|
|||
|
Unavailable |
|||
|
#7
BOLT
01550-0845A
|
$4.03 | ||
|
Available to order. Add to View Price |
|||
|
#8
.BOLT
01550-0860A
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#9
.BOLT
01550-0870A
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#10
.BOLT
01550-0880A
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET (5.8X13X1.2)
09168-06023
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
PIN,CRANKCASE
11319-33E50
|
$7.07 | ||
|
Available to order. Add to View Price |
|||
|
#13
.PIN (8.4X11X20)
09206-11007
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING (D:1.9,ID:12.6)
09280-12009
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLATE
11313-40H00
|
$11.17 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
01547-0612A
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLATE
16439-38B00
|
$1.87 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
01547-0612A
|
$2.53 | ||
|
Unavailable |
|||
|
#19
BOLT (8X12)
01550-0812A
|
$2.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
GASKET (8.2X14X1)
09168-08016
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#21
PLUG (10X10)
09248-10010
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#22
GASKET (10X14X3.6)
09168-10002
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
PLUG (16X8)
09248-16012
|
$5.83 | ||
|
Available to order. Add to View Price |
|||
|
#24
GASKET (16X22X2)
09168-16002
|
$2.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
JET
09493-80009
|
$22.52 | ||
|
Available to order. Add to View Price |
|||
|
#26
O RING (D:1.2,ID:4)
09280-04004
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#27
JET (12)
09493-24009
|
$13.28 | ||
|
Available to order. Add to View Price |
|||
|
#28
O RING (D:1.2,ID:4)
09280-04004
|
$2.05 | ||
|
Unavailable |
|||
|
#29
JET,OIL GALY (#18)
09493-36004
|
$18.34 | ||
|
Available to order. Add to View Price |
|||
|
#30
O RING (D:1.2,ID:4)
09280-04004
|
$2.05 | ||
|
Unavailable |
|||
|
#31
PLUG (14X20)
09247-14036
|
$7.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
.GASKET (13.8X18.8X4.8)
09168-14002
|
$2.83 | ||
|
Unavailable |
|||
|
#33
PLUG (14X12)
09248-14011
|
$3.79 | ||
|
Available to order. Add to View Price |
|||
|
#34
.GASKET (13.8X18.8X4.8)
09168-14002
|
$2.83 | ||
|
Unavailable |
|||
|
#35
BOLT
11372-22H00
|
$16.93 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT
01547-0620A
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT
01547-0630A
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#38
SPACER,ENG MTG
11611-48G00
|
$17.51 | ||
|
Available to order. Add to View Price |
|||
|
#39
BUSH
11652-40H20
|
$32.72 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT (10X215)
09103-10041-A05
|
$13.04 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT (10X195)
09103-10118
|
$13.93 | ||
|
Available to order. Add to View Price |
|||
|
#42
NUT
08319-3110A
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#43
SWITCH ASSY,OIL PRESSURE
37820-33D10
Superseded by 37820-33D11
|
$27.59 | ||
|
Unavailable |
|||
|
#44
.BOLT,OIL PRESSURE SWITCH
37822-33D00
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
