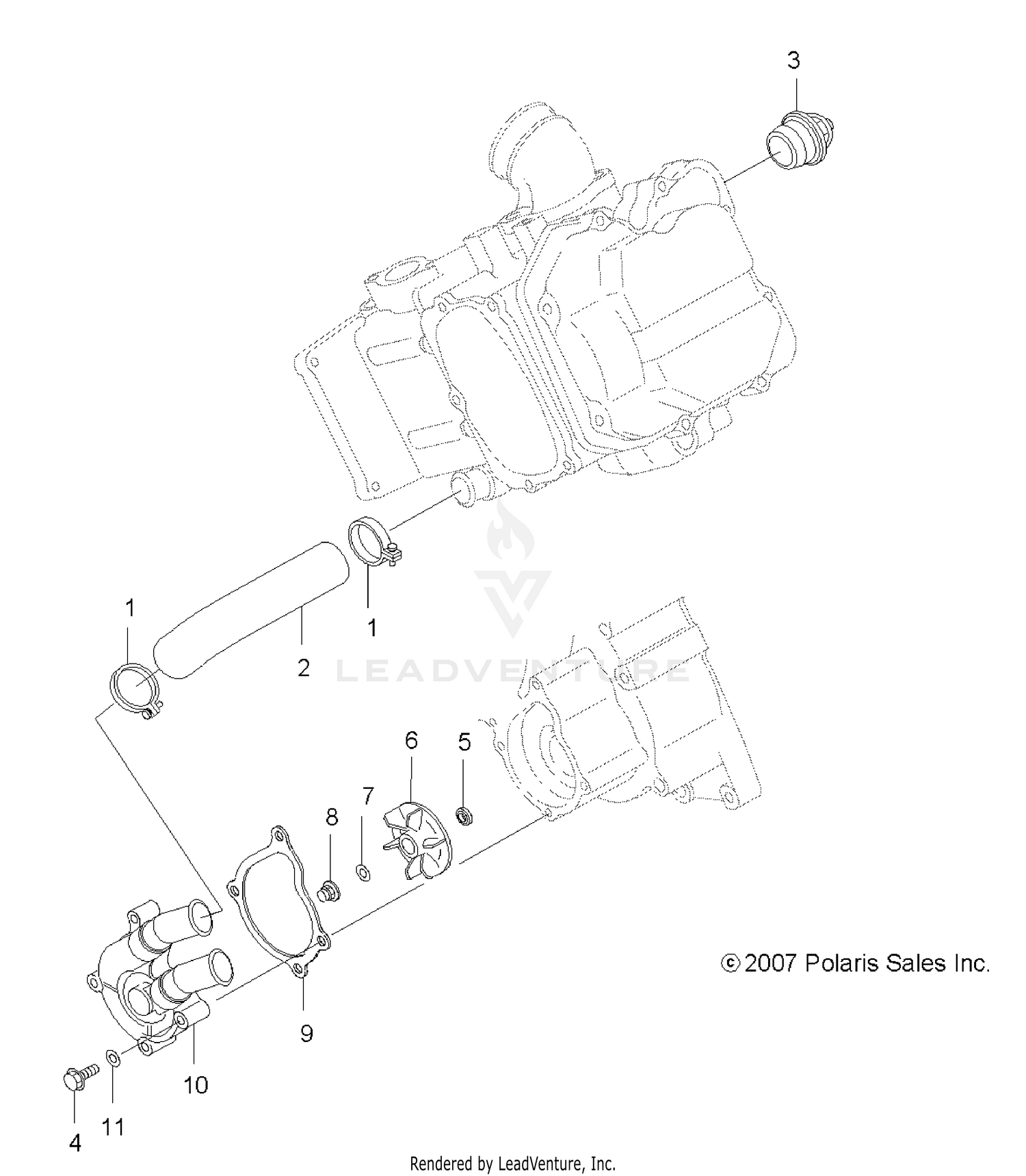

Engine, Water Pump - A08lh46aq/ax/az (49atvwaterpump08sp400) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Clamp, Hose
3086774
|
$14.29 | ||
|
Available to order. Add to View Price |
|||
|
#2
Hose, Main
3090048
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
Thermostat
3090049
Superseded by 3084940
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Bolt, Flange
3088064
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Washer, Seal
3084942
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Impeller
3084935
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, FLAT
3083138
Superseded by 7555998
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
Nut, Self Lock
3085077
|
$11.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
Gasket, Water Pump
3090047
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Cover, Water Pump
3090046
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Gasket, Copper
3088030
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
