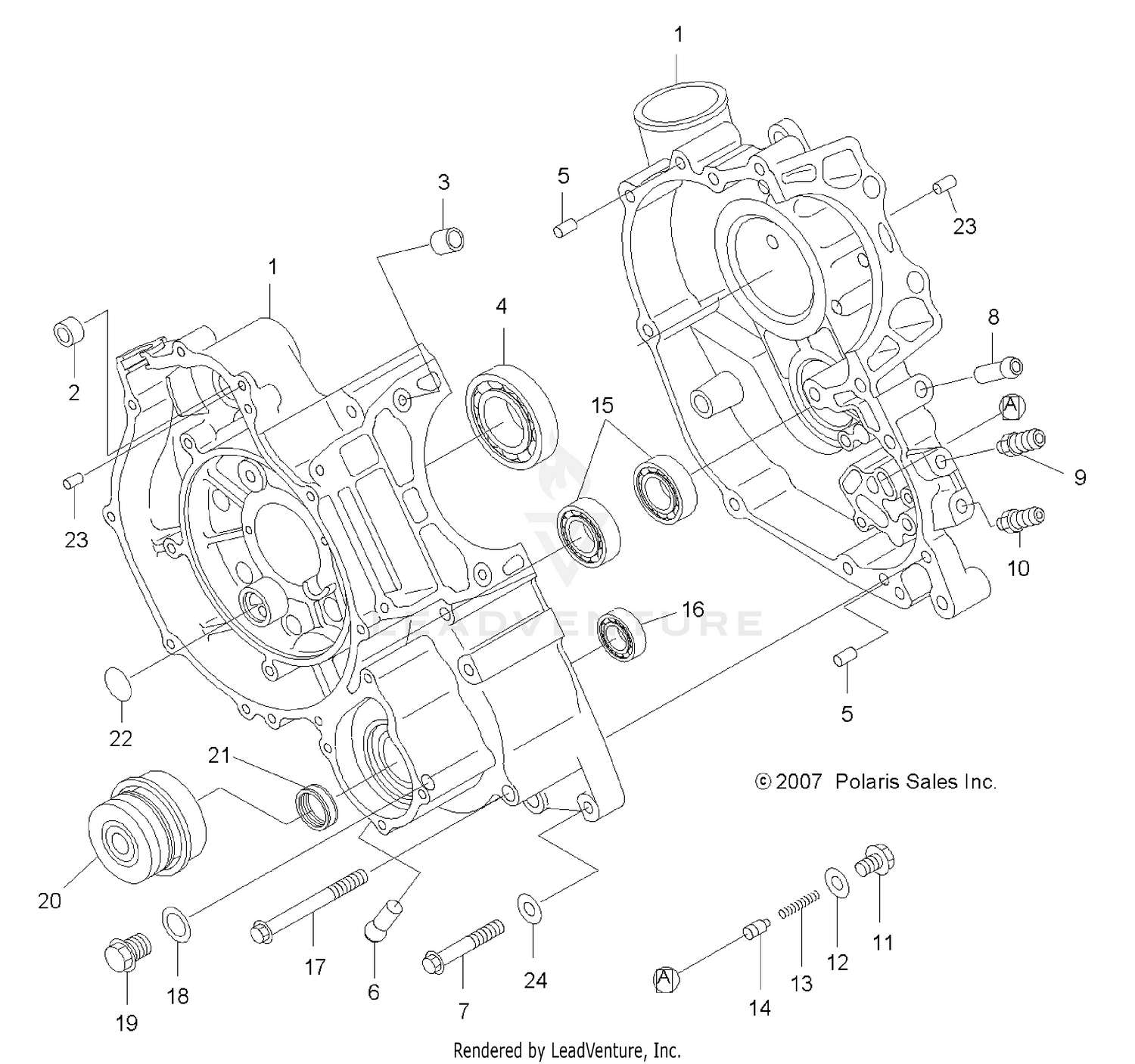

Engine, Crankcase - A08lh46aq/ax/az (49atvcrankcase08sp400) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Asm., Crankcase
3090076
|
$694.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Bushing, Starter
3083669
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Pipe, Knock
3087266
|
$7.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
Bearing, Ball
3080676
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Pin, Dowel
3084840
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
Pipe, Pulse
3083798
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Bolt, Flange
3090037
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#8
Pipe, Air Breather
3085525
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Union
3087154
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
UNION
3084842
Superseded by 3090305
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Plug
3084845
|
|||
|
Unavailable |
|||
|
#12
Gasket, Aluminum
3089450
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Spring
3084844
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Valve, One Way
3090036
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Bearing, Ball
3084834
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Bearing, Ball
3084835
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Bolt, Flange
3084841
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Gasket
3082956
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
PLUG Substituted by 3086749
3086749
Superseded by 3083453
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Seal, Mechanical
3084837
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Seal, Oil
3084836
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-Ring
3084847
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Pin, Dowel
3086838
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Washer
3080142
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
