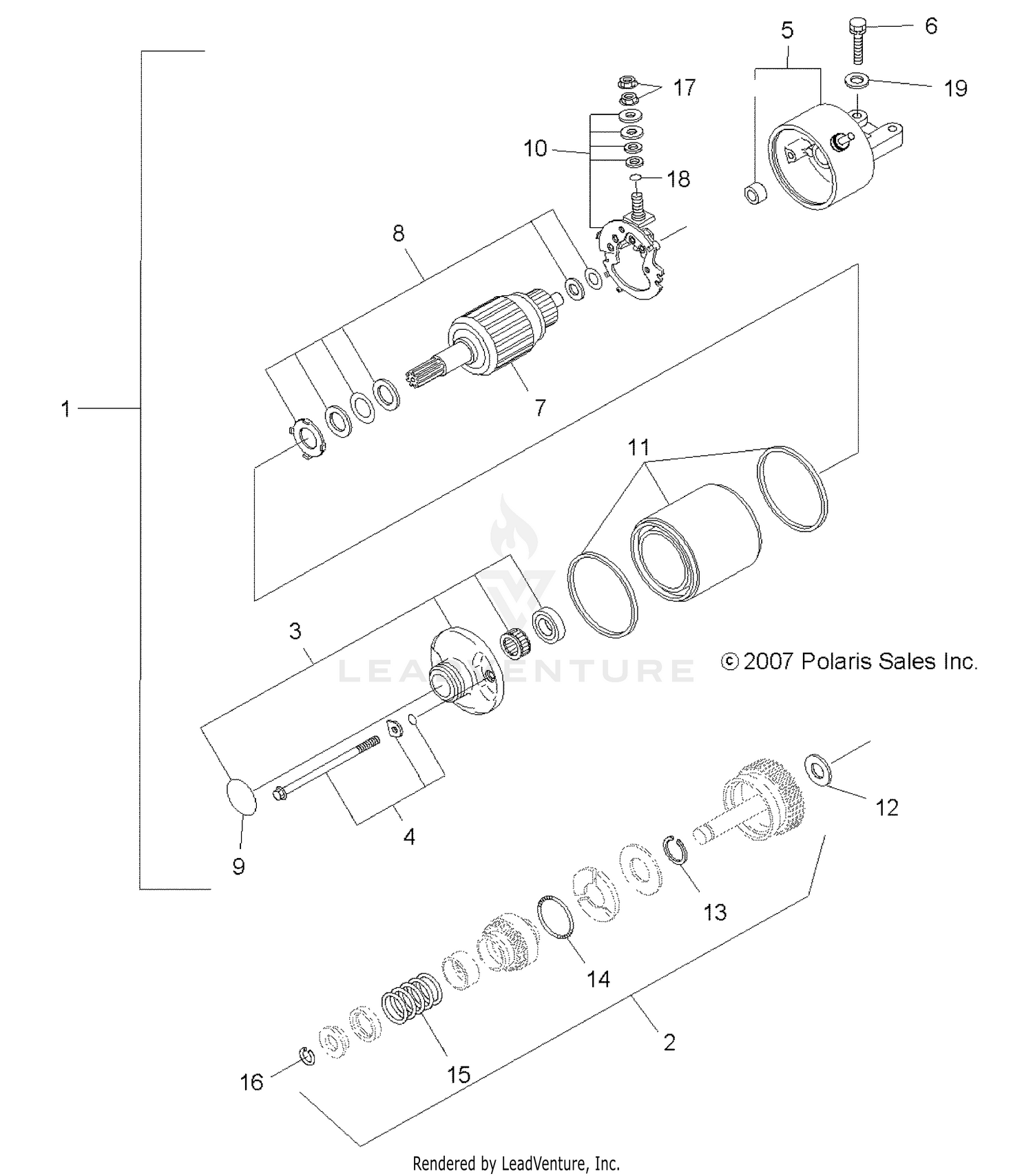

Engine, Starting System - A08lh46aq/ax/az (49atvstarter08sp400) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Motor, Starting, Complete
3090064
Superseded by 3090191
|
$449.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
ASM., GEAR SHAFT
3087030
Superseded by 3090034
|
$304.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Asm., Front Bracket
3085033
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Asm., Bolt Set
3084983
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Asm., Bracket, Rear
3090075
|
|||
|
Unavailable |
|||
|
#6
Bolt, Flange
3084874
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
Asm., Armature
3085353
|
$307.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Washer Set
3084982
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-Ring
3088161
Superseded by 3240114
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Brush, Carbon, Set
3088169
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Ring, Rubber
3084405
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
Washer
7555908
|
$8.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
Clip
3084412
|
$11.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
Spring, Weight
3084411
|
$19.59 | ||
|
Available to order. Add to View Price |
|||
|
#15
Spring, Return
3084410
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#16
Clip
3084409
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Nut, Flange
3083649
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-Ring
3084408
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Washer, Flat
7558301
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
