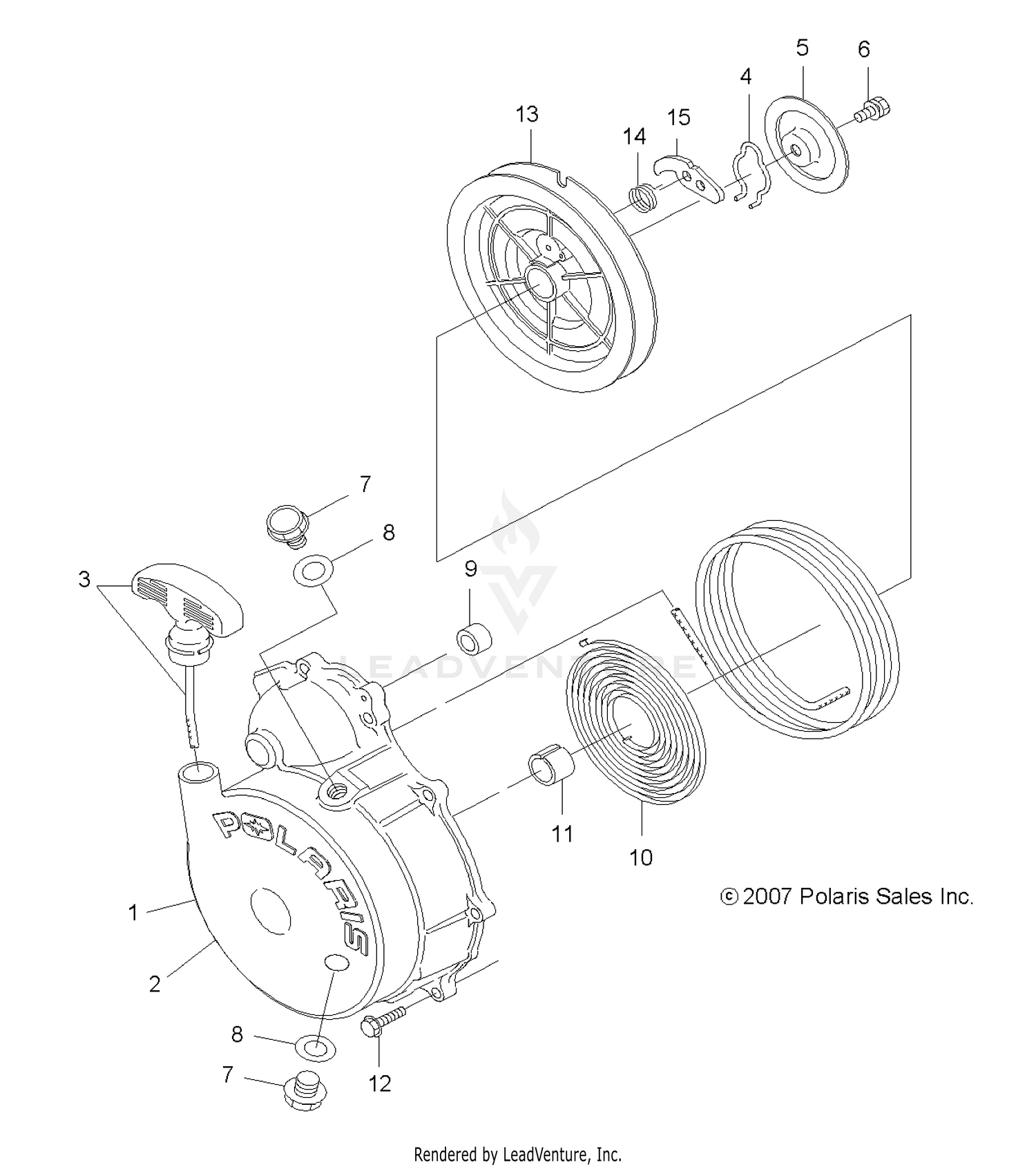

Engine, Recoil Starter - A08lh46aq/ax/az (49atvrecoil08sp500) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
KIT-RECOIL
3087163
Superseded by 3090085
|
$444.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Asm., Starter Case
3087164
|
$184.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Asm., Rope
3085083
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Spring, Friction
3083379
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Plate, Friction
3084744
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Asm., Bolt and Washer
3085266
|
|||
|
Available to order. Add to View Price |
|||
|
#7
PLUG Substituted by 3086749
3086749
Superseded by 3083453
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Gasket
3082956
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
Bushing, Starter
3083669
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Spring, Spiral
3083185
|
$41.19 | ||
|
Available to order. Add to View Price |
|||
|
#11
Bushing
3084750
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Bolt, Flange
3084877
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
Asm., Reel
3084822
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Spring, Return
3083463
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Ratchet
3083378
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
