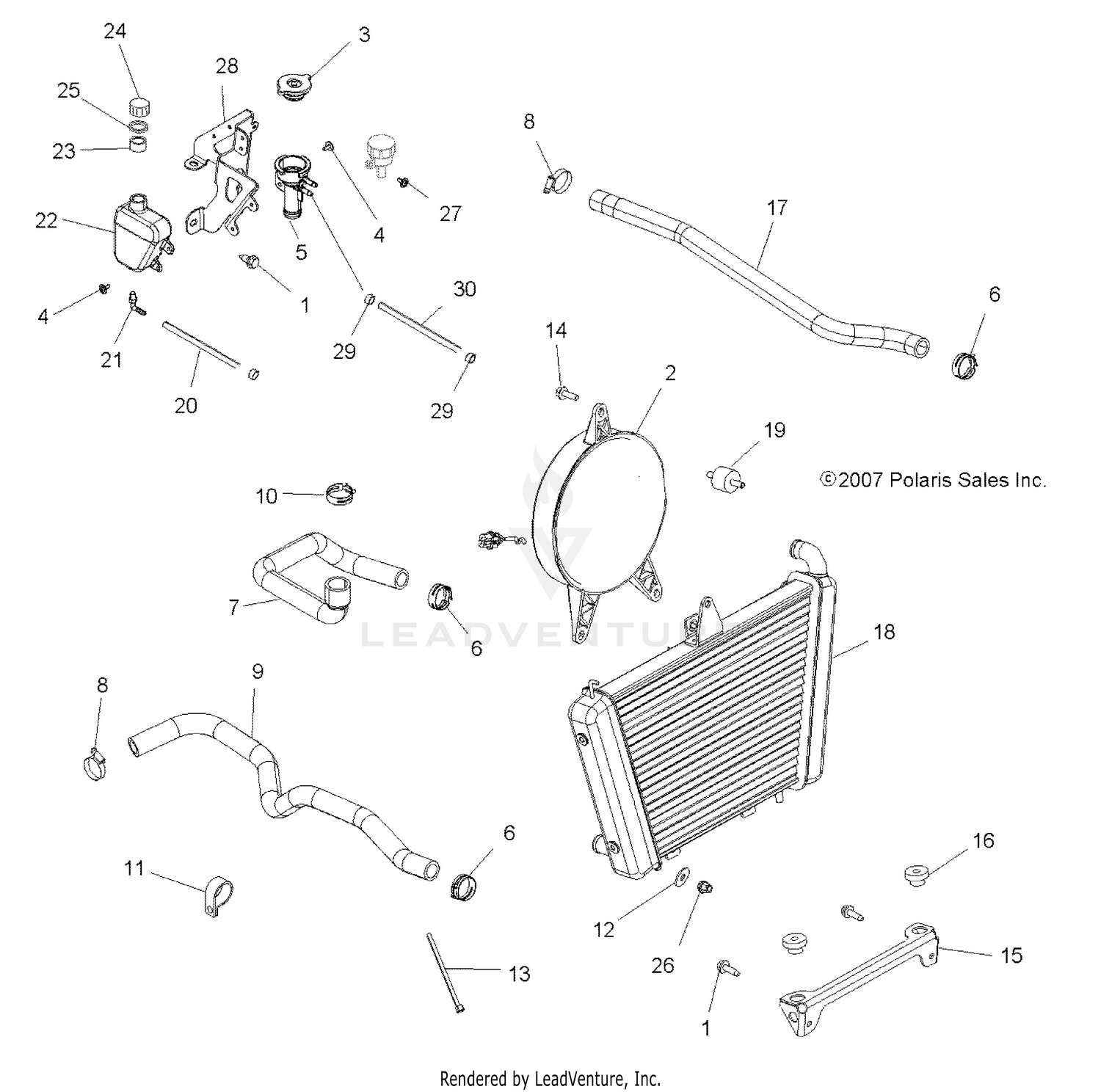

Engine, Cooling System - A08lh46aq/ax/az (49atvcool08sp400) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
Asm., Fan and Motor
2520850
|
$299.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP, PRESSURE
1240044
Superseded by 1240508
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Screw
7512084
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
Filler, Remote Coolant
5435196
|
$15.39 | ||
|
Available to order. Add to View Price |
|||
|
#6
Clamp, Springband
7080841
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Hose, Engine Filler
5413367
|
$18.59 | ||
|
Available to order. Add to View Price |
|||
|
#8
Clamp, Hose
7080696
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Hose, Engine, Lower
5413365
|
|||
|
Unavailable |
|||
|
#10
Clamp, Springband
7080844
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP-HOSE
7080807
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Washer, Spring Lock
7552801
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
Bolt
7517975
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Bracket, Radiator, Black
5251445-067
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BUSHING-MOUNT,LOWER RADIATOR
5410584
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Hose, Engine, Upper
5413366
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Radiator
1240361
|
$530.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
Mount, Rubber
3110071
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Line, Fuel
8450003-1525
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Fitting, 90 Degree
7052065
|
$8.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
TANK-SURGE
5436936
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
PLUG-CAP 9X(GREEN) FLEX TEMP
5433774
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
CAP-OVER FLOW BOTTLE,DRILLED
5430743
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
GASKET-OVERFLOW CAP
5810279
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
Nut
7542105
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
Screw
7517560
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
Bracket, Radiator Fill Mount
5251406-067
Superseded by 5252816
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
HOSE CLAMP, RED
7080003
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
Line, Fuel
8450040-600
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
