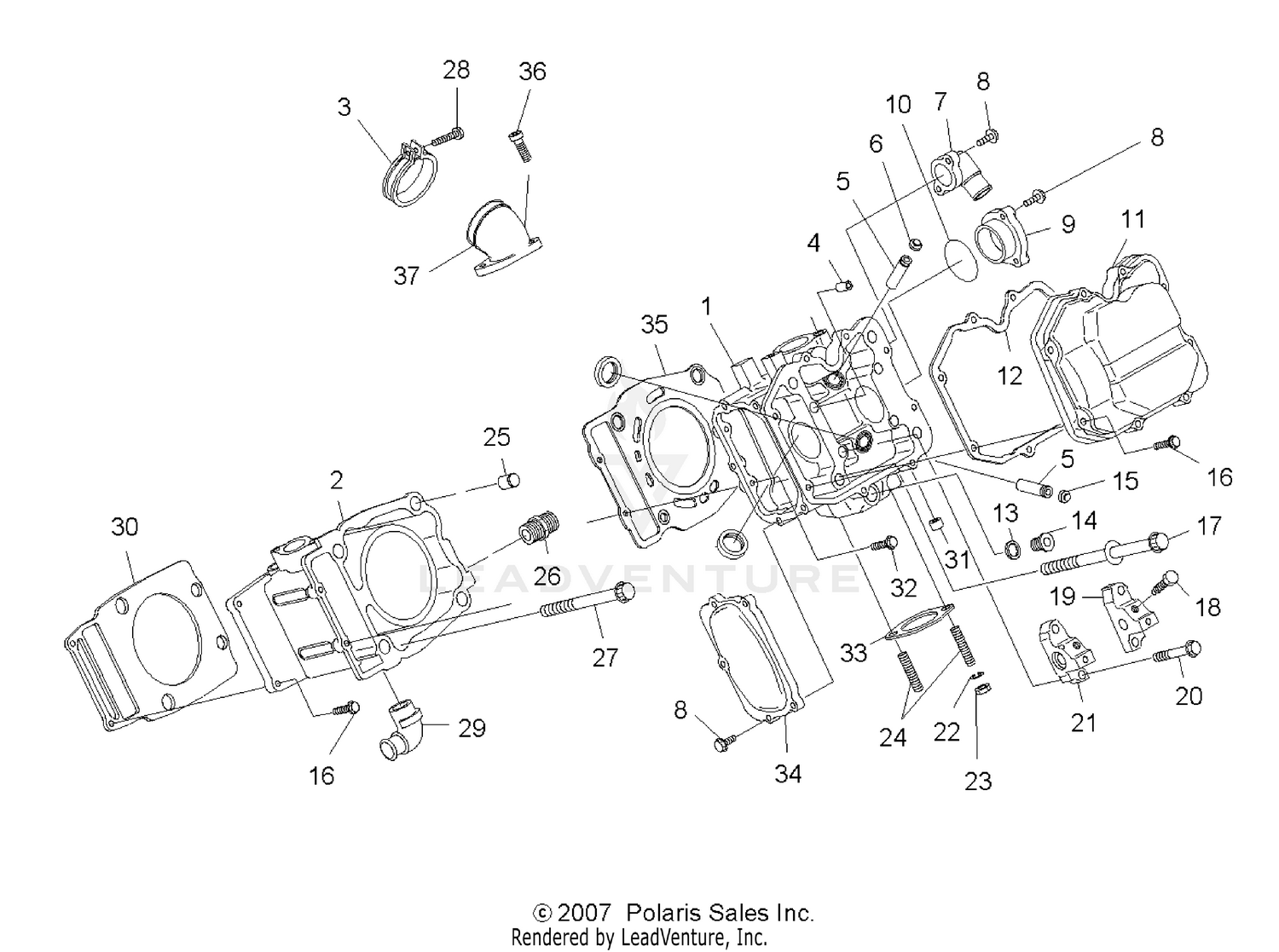

Engine, Cylinder And Head - A08lh46aq/ax/az (49atvcylinder08sp400) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Head, Cylinder
3090038
|
$624.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Asm., Cylinder
3089241
|
$559.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Asm., Adapter Band
3083166
Superseded by 3090180
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Pin, Straight
3084857
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Guide, Valve
3084994
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Seal, Intake Valve
3084858
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Adapter
3084870
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Bolt, Flange
3084877
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
Adapter, Camshaft
3084866
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-Ring
3084867
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Cover, Rocker
3085073
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Gasket, Rocker Cover
3085074
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Gasket
3084861
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Plug
3084860
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Seal, Exhaust Valve
3084859
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Bolt, Flange
3084874
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Bolt
3084875
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Bolt, Rocker Shaft
3085854
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Support, Valve Rocker Shaft
3084864
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Bolt
3084876
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Support, Valve Rocker Shaft
3084863
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Washer, Spring Lock
3080530
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
Nut
3087199
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Stud
3085326
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Pipe, Knock
3087266
|
$7.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
Union
3089956
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
Bolt, Flange
3084873
|
$26.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
Asm., Screw and Washer
3081497
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
Pipe, Elbow, 2
3086747
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
Gasket, Cylinder
3089966
|
$49.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
Plug, Blind
3084862
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
Bolt, Flange
3086781
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
Gasket
3085075
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
Cover, Camshaft
3089242
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
Gasket, Head
3085337
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
Bolt, Socket Head
3081330
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
Adapter
3090039
|
$92.79 | ||
|
Available to order. Add to View Price |
|||
