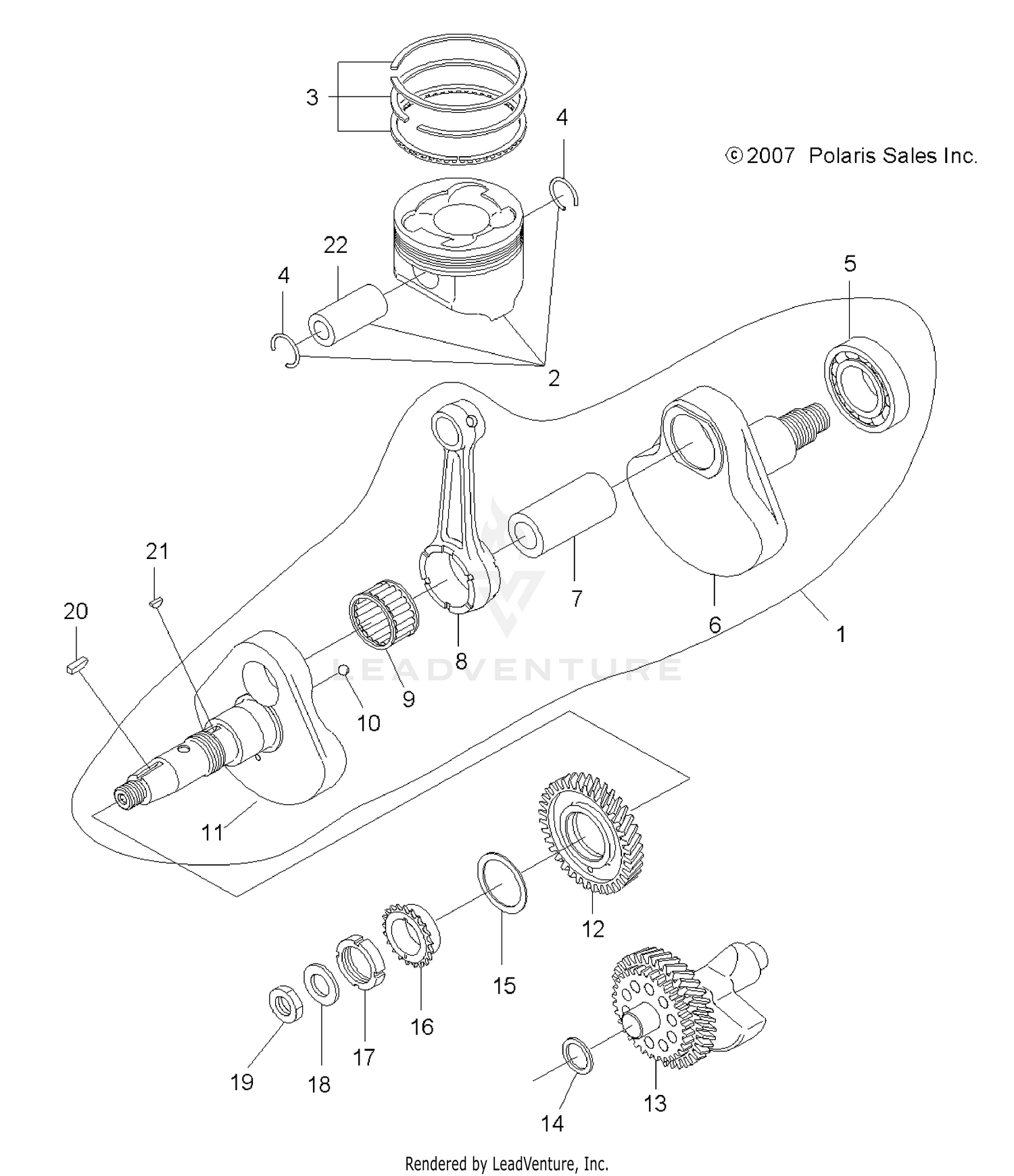

Engine, Crankshaft And Piston - A08lh46aq/ax/az (49atvcrankshaft08sp400) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Asm., Crankshaft
3090040
|
$609.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Set, Piston, Standard
3087230
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Set, Piston, .010 Inch/.25MM O/S
3087231
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Set, Piston, .020 Inch/.50MM O/S
3087232
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Set, Piston, Ring, Standard
3087233
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Set, Piston, Ring, .010 Inch/.25MM O/S
3087234
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Set, Piston, Ring, .020 Inch/.50MM O/S
3087235
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Clip
3085534
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Bearing, Ball
3090044
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Crankshaft 2
3090042
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Pin, Crank
3090043
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Rod, Connecting
3085813
Superseded by 3090273
|
$229.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING,LARGE END Substituted by 3085343
3085343
Superseded by 3085400
|
$89.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
Ball, Steel
3085024
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Crankshaft 1
3090041
|
$226.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Balancer, Gear 1
3089245
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Shaft, Balancer
3090031
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Spacer, 0.8
3084895
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Spacer, 1.0
3084896
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Spacer, 1.2
3084897
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Spacer, 0.6
3240088
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Spacer, 0.8
3084892
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Spacer, 1.0
3084893
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Spacer, 1.2
3084894
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Sprocket 1
3084882
|
$30.99 | ||
|
Unavailable |
|||
|
#17
Nut, Slit
3085528
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Washer
3086767
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Nut, Lock
3083905
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Key
3081447
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Key, Woodruff
3240168
|
$29.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
PIN, PISTON
-------
|
|||
|
Unavailable |
|||
