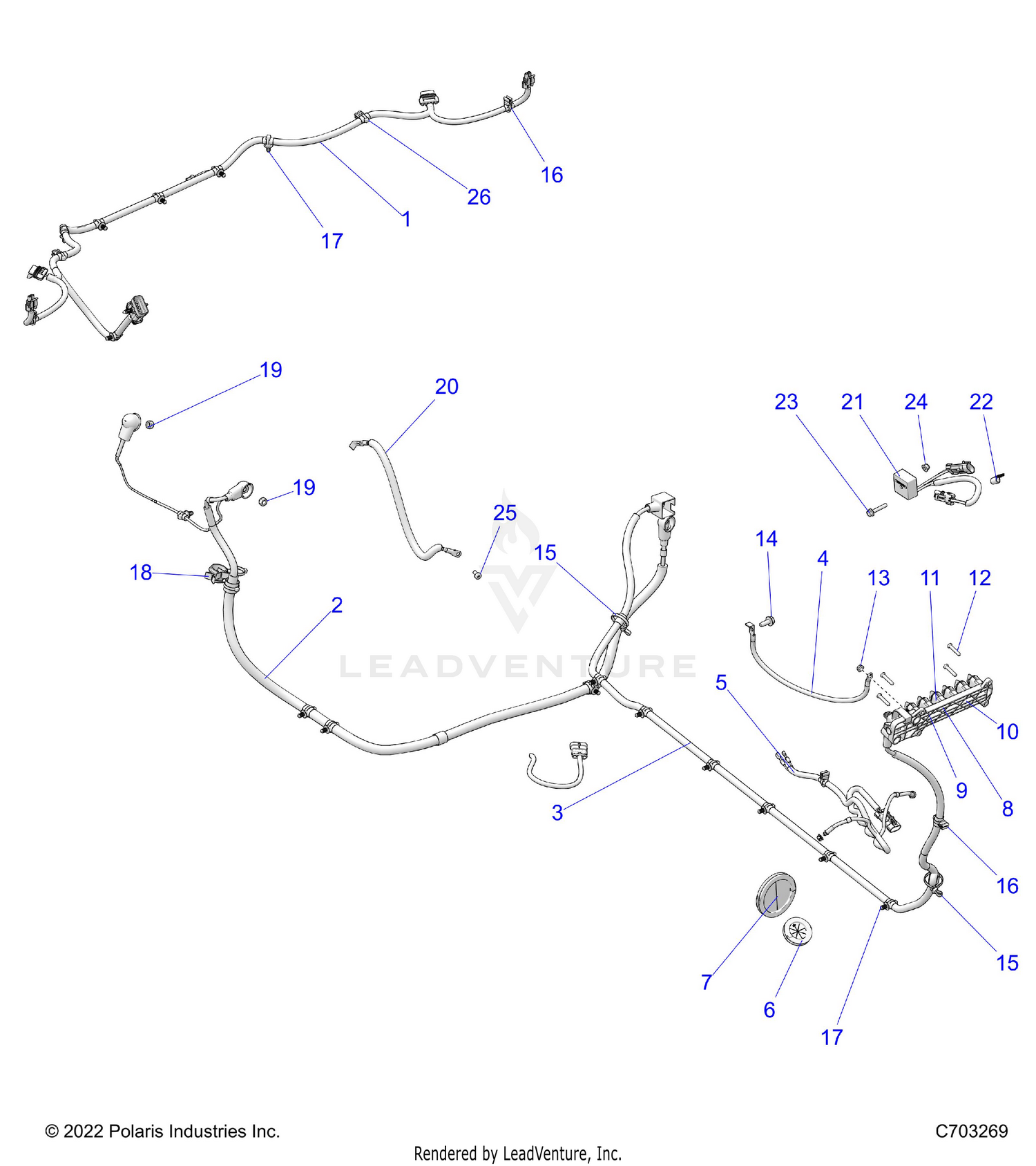

Electrical, Wire Harness, Peripheral - Z24rmd2kah/al/bh/bl (c703269) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS-BOX,RZR G4
2415274
|
$129.99 | ||
|
Unavailable |
|||
|
#2
CABLE-POS,PDM,START,ALT
4019608
|
$129.99 | ||
|
Unavailable |
|||
|
#3
CABLE-ACCY,PDM TO ATB
4018864
|
$129.99 | ||
|
Unavailable |
|||
|
#4
CABLE-GROUND,ATB,CHAS
4081125
|
$44.99 | ||
|
Unavailable |
|||
|
#5
HARNESS-CONSOLE
2415067
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
GROMMET-ELEC,CAB,SLIT
5415049
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GROMMET-ELECTRICAL,CAB
5417178
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BLOCK-TERMINAL,3 POST,TALL
4016007
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
FUSE-CARTRIDGE,40A
4013891
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLUG,ACCY TB
5454283
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER,TB,JCASE
5454284
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCR-10X1.12 TX PN PLS-Y
7512078
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
NUT-HXFLGHD, M6, SERRATED
7547270
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCR-HXFL-M8X1.25X20 TAP ZY3
7520764
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CABLE-TIE,7-46MM,DUAL-LOOP
7081033
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLIP-EDGE,1-3MM,6-45MM,SERT.
7081808
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLIP FIR-TREE,DIA6-33MM
7081496
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
CLIP-OMEGA,CABLE/19-24.5MM DIA
7082408
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT-NYLOCK M8X1.25-Y
7547144
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
CABLE-GROUND,ENG,CHAS,G4
4018143
|
$54.99 | ||
|
Unavailable |
|||
|
#21
RELAY, SOLID STATE, 9 AMP, LONG, LD
4012829
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLAMP-HOSE,.312DIA,VINYL COAT
7080683
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT-M6X1.0X35,HXFLG/SH-OLV D
7518612
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT-M6X1.0, FLG-NYLOC-OLIVE D
7547339
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
SCREW-M6X1X14,PN/TX,TRI-LOB
7518914
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLIP-EDGE,HARNESS
7081890
|
$12.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
