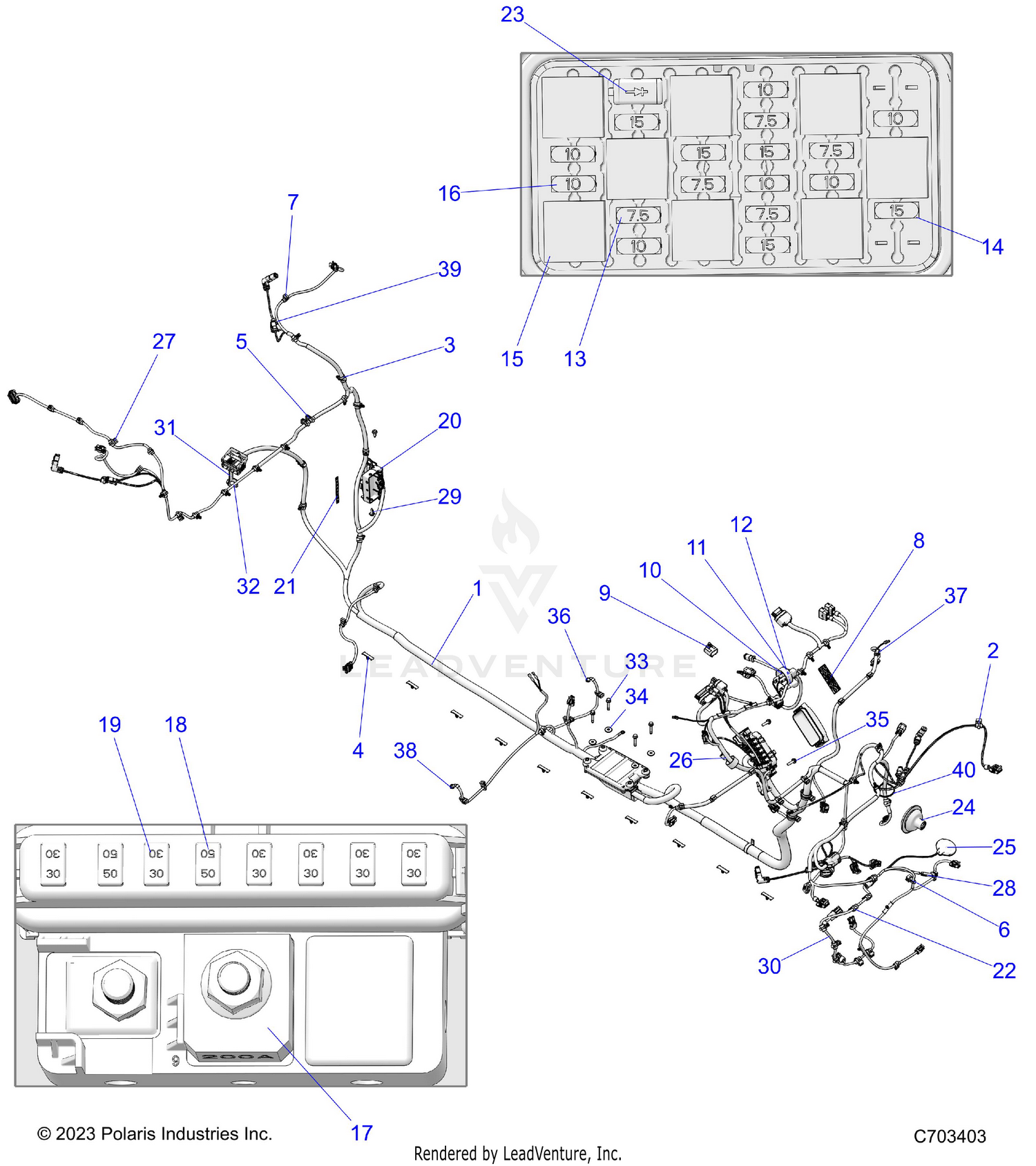

Electrical, Wire Harness, Chassis, Premium - Z24rmd2kah/al/bh/bl (c703403) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS-CHASSIS,ULT,PROR,MP
2416686
|
$1,899.99 | ||
|
Unavailable |
|||
|
#2
STRAP-CABLE TIEW/EDGECLIP3-6MM
7082073
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLIP FIR-TREE,DIA6-33MM
7081496
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
CLIP-XMAS,6.35MM HOLE,TAPE-ON
7082411
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLIP-EDGE,1-3MM,6-45MM,SERT.
7081808
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLIP-EDGE,DIA5-50MM,OUT-SER
7081824
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLIP-EDGE,1-3MM THICKNESS
7082428
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
LABEL-FUSE BOX
7197503
|
|||
|
Unavailable |
|||
|
#9
COVER-DIAGNOSTIC,W/CLIP
4012170
|
$10.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
RESISTOR-24.9KOHM
2415215
|
$11.99 | ||
|
Unavailable |
|||
|
#11
RESISTOR-4.75KOHM
2415214
|
$11.99 | ||
|
Unavailable |
|||
|
#12
RESISTOR-1.6KOHM
2415213
|
$11.99 | ||
|
Unavailable |
|||
|
#13
FUSE - 7.5, MINI BLADE (BROWN)
4011068
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
FUSE-15AMP,MINI BLADE
4010859
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
RELAY-SPST,12V,20A,EPXY,HFA
4016819
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
FUSE-IGNITION,10 AMP
2434016
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
FUSE-ZCASE, 200A
4018415-200
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
FUSE-MCASE,50A
4018414-50
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
FUSE-MCASE,SLOTTED,30A
4018414-30
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
FUSE-PDM
4017598
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
LABEL-PDM,RZR,G4
7191499
|
|||
|
Available to order. Add to View Price |
|||
|
#22
CLIP- EDGE, 1-3MM THICKNESS
7082427
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
DIODE-6AMP
4011474
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
GROMMET - 65 MM, BLK
5813954
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
ANTENNA,GPS,EXT
4018662
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
RESISTOR - EVAP PULLUP - 1 KOHM
2414716
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLIP-EDGE,HARNESS
7081890
|
$12.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
CAP - VINYL, 125X375, BLACK
5438230
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
RIVET-TUFLOK,.315-.325X.787
7661855
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
HARNESS-JUMPER FRONT DRIVE
2416574
|
$59.99 | ||
|
Unavailable |
|||
|
#31
BRKT-MOUNT,CONNECTOR,ECOAT
5270941-329
|
$44.99 | ||
|
Unavailable |
|||
|
#32
SCR-HXFL-M10X1.5X25,DIN6921ZB
7519349
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
SCR-M6X1.0X35,HX/FL-Y/D
7516827
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER-.270X.84X.075 BLK-M
7556386
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
SCR-HXFL-M6X1.0X25 8.8 RIE
7518533
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
LED - PANEL MNT, 12V, BLUE
2413217
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
CLIP-EDGE, 1-3mm THICKNESS
7082403
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
CLIP - ROUTING, DIN BOX
7082020
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
CABLE-TIE,DIA2.5-34MM,FIR-TREE
7082003
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
