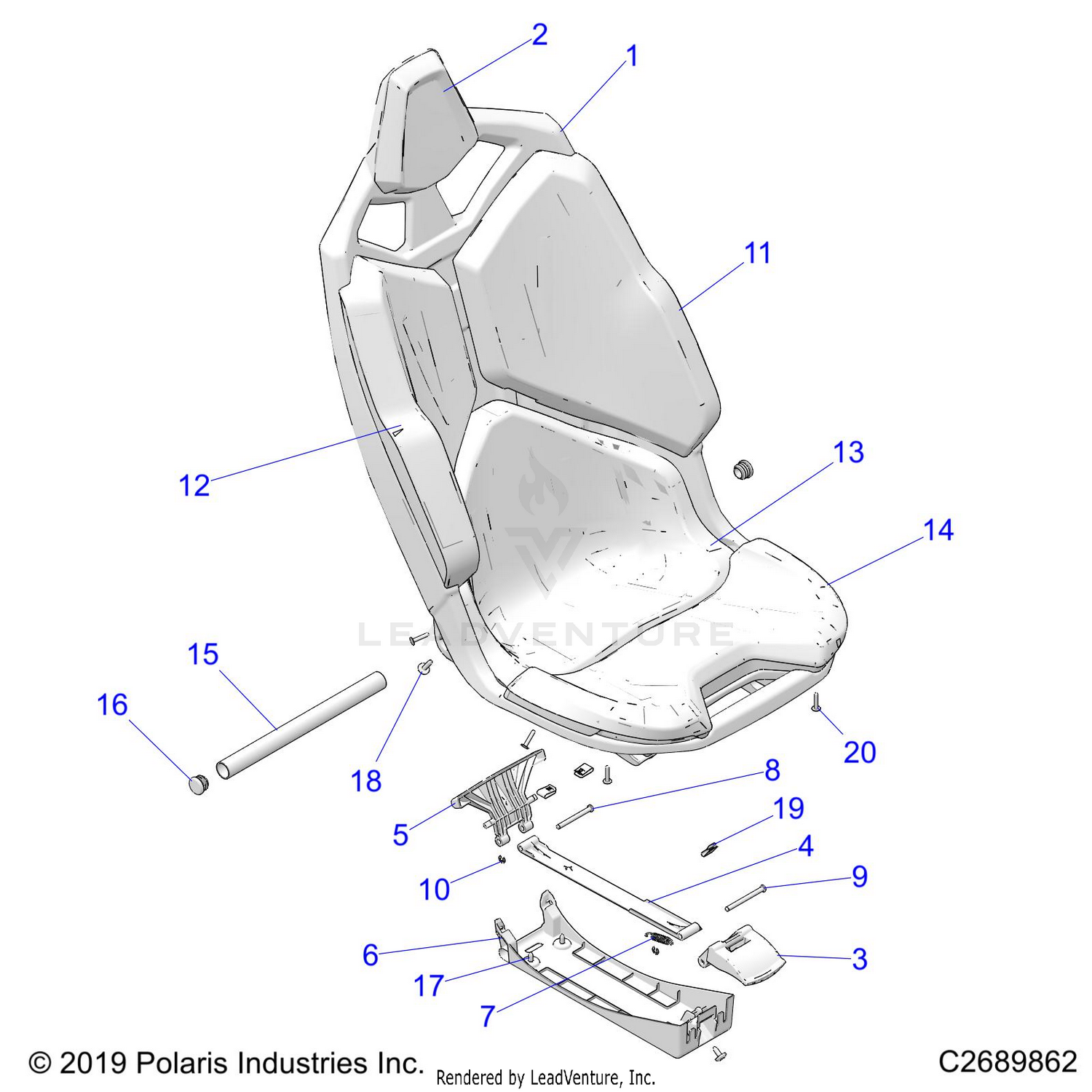

Body, Seat Asm.,front - Z24rmd2kah/al/bh/bl (c2689862) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM-SEAT,1PC,A.GRAY/LL,GR ST
2692032
|
$544.99 | ||
|
Unavailable |
|||
|
#1
ASM-SEAT,1PC,BLK/PBLUE,GR ST
2690336
|
$539.99 | ||
|
Unavailable |
|||
|
#2
ASM-HEADREST,BLK
2691819
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
LEVER-RELEASE,SEAT
5459945
|
$29.99 | ||
|
Unavailable |
|||
|
#4
LINK-RELEASE,SEAT
5459946
|
$54.99 | ||
|
Unavailable |
|||
|
#5
RELEASE-SEAT
5459947
|
$34.99 | ||
|
Unavailable |
|||
|
#6
COVER-RELEASE,SEAT
5454899
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING-RELEASE,SEAT
7045065
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN-RELEASE,SEAT
7662361
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN-LINK,RELEASE,SEAT
7662362
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
E-CLIP-M5,SS,0600101
7710568
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
ASM-BOLSTER,LH,BLK/PBLUE,GR ST
2690337
|
$94.99 | ||
|
Unavailable |
|||
|
#11
ASM-BOLSTER,LH,A.GRAY/LL,GR ST
2692033
|
$89.99 | ||
|
Unavailable |
|||
|
#12
ASM-BOLSTER,RH,BLK/PBLUE,GR ST
2690338
|
$94.99 | ||
|
Unavailable |
|||
|
#12
ASM-BOLSTER,RH,A.GRAY/LL,GR ST
2692034
|
$89.99 | ||
|
Unavailable |
|||
|
#13
ASM-BOTTOM,RR,BLACK,C-GRAY ST
2690339
|
$114.99 | ||
|
Unavailable |
|||
|
#13
ASM-BOTTOM,RR,A.GRAY,GR ST
2692035
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
ASM-BOTTOM,FRT,BLK/PBLUE,GR ST
2690340
|
$109.99 | ||
|
Unavailable |
|||
|
#14
ASM-BOTOM,FRONT,A.GRAY/LL,GRST
2692036
|
$109.99 | ||
|
Unavailable |
|||
|
#15
TUBE-SEAT SHELL,ECOAT
5340974-329
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLUG-END CAP,.88 DIA,RIBBED
5432831
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCR-M6X1X16 TR/TX-M
7518936
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCR-TXTH-M6X1.0X25 ZFB
7519650
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
NUT-M6-1.0, U-TYPE (2.5-3.8)
7547674
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
RVT-3/16(.187-.375)AL-AL/BULBX
7621479
|
$2.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
