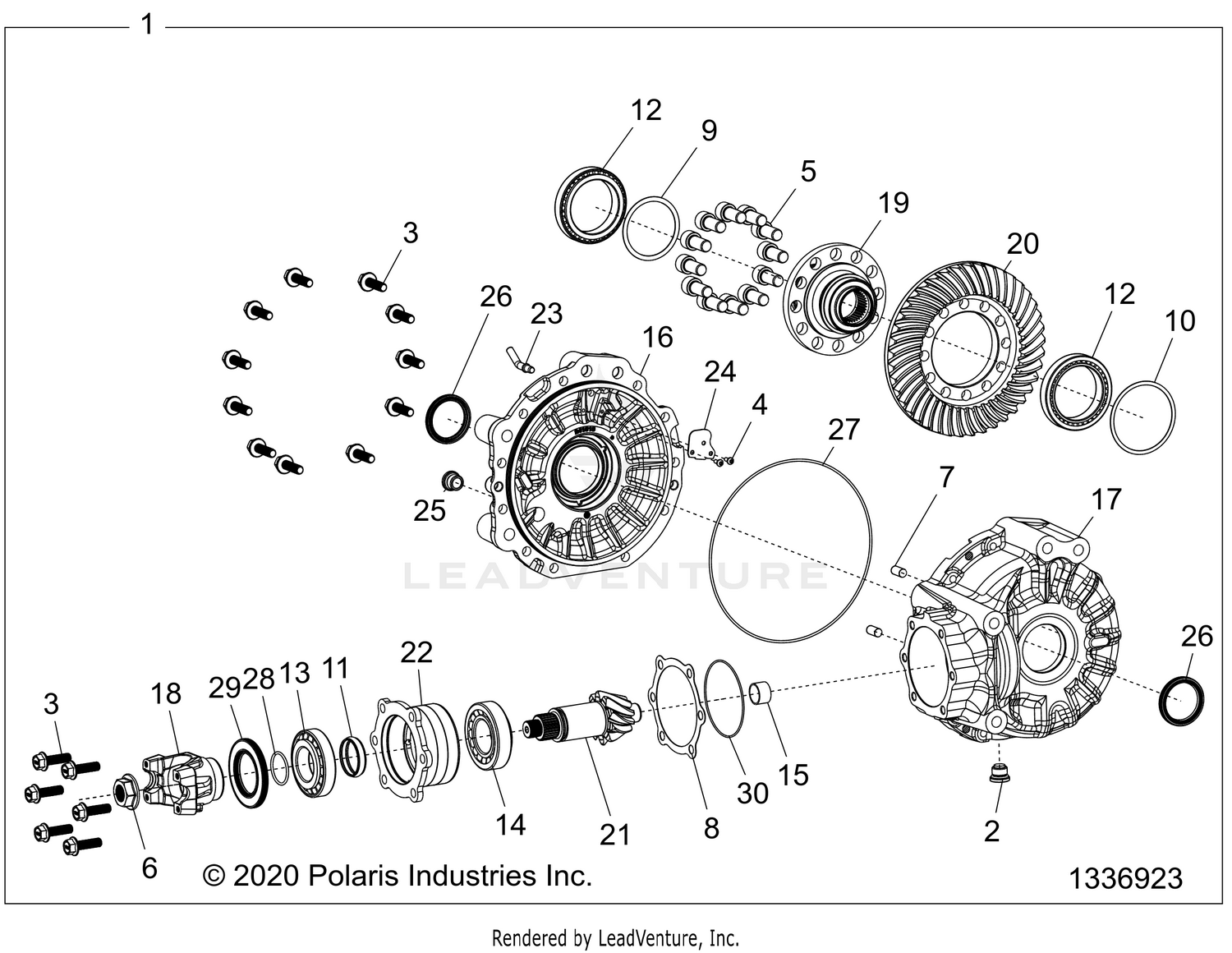

Drive Train, Gearcase, Rear - Z24rmd2kah/al/bh/bl (1336923) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM-GEARCASE,REAR
1336923
|
$3,784.99 | ||
|
Unavailable |
|||
|
#2
PLUG, M18 X 1.5 MAGNETIC
3234756
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCR-HXFLG M10X1.5X35
3236460
|
$12.99 | ||
|
Unavailable |
|||
|
#4
SOCKET-TRX PH M4X0.7X10(105523
3236301
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW,SHCS,M14-1.5 X 30,12.9
3236740
|
$29.99 | ||
|
Unavailable |
|||
|
#6
NUT, HEX, M20 X 1.5
7547656
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN-DOWEL,10MMX20MM
3236462
|
$29.99 | ||
|
Unavailable |
|||
|
#8
SHIM-114ODX96ID
3236463
|
$84.99 | ||
|
Unavailable |
|||
|
#9
SHIM-76.6ODX65.72ID
3236464
|
$224.99 | ||
|
Unavailable |
|||
|
#10
SHIM-88ODX79.2ID
3236465
|
$319.99 | ||
|
Unavailable |
|||
|
#11
SLEEVE-CRUSH
3236466
|
$64.99 | ||
|
Unavailable |
|||
|
#12
BEARING-TAPERED,32913JR
3236467
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING-TAPERED,32207J
3236468
|
$54.99 | ||
|
Unavailable |
|||
|
#14
BEARING-TAPERED,32207
3236469
|
$54.99 | ||
|
Unavailable |
|||
|
#15
BEARING-PLAIN,22X25X15.25
3236470
|
$19.99 | ||
|
Unavailable |
|||
|
#16
COVER-MACHINED
3236472
|
$604.99 | ||
|
Unavailable |
|||
|
#17
CASE-MACHINED
3239263
|
$979.99 | ||
|
Unavailable |
|||
|
#18
YOKE-26T
3236476
|
$299.99 | ||
|
Unavailable |
|||
|
#19
HUB-OUTPUT
3236741
|
$524.99 | ||
|
Unavailable |
|||
|
#20
GEAR-RING,41T
3236742
|
$329.99 | ||
|
Unavailable |
|||
|
#21
GEAR-PINION,10T,SPIRAL
3239264
|
$369.99 | ||
|
Unavailable |
|||
|
#22
BEARING-CARTRIDGE
3236477
|
$159.99 | ||
|
Unavailable |
|||
|
#23
PLUG-EXPANSION,20 X 7
3236578
|
$17.99 | ||
|
Unavailable |
|||
|
#24
DEFLECTOR
3236478
|
$34.99 | ||
|
Unavailable |
|||
|
#25
PLUG, M18 X 1.5
3234755
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SEAL-40X52X6TG to SEAL,TRIPLE LIP,46X58X6 VITON
3236479
|
$64.99 | ||
|
Unavailable |
|||
|
#27
O-RING 2-173
3236480
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
O-RING 2-153
3236481
|
$29.99 | ||
|
Unavailable |
|||
|
#29
SEAL-TRIPLE LIP,50X82X7,VITON
3236483
|
$29.99 | ||
|
Unavailable |
|||
|
#30
O-RING 2-043
3236482
|
$29.99 | ||
|
Unavailable |
|||
