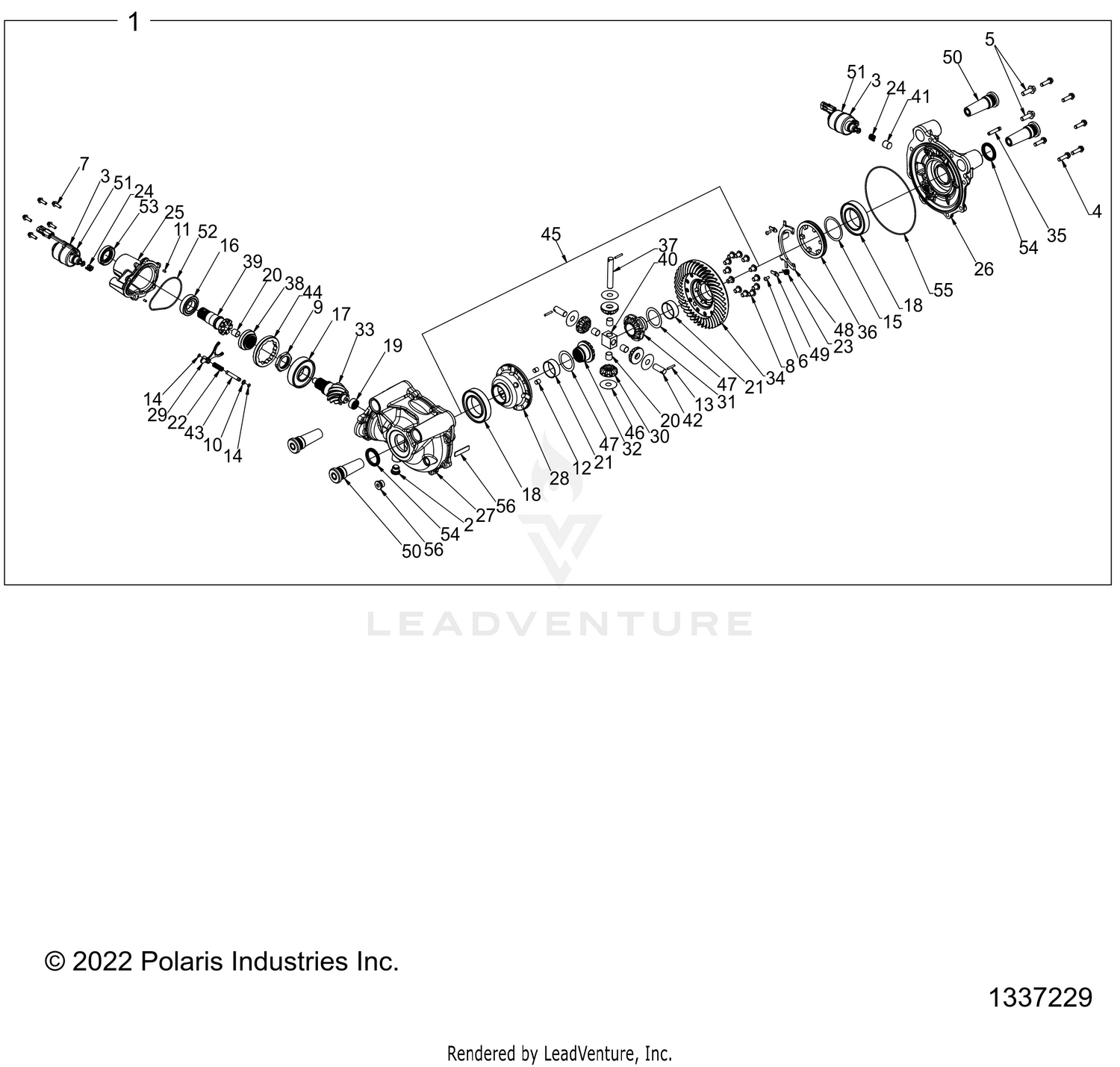

Drive Train, Gearcase, Front, Internals - Z24rmd2kah/al/bh/bl (1337229) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM-GEARCASE,FRONT,ISOL,8K
1337229
|
$2,704.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLUG, M18 X 1.5 MAGNETIC
3234756
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CABLE-TIE,10-102MM,WEATH.-RES.
7080761
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW-HEXFLANGEHEAD,M8X1.25X30
3234898
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, HEX FLANGE HEAD, M10 X 1.5 X 30
3234634
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW-SOCK,BUTTON HD,M5X.8X1
3239227
|
$12.99 | ||
|
Unavailable |
|||
|
#7
SCREW, HEX FLANGE HEAD , M6 X 1 X 20
3239475
|
$12.99 | ||
|
Unavailable |
|||
|
#8
SCREW, 6-LOBE BUTTON HD M10 X 1.5 X 13
3239568
|
$24.99 | ||
|
Unavailable |
|||
|
#9
NUT, HEX PINION BEARING , M35 X 1.5-6H X 8.00
3239229
|
$29.99 | ||
|
Unavailable |
|||
|
#10
WASHER, 8.15 X 12.00 X 1.00
3239567
|
$24.99 | ||
|
Unavailable |
|||
|
#11
PIN, DOWEL, M4X8
3235715
|
$7.99 | ||
|
Unavailable |
|||
|
#12
PIN, DOWEL , 10MM X 14MM
3239230
|
$29.99 | ||
|
Unavailable |
|||
|
#13
PIN, DOWEL , .1562 X 1
3239325
|
$12.99 | ||
|
Unavailable |
|||
|
#14
RING, RETAINING EXT CG-31SJ
3239569
|
$24.99 | ||
|
Unavailable |
|||
|
#15
SHIM, 66.30 X 55.50
3239232
|
$289.99 | ||
|
Unavailable |
|||
|
#16
BEARING, BALL , 6006 30 X 55 X 13
3239460
|
$19.99 | ||
|
Unavailable |
|||
|
#17
BEARING, BALL
3235099
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING, BALL , 55 X 90 X 18
3239233
|
$64.99 | ||
|
Unavailable |
|||
|
#19
BEARING, NEEDLE .5625 X .750 X .500
3239570
|
$59.99 | ||
|
Unavailable |
|||
|
#20
BEARING, PLAIN , 14 X 16 X 15
3239443
|
$24.99 | ||
|
Unavailable |
|||
|
#21
BEARING, PLAIN , 1.625 X 1.781 X .685
3239235
|
$54.99 | ||
|
Unavailable |
|||
|
#22
SPRING, COMPRESSION , 10.80 OD X 9.02 ID X 0.89 WIRE
3239461
|
$154.99 | ||
|
Unavailable |
|||
|
#23
SPRING, TORSION , RETURN
3239411
|
$154.99 | ||
|
Unavailable |
|||
|
#24
SPRING, COMPRESSION , .54 OD X.44 ID X.050 WIRE
3239412
|
$14.99 | ||
|
Unavailable |
|||
|
#25
HOUSING, DISCONNECT MACH
3239571
|
$209.99 | ||
|
Unavailable |
|||
|
#26
COVER, FRONT DIFF MACH
3239572
|
$329.99 | ||
|
Unavailable |
|||
|
#27
CASE, FRONT MAIN MACH
3239573
|
$409.99 | ||
|
Unavailable |
|||
|
#28
CARRIER, DIFFERENTIAL MACH
3239574
|
$179.99 | ||
|
Unavailable |
|||
|
#29
FORK, DISCONNECT SHIFT
3239575
|
$69.99 | ||
|
Unavailable |
|||
|
#30
PINION, 10T BEVEL
3239438
|
$84.99 | ||
|
Unavailable |
|||
|
#31
GEAR, OUTPUT , 14T MACH
3239243
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
GEAR, OUTPUT , 14T MACH
3239244
|
$154.99 | ||
|
Unavailable |
|||
|
#33
PINION, 10T SPIRAL BEVEL
3239576
|
$154.99 | ||
|
Unavailable |
|||
|
#34
GEAR, RING 41T
3239577
|
$369.99 | ||
|
Unavailable |
|||
|
#35
TUBE, VENT , 1/4" HOSE
3239296
|
$39.99 | ||
|
Unavailable |
|||
|
#36
DOG, ENGAGEMENT
3239248
|
$104.99 | ||
|
Unavailable |
|||
|
#37
PIN, DIFFERENTIAL
3239249
|
$64.99 | ||
|
Unavailable |
|||
|
#38
COLLAR, SHIFT 25T
3239464
|
$124.99 | ||
|
Unavailable |
|||
|
#39
SHAFT, DISCONNECT 25T
3239465
|
$109.99 | ||
|
Unavailable |
|||
|
#40
COUPLER, PIN
3239489
|
$109.99 | ||
|
Unavailable |
|||
|
#41
CUP
3239415
|
$54.99 | ||
|
Unavailable |
|||
|
#42
PIN, DIFFERENTIAL
3239442
|
$54.99 | ||
|
Unavailable |
|||
|
#43
RAIL, SHIFT SHAFT
3239580
|
$39.99 | ||
|
Unavailable |
|||
|
#44
NUT, LOCK M85 X 2.0 LH
3239578
|
$54.99 | ||
|
Unavailable |
|||
|
#45
SUBASSEMBLY, DIFFERENTIAL 4.10 RATIO, 4 SPIDER
3239581
|
$894.99 | ||
|
Unavailable |
|||
|
#46
WASHER, THRUST , 14.25 X 43.25 X 0.38
3239253
|
$12.99 | ||
|
Unavailable |
|||
|
#47
WASHER, THRUST , 42.10 X 56.25 X 0.38
3239254
|
$29.99 | ||
|
Unavailable |
|||
|
#48
CONTROL ARM, SHIFT , FRONT DIFF
3239417
|
$74.99 | ||
|
Unavailable |
|||
|
#49
STRAP, SHIFT FORK
3239582
|
$29.99 | ||
|
Unavailable |
|||
|
#50
MOUNT, ISOLATOR
5418248
|
$49.99 | ||
|
Unavailable |
|||
|
#51
SOLENOID
3235478
|
$364.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
O-RING, 2-154
3239583
|
$34.99 | ||
|
Unavailable |
|||
|
#53
SEAL, TRIPLE LIP , 1.181 X 2.047 X 0.394
3239468
|
$39.99 | ||
|
Unavailable |
|||
|
#54
SEAL, OIL, 37 X 48 X 6 TG
3239328
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#55
O-RING, 2-168
3239584
|
$49.99 | ||
|
Unavailable |
|||
|
#56
PLUG, M18 X 1.5
3234755
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
