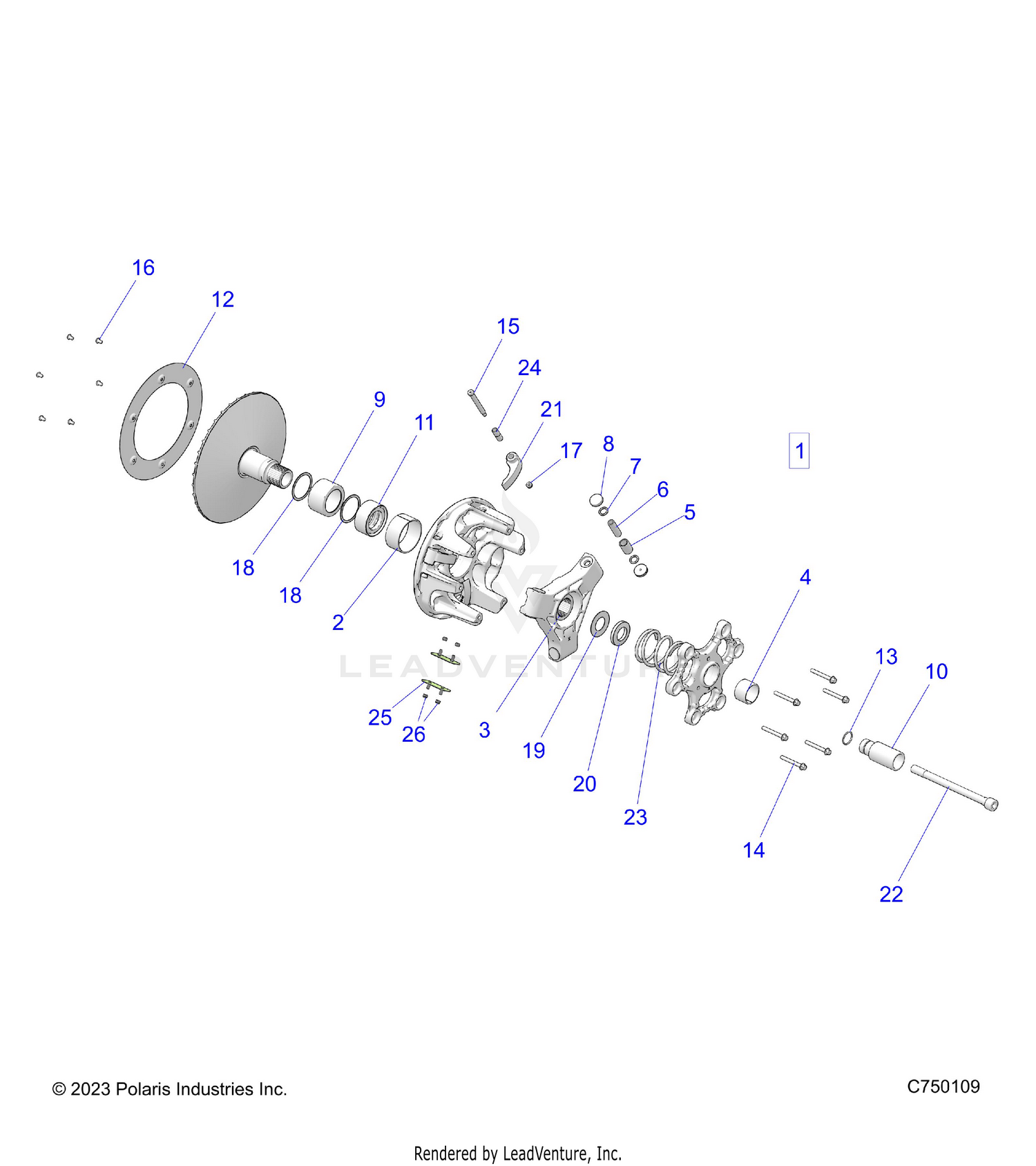

Drive Train, Primary Clutch - Z24rmd2kah/al/bh/bl (c750109) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM-DRIVE CLUTCH,RZR,G4
1327340
|
$889.99 | ||
|
Unavailable |
|||
|
#1
ASM-DRIVE CLUTCH,BASIC
1327341
|
$804.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BUSHING-DU,60X65X30
3515116
|
$24.99 | ||
|
Unavailable |
|||
|
#3
ASM-SPIDER,36T,89.5,24 BUTTON
1323584
|
$304.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BUSHING-MU,35X39X25
3515181
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
ASM-SPIDER ROLLR,12X17X25,DP11
1323587
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN-SPIDER,8X12X40
5142278
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER-12X17X1.4,SP-21
5455244
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BUTTON-CLUTCH,24X5.25,SCP
5456312
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING-NEEDLE,45X60X35,FKM
3515117
|
$64.99 | ||
|
Unavailable |
|||
|
#10
POST-CLUTCH,OUTER
5142275
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPACER-CLUTCH,60MM
5142338
|
$44.99 | ||
|
Unavailable |
|||
|
#12
PLATE-WINDAGE,DRIVE
5267245
|
$34.99 | ||
|
Unavailable |
|||
|
#13
O-RING-020 0.875X0.0625
5416424
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCR-M6X1.0X50.0 HX/FL-Y/D
7517932
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BOLT-SHOULDER,8X65,10-24
7527984
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCR-TXBH-M5X0.8X8 SPC TRILOBE
7521023
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT-10-24-FLEX LOC-Z
7541906
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
WSHR-45.5X54X0.8,SP-21
7557138
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
WSHR-26.5X49.0X1.21 ZY3
7557139
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
WSHR-SPR,26.5X45.7X6.86,P&O
7557140
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
ASM-WEIGHT-SHIFT 38-117
1327358
|
$34.99 | ||
|
Unavailable |
|||
|
#22
SCR-HXFL,M14X1.5X180 12.9 SPC
7520950
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPRING-CLUTCH,SP
7045118
|
$39.99 | ||
|
Unavailable |
|||
|
#24
BUSHING-WEIGHT,8X10X30,MU
5456708
|
$3.99 | ||
|
Unavailable |
|||
|
#25
ASM-CLUTCH WEAR
1327285
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT-M5X.8,HX NYL-Y
7546601
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
