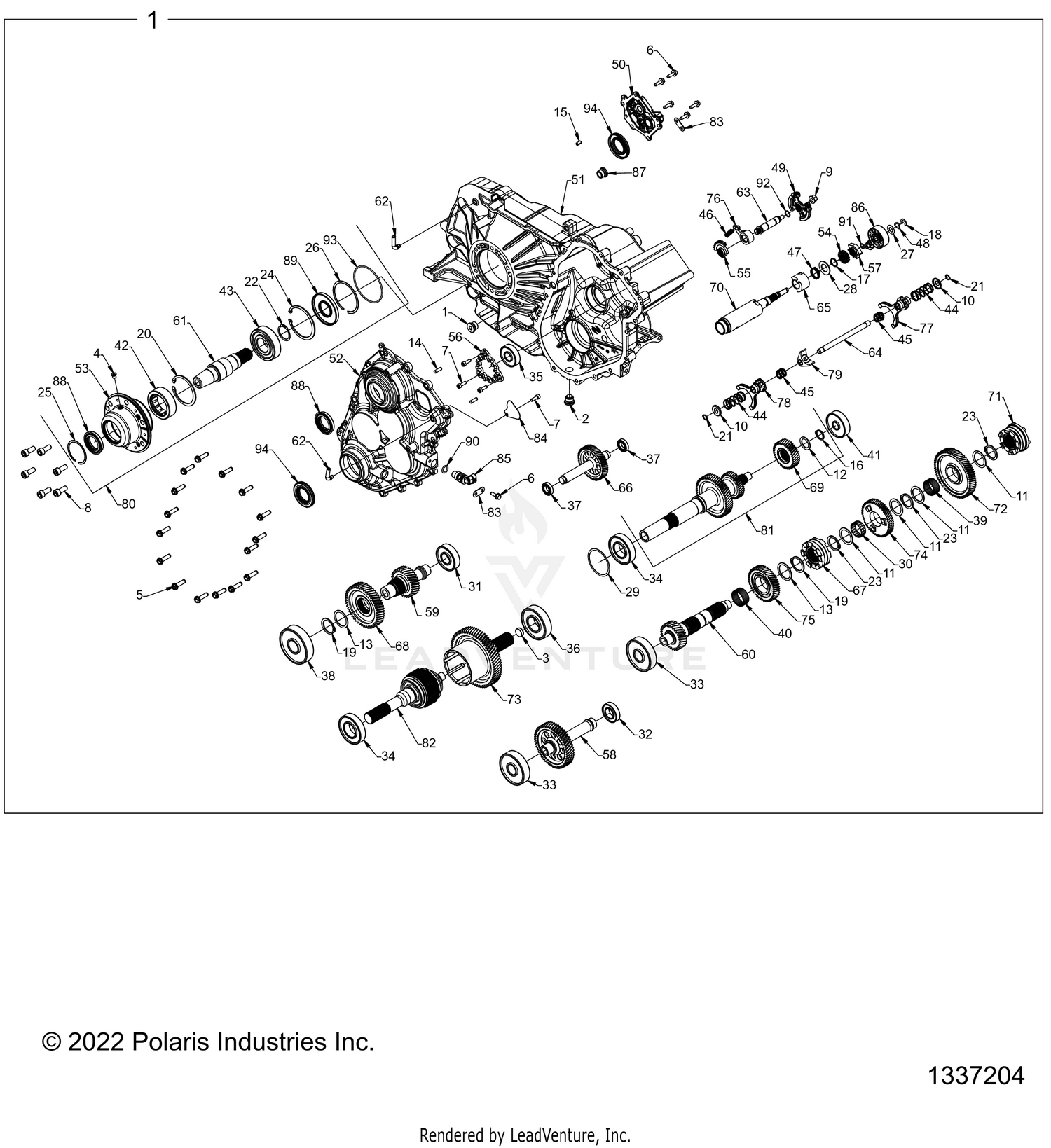

Drive Train, Gearcase, Main, Internals - Z24rmd2kah/al/bh/bl (1337204) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM-GEARCASE,LIMT,COMPLETE,MP
1337204
|
$4,864.99 | ||
|
Unavailable |
|||
|
#2
PLUG, M18 X 1.5 MAGNETIC
3234756
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLUG-EXPANSION,20 X 7
3236578
|
$17.99 | ||
|
Unavailable |
|||
|
#4
PLUG, HOLLOW HEX 5/16-24
3236579
|
$7.99 | ||
|
Unavailable |
|||
|
#5
SCREW-HEXFLANGEHEAD,M8X1.25X30
3234898
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, HEX FLANGE HEAD, M6 X 1 X 20
3235206
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 18
3235332
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, SOCKET HEAD, CAP, M10 X 1.5 X 25
3236580
|
$13.99 | ||
|
Unavailable |
|||
|
#9
NUT, LOCK HEX FLANGE, NYLON M8 X 1.25
3235210
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER-CUP
3234091
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER-32.3X42X1.5(115288)
3235211
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, 22.70 X 32.0 X 1.5
3236581
|
$7.99 | ||
|
Unavailable |
|||
|
#13
WASHER, 35.3 X 44 X 1.5
3236582
|
$8.99 | ||
|
Unavailable |
|||
|
#14
PIN, DOWEL 6 X 20
3234330
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, SPRING, SLOTTED 6 X 12
7043746
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
RING, RETAINING BASIC EXTERNAL
7710434
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
RING,RETAINING BASIC,EXTERNAL 0.75
3233045
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
RING, RETAINING BASIC EXTERNAL
3233834
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
RING, RETAINING, SHAFT, DIA. 1.375
3233364
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
RING, RETAINING BASIC INTERNAL 72
3236619
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
RING,RETAINING BASIC,EXTERNAL 0.428
3234090
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
RING, RETAINING EXTERNAL
7710917
|
$24.99 | ||
|
Unavailable |
|||
|
#23
RING-RETAIN,EXT,MSR-32(130296)
3235214
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
RING, RETAINING BASIC INTERNAL 80
7710912
|
$29.99 | ||
|
Unavailable |
|||
|
#25
RING, RETAINING KLM-58
3236700
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
RING, RETAINING KLM-80
7710918
|
$19.99 | ||
|
Unavailable |
|||
|
#27
WASHER,THRUST,0.446 X 0.88 X 0.025
3234642
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
SPACER, 19.4 X 34.0 X 2.0
3235883
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
SHIM, 70 OD X 62 ID
3236585
|
$84.99 | ||
|
Unavailable |
|||
|
#30
BEARING, NEEDLE
3233014
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BEARING
3233020
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
Bearing, Ball
3233305
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
BEARING, BALL, 6405 C3 25X80X21
3235539
|
$64.99 | ||
|
Unavailable |
|||
|
#34
BEARING,BALL 6207 C3 35X72X17
3234065
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
BEARING, BALL, 6304 C3 20X52X15
3236587
|
$64.99 | ||
|
Unavailable |
|||
|
#36
BEARING, BALL
3235099
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
BEARING, BALL 6903 17 X 30 X 7
3235807
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
BEARING, BALL, 6406 C3, 30 X 90 X 23
3236588
|
$79.99 | ||
|
Unavailable |
|||
|
#39
BEARING, NEEDLE, 32 X 37 X 17
3236589
|
$29.99 | ||
|
Unavailable |
|||
|
#40
BEARING, NEEDLE, CAGE ASSY, 35 X 40 X 17
3236734
|
$34.99 | ||
|
Unavailable |
|||
|
#41
BEARING, BALL, 6403 C3 17X62X17
3236590
|
$64.99 | ||
|
Unavailable |
|||
|
#42
BEARING, ROLLER, RNU2207
3236591
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
BEARING, DGB 6307CO
3236592
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
SPRING,COMPRESSION, .92 O.D. X 2.000
3234078
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
SPRING, COMPRESSION, 0.46 I.D. X 0.73
3234089
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
SPRING, COMPRESSION 0.36 O.D. X 1.125
3234578
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
SPRING, TORSION
3235885
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
WASHER-SPRING,210393
3235327
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
PULLEY, SHIFT
3236593
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
COVER, SECTOR GEARS MACH
3235809
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
CASE, MACH
3236594
|
$564.99 | ||
|
Unavailable |
|||
|
#52
COVER, MACH
3236716
|
$399.99 | ||
|
Unavailable |
|||
|
#52
SUBASSEMBLY, COVER
3239873
|
$609.99 | ||
|
Unavailable |
|||
|
#53
HOUSING, PTO MACH
3236596
|
$169.99 | ||
|
Unavailable |
|||
|
#54
GEAR, SECTOR, 16T
3233839
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#55
GEAR-SECTOR,31T
3233832
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#56
PLATE, PARK, 12 FACE
3235456
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#57
STAR, DETENT
3236638
|
$39.99 | ||
|
Unavailable |
|||
|
#58
SHAFT, IDLER 51T
3236597
|
$169.99 | ||
|
Unavailable |
|||
|
#59
SHAFT, IDLER 31T
3236598
|
$274.99 | ||
|
Unavailable |
|||
|
#60
SHAFT, REVERSE 29T
3236600
|
$179.99 | ||
|
Unavailable |
|||
|
#61
SHAFT, PTO
5142333
|
$179.99 | ||
|
Unavailable |
|||
|
#62
TUBE, VENT 90 -1/4 INCH HOSE
3234230
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#63
SHAFT-SHIFT(352973)
3235238
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#64
RAIL-SHIFT SHAFT(353622)
3235542
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#65
CAM, PARK
3235983
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#66
SHAFT, REVERSE 53T
3236603
|
$264.99 | ||
|
Unavailable |
|||
|
#67
ENGAGEMENT DOG, 6-FACE
3236735
|
$104.99 | ||
|
Unavailable |
|||
|
#68
GEAR, IDLER 49T
3236604
|
$154.99 | ||
|
Unavailable |
|||
|
#69
GEAR, LOW 37T
3236605
|
$54.99 | ||
|
Unavailable |
|||
|
#70
DRUM, SHIFT MACH
3236606
|
$174.99 | ||
|
Unavailable |
|||
|
#71
SHIFT DOG, PARK
3236607
|
$124.99 | ||
|
Unavailable |
|||
|
#72
GEAR, LOW 68T
3236608
|
$204.99 | ||
|
Unavailable |
|||
|
#73
GEAR, OUTPUT 67T
3236610
|
$474.99 | ||
|
Unavailable |
|||
|
#74
GEAR, REVERSE 56T
3236758
|
$154.99 | ||
|
Unavailable |
|||
|
#75
GEAR, HIGH 47T
3236759
|
$114.99 | ||
|
Unavailable |
|||
|
#76
SUBASSEMBLY, PAWL, DETENT, ROLLER
3235452
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#77
SUBASSEMBLY, SHIFT FORK
3236611
|
$64.99 | ||
|
Unavailable |
|||
|
#78
SUBASSEMBLY, SHIFT FORK
3236612
|
$69.99 | ||
|
Unavailable |
|||
|
#79
SUBASSEMBLY, SHIFT COLLAR
3236736
|
$74.99 | ||
|
Unavailable |
|||
|
#80
SUBASSY, ROGUE PTO
3236733
|
$964.99 | ||
|
Available to order. Add to View Price |
|||
|
#80
SUBASSEMBLY, ROGUE PTL
3239872
|
$699.99 | ||
|
Unavailable |
|||
|
#81
SUBASSY, INPUT, 57T/39T/37T
3236771
|
$299.99 | ||
|
Unavailable |
|||
|
#82
SUBASSEMBLY, ROGUE PTL
3239506
|
$949.99 | ||
|
Unavailable |
|||
|
#83
BRACKET, WIRE HARNESS
3235350
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#84
DEFLECTOR, OIL
3239507
|
$29.99 | ||
|
Unavailable |
|||
|
#85
SENSOR-SPEED,TRANS
4013908
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#86
SWITCH, ROTARY, 2 PIN RESISTIVE
7662468
|
$54.99 | ||
|
Unavailable |
|||
|
#87
PLUG, M18 X 1.5
3234755
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#88
SEAL, VITON DBL LIP, W/SHIELD AND FLANGE, 35X52X8
3236617
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#89
SEAL, 35 X 80 X 8
3236618
|
$12.99 | ||
|
Unavailable |
|||
|
#90
O-RING, -113 VITON
3233840
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#91
O-RING, -012 VITON
3233836
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#92
O-RING, -014 VITON
3233828
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#93
O-RING 2-153
3236615
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#94
SEAL, TRIPLE LIP VITON, 35 X 62 X 8
3236616
|
$44.99 | ||
|
Unavailable |
|||
