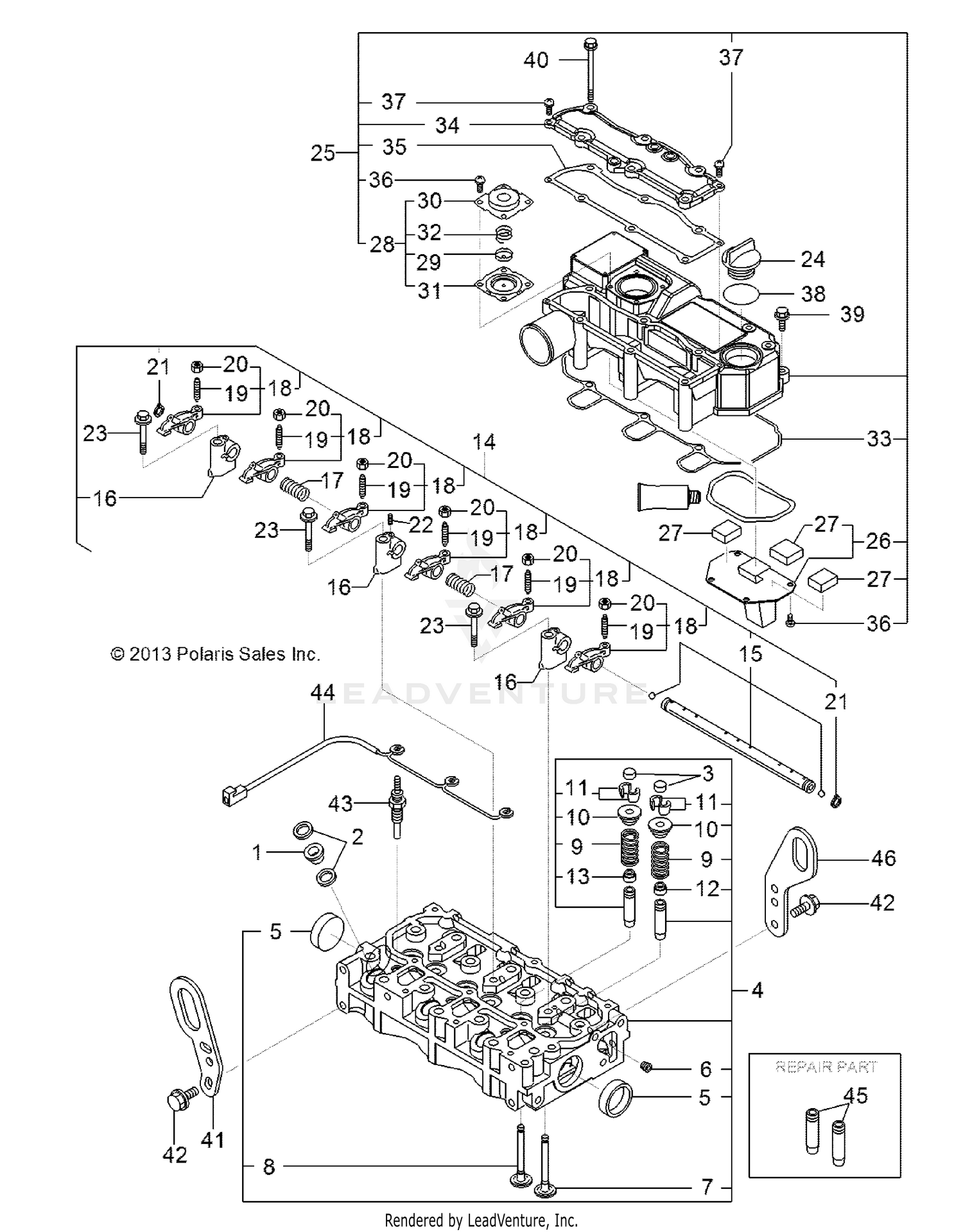

Engine, Cylinder Head And Bonnet - R141d9jda/2d9jda (49brutuscylhd13) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PROTECTOR, NOZZLE
3070039
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, NOZZLE
3070040
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP, VALVE
3070041
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
ASM., CYLINDER HEAD
3070042
|
$1,799.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLUG
3070043
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLUG
3070011
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
VALVE, INTAKE
3070044
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
VALVE, EXHAUST
3070045
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, VALVE
3070046
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
RETAINER, SPRING
3070047
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
COTTER
3070048
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEAL, VALVE STEM
3070049
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SEAL, VALVE STEM
3070050
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
ASM., ARM SUPPORT
3070051
|
$354.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
ASM., ROCKER SHAFT
3070052
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SHAFT, ROCKER ARM
3070053
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING, SHAFT
3070054
|
$7.19 | ||
|
Available to order. Add to View Price |
|||
|
#18
ASM., ROCKER ARM
3070055
|
$44.39 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, VALVE ADJUST
3070056
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
3070057
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
CIRCLIP
3070058
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW
3070059
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
3070060
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
COVER, FILLER
3070061
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
ASM., HEAD, BONNET
3070062
|
$314.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
PLATE, BAFFLE
3070063
|
$108.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BAFFLE, BREATHER
3070064
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
ASM., DIAPHRAGM
3070066
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
PLATE, CENTER
3070067
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
COVER, DIAPHRAGM
3070068
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
DIAPHRAGM
3070069
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
SPRING, DIAPHRAGM
3070070
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
GASKET, BONNET
3070071
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
COVER, BONNET
3070072
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
GASKET, BONNET COVER
3070073
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
SCREW
3070074
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
SCREW
3070076
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
O-RING
3070077
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT
3070078
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT
3070079
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
LIFTER
3070402
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT
3070080
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
PLUG, GLOW
3070081
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
CONNECTOR, GLOW PLUG
3070082
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
GUIDE, VALVE
3070083
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
LIFTER, ENGINE, FRONT
3070373
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
