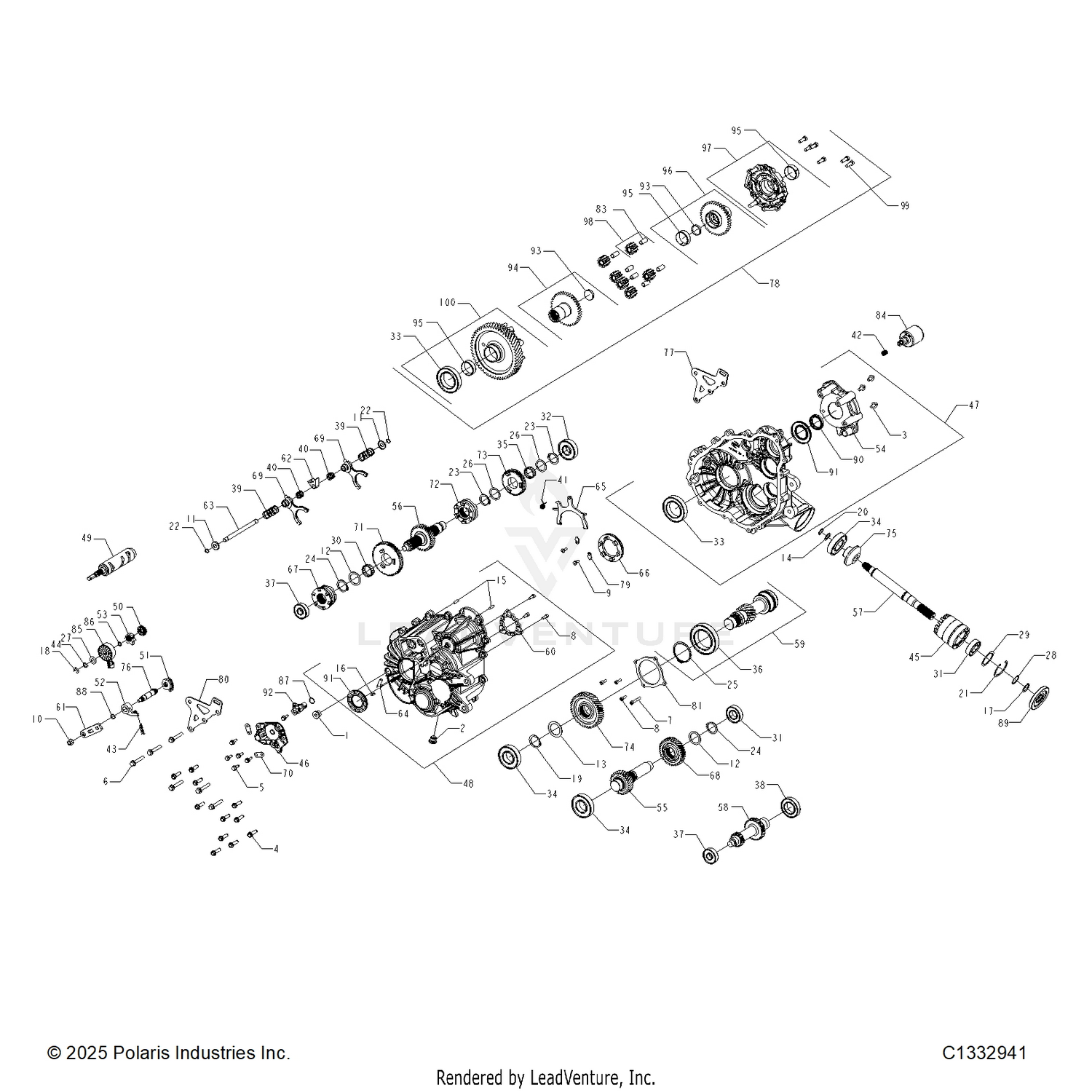

Drive Train, Main Gearcase Internals (c1332941) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
ASM., GEARCASE
1332941
|
$4,864.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
PLUG, M18 X 1.5
3234755
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLUG, M18 X 1.5 MAGNETIC
3234756
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
YOKE, SLIP
3235403
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW-HEXFLANGEHEAD,M8X1.25X30
3234898
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, HEX FLANGE HEAD, M6 X 1 X 20
3235206
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, HEX FLANGE M8 X 50
3235207
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 40
3235208
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 18
3235332
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, 6-LOBE, PAN HD M6 X 1 X 16
3234309
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, LOCK HEX FLANGE, NYLON M8 X 1.25
3235210
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER-CUP
3234091
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER-32.3X42X1.5(115288)
3235211
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER-35.6X57X1.5(115289)
3235212
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER-17.3X25X1.5(115290)
3235213
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, DOWEL 6 X 20
3234330
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, SPRING, SLOTTED 6 X 12
7043746
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
RING,RETAINING BASIC,EXTERNAL 0.984
3233106
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
RING, RETAINING BASIC EXTERNAL
3233834
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
RING, RETAINING, SHAFT, DIA. 1.375
3233364
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
RING, RETAINING, EXTERNAL SHR-66
3234318
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
RING,RETAINING BASIC,INTERNAL 2.047
3234269
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
RING,RETAINING BASIC,EXTERNAL 0.428
3234090
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
RING, RETAINING,
3234205
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
RING-RETAIN,EXT,MSR-32(130296)
3235214
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
RING-RETAIN,VSH-237(130298)
3235216
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER,THRUST,1.187 X 1.500 X .0600
3233378
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER,THRUST,0.446 X 0.88 X 0.025
3234642
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
SHIM, 1.180 OD X 0.995 ID
3234272
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
SHIM, 2.040 OD X 1.63 ID
3234273
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
BEARING,NEEDLE
3233017
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BEARING, BALL, 6205 C3 25X52X15
3233019
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
BEARING
3233020
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
BEARING-BALL 6010 C3 50 X 80 X 10
3233268
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
BEARING,BALL 6207 C3 35X72X17
3234065
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
BEARING-NEEDLE,30X35X13-CAGED
3233384
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
BEARING, BALL, 6012 C3 60 X 95 X 18
3235218
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
BEARING, BALL 6303, 17 X 47 X 14
3234652
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
BEARING-BALL 6007 C3 35 X 62 X 14
3233265
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
SPRING,COMPRESSION, .92 O.D. X 2.000
3234078
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
SPRING, COMPRESSION, 0.46 I.D. X 0.73
3234089
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
SPRING, TORSION, RETURN
3234276
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
SPRING,COMPRSSN.54ODX.44IDX.05
3234277
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
SPRING, COMPRESSION 0.36 O.D. X 1.125
3234578
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
WASHER-SPRING,210393
3235327
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
TUBE, SNORKEL MACHINED
3234278
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
COVER, SECTOR GEARS, MACHINED
3234188
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
SUBASM., CASE, LH
3235404
|
$754.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
SUBASM., CASE, RH
3235405
|
$634.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
DRUM-SHIFT,MACH.(255289)
3235463
|
$344.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50
GEAR, SECTOR, 16T
3233839
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
GEAR-SECTOR,31T
3233832
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
SUBASSEMBLY, PAWL, DETENT, ROLLER
3235452
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#53
STAR, DETENT
3235477
|
$299.99 | ||
|
Available to order. Add to View Price |
|||
|
#54
FLANGE, MOTOR
3235406
|
$238.49 | ||
|
Available to order. Add to View Price |
|||
|
#55
SHAFT-IDLER,29T(285803)
3235223
|
$134.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#56
SHAFT, REVERSE, 35T
3235407
|
$234.99 | ||
|
Available to order. Add to View Price |
|||
|
#57
SHAFT-FRONT OUTPUT(285914)
3235394
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#58
SHAFT, HELICAL, INPUT
3235408
|
$204.99 | ||
|
Available to order. Add to View Price |
|||
|
#59
SUBASM.,SHAFT
3235336
|
$469.99 | ||
|
Available to order. Add to View Price |
|||
|
#60
PLATE, PARK, 12 FACE
3235456
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#61
BELLCRANK
3235474
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#62
COLLAR-SHIFT
3234073
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#63
RAIL-SHIFT SHAFT(353622)
3235542
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#64
TUBE, VENT 90 -1/4 INCH HOSE
3234230
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#65
FORK, PIVOT SHIFT, REAR DIFF
3235455
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#66
DOG, ENGAGEMENT, 6-FACE
3234928
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#67
SHIFT DOG, PARK/LOW (353357)
3235457
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#68
GEAR, STAGE ,2 38T
3235410
|
$159.99 | ||
|
Available to order. Add to View Price |
|||
|
#69
SUBASSEMBLY, SHIFT FORK
3235454
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#70
BRACKET, WIRE HARNESS
3235350
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#71
GEAR-LOW,67T(352856)
3235232
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#72
ENGAGEMENT DOG,6-FACE(352857)
3235233
|
$159.99 | ||
|
Available to order. Add to View Price |
|||
|
#73
GEAR, 52T
3235411
|
$184.99 | ||
|
Available to order. Add to View Price |
|||
|
#74
GEAR-46T,STAGE 3(352872)
3235236
|
$134.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#75
GEAR-13T,FRONT OUTPUT(352957)
3235237
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#76
SHAFT-SHIFT(352973)
3235238
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#77
WELDMENT REAR MOUNT BRACKET63
3235399
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#78
SUBASSEMBLY, AVALANCHE, DIFFERENTIAL
3235373
|
$514.99 | ||
|
Available to order. Add to View Price |
|||
|
#79
RETAINER-FORK
3234934
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#80
BRACKET, MOUNT, REAR
3235398
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#81
COVER-BEARING,CNTR DR.
3235241
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#82
PLUG, EXPANSION 1-1/4
3233578
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#83
BEARING, PLAIN, 10 X 12 X 25
3234239
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#84
SOLENOID
3235478
|
$364.99 | ||
|
Available to order. Add to View Price |
|||
|
#85
SWITCH, ROTARY , 2 PIN RESISTIVE
7661999
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#86
O-RING, -012 VITON
3233836
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#87
O-RING, -016 VITON
3236279
|
$8.99 | ||
|
Unavailable |
|||
|
#88
O-RING, -014 VITON
3233828
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#89
SEAL, TRIPLE LIP VITON 25 X 80 X 10
3234113
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#90
SEAL-35x47x8
3234307
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#91
SEAL, TRIPLE LIP, VITON HELIX 40X70X7
3235052
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#92
SENSOR-SPEED
4082135
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#93
PLUG,EXPANSION,1 1/4
3234249
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#94
SUBASSEMBLY, 39T SIDE GEAR [INCL. PLUG]
3235374
|
$234.99 | ||
|
Available to order. Add to View Price |
|||
|
#95
BEARING, PLAIN, 40 X 44 X 15
3234241
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#96
SUBASSY, 39T SIDE GEAR [INCL. PLUG, BUSHING]
3235375
|
$234.99 | ||
|
Available to order. Add to View Price |
|||
|
#97
SUBASSEMBLY, DIFF COVER [INCL. PLUG,BUSHING]
3235376
|
$174.99 | ||
|
Available to order. Add to View Price |
|||
|
#98
GEAR SUBASSEMBLY
3234469
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#99
SCREW, CAP HH M8 X 1.25 X 25
3236169
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#100
SUBASSY, GEAR 53T [INCL. PINS, BUSHING, BEARING]
3235378
|
$499.99 | ||
|
Available to order. Add to View Price |
|||
