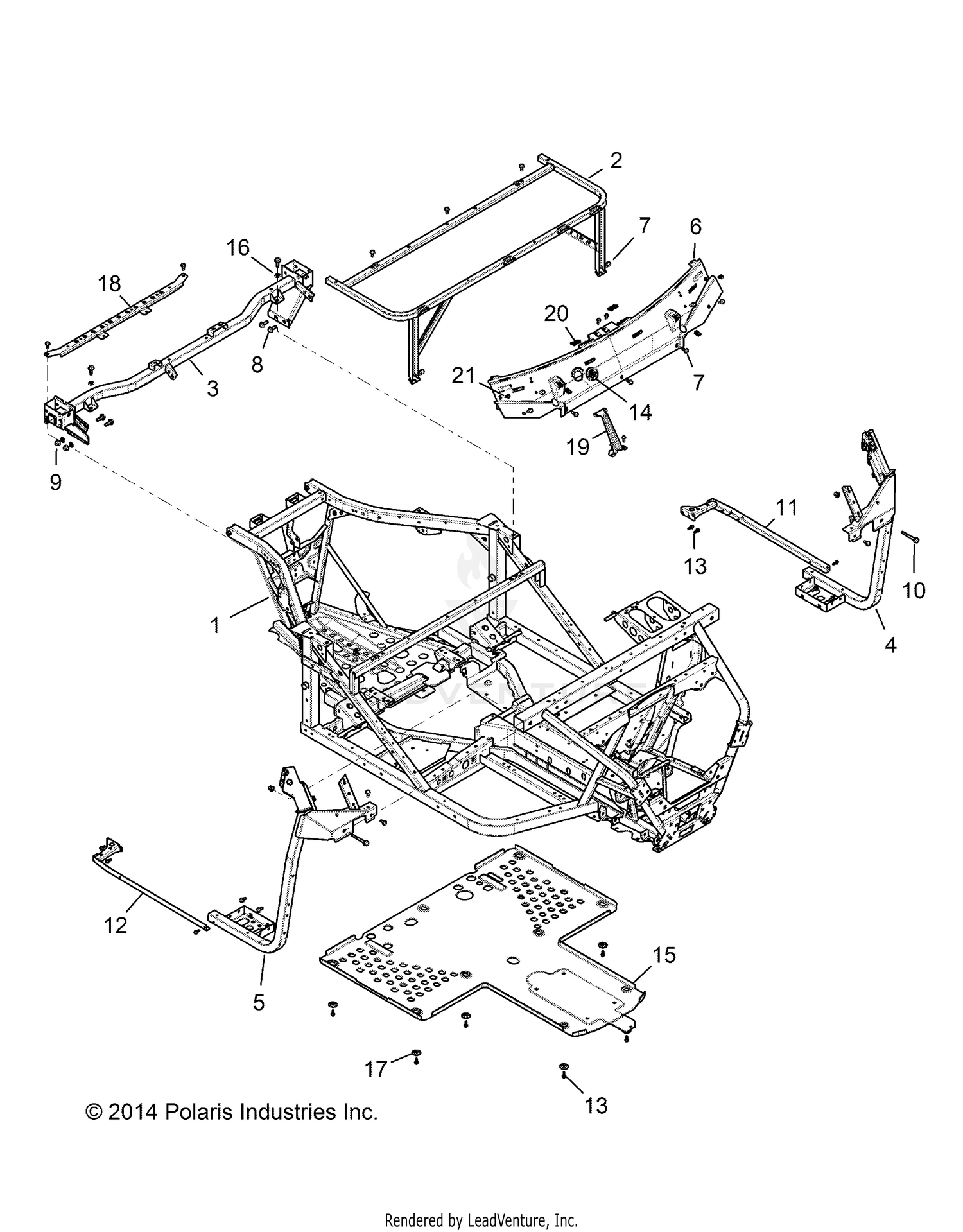

Chassis, Main Frame - R141d9jda/2d9jda (49brutusframe13) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME, MAIN, MATTE BLACK
1020490-458
|
$2,289.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BASE, CAB/SEAT, BLACK
1019513-329
|
$404.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SUPPORT, CAB, REAR, BLACK
1018295-329
|
$419.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SUPPORT, FLOOR, LH, BLACK
1020577-458
|
$304.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SUPPORT, FLOOR, RH, BLACK
1020578-458
|
$304.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, WINDSHIELD MOUNT, BLACK
5450344-070
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
7518555
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW
7519059
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
SCREW
7519363
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
ROCKER, LH, BLACK
1019087-329
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
ROCKER, RH, BLACK
1019088-329
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
GROMMET, ELECTRICAL
5414440
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLATE, SKID, BLACK
5438878-070
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER
7556153
|
$2.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
WASHER, SKID PLATE
5220646
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BRACKET, BRACE, REAR, BLACK
5255179-329
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BRACKET, WINDSHIELD, SUPPORT
5257886
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLIP-U SPEED NUT
7081305
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
RIVET, TUFLOK
7661855
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
