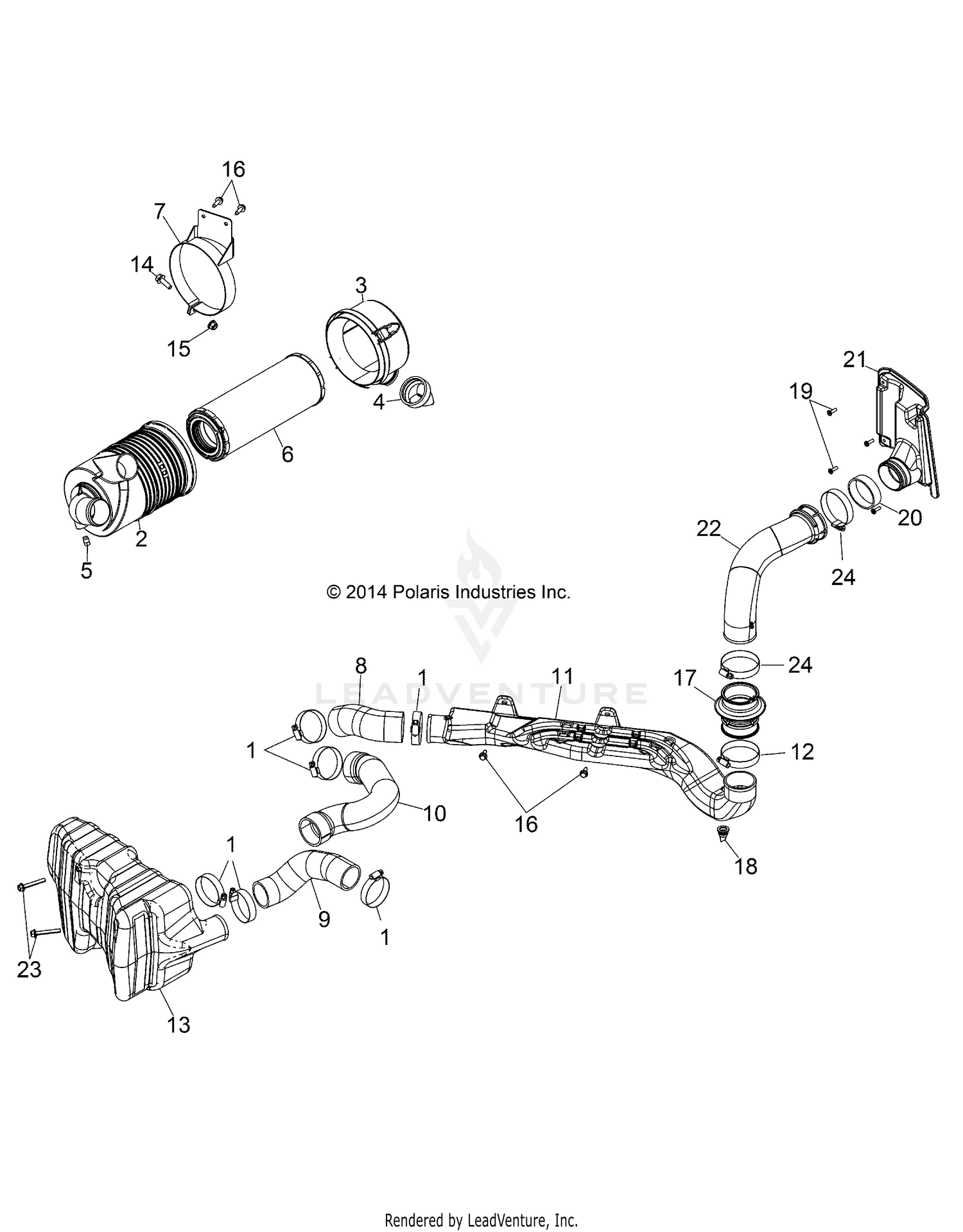

Engine, Air Intake System - R141d9jda/2d9jda (49brutusairbox13) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLAMP, HOSE
7080451
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
ASM., AIRBOX, MAIN
1240700
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
ASM., LID
1240701
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
VALVE, AIRBOX
5414468
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLUG, AIRBOX
5439688
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
FILTER-AIR
7081811
Superseded by 7082087
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
AIRBOX, MOUNT
1018472
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOSE, INTAKE
5414304
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOSE, INTAKE, ENGINE
5414471
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE, INTAKE, RESONATOR
5414473
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
DUCT, INTAKE, AIR
5439232
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP, HOSE
7080446
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOX, INTAKE, RESONATOR
5439716
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT-M8X1.25X25,HXFLG-OLIVE D
7518514
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
HOSE, INTAKE, CLOSE OFF
5414571
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLUG-DRAIN
5414472
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW
7518238
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOSE, INTAKE, BOOT
5414542
|
$8.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
FENDER, INTAKE, REAR, BLACK
5439201-070
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
DUCT, INTAKE, AIR
5439947
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW
7519257
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLAMP, HOSE
7080439
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
