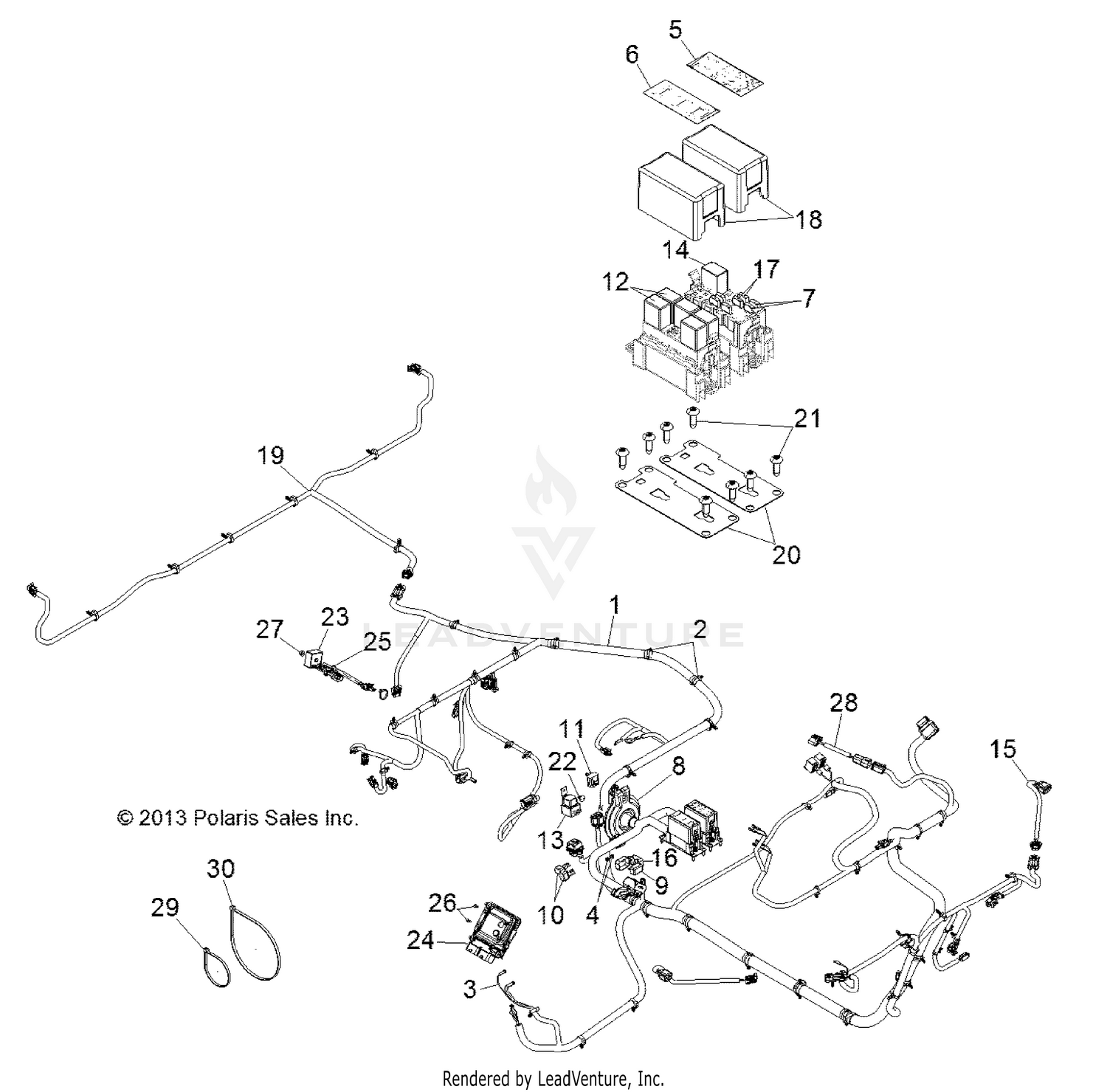

Electrical, Harness - R141d9jda (49brutusharness13d) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS, CHASSIS
2411842
|
$1,029.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLIP FIR-TREE,DIA6-33MM
7081496
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
FUSIBLE, LINK, 2.0MM
2203632
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT
7541931
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
LABEL, FUSE, RELAY BOX
7178582
|
|||
|
Unavailable |
|||
|
#6
LABEL, RELAY BOX
7178581
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#7
FUSE-MAIN,30 AMP
2434015
|
$9.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
GROMMET, CHASSIS HARNESS
5414435
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BREAKER, CIRCUIT, 40AMP
4013881
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
TVS, 30 VOLT
4013200
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER-DIAGNOSTIC,W/CLIP
4012170
|
$10.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
RELAY, MICRO
4011998
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
RELAY, SPST, SEALED
4011407
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
RELAY, SPDT, SEALED
4011284
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
HARNESS, HEADLIGHT
2412227
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOOT, CIRCUIT BREAKER
4010778
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
FUSE, 20 MINI BLADE 58V
2434017
Superseded by 4012811
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER-RELAY/FUSE CENTER
5438758
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
HARNESS, BOX
2411840
|
$48.39 | ||
|
Available to order. Add to View Price |
|||
|
#20
PLATE, FUSE MOUNT
5253675
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW
7519045
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLIP-PLASTIC DART, NYLON
7670088
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
RELAY, SOLID STATE, 9 AMP, LONG, LD
4012829
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
ECU, BASE
4012838
|
$594.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT
7518612
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW
7519091
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
HARNESS, KEY, SWITCH
2412226
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
CABLE-TIE,10-102MM,WEATH.-RES.
7080761
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
