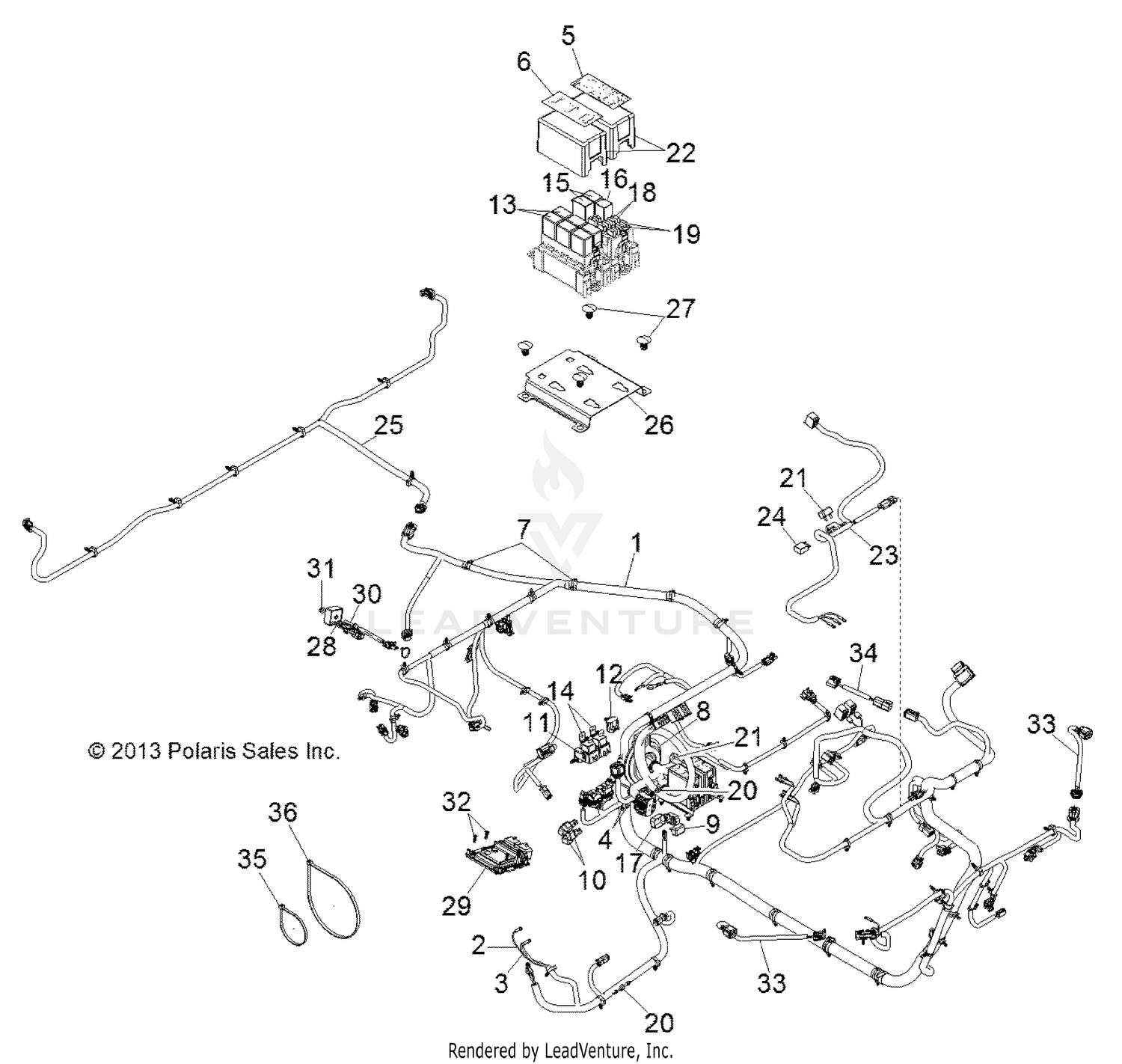

Electrical, Harness - R142d9jda (49brutusharness13m) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS, CHASSIS, CAB
2412338
|
$1,169.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
LINK, FUSIBLE, .8MM
2202607
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
LINK, FUSIBLE, 2MM
2203632
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT
7541931
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
LABEL, FUSE, RELAY BOX
7178582
|
|||
|
Unavailable |
|||
|
#6
LABEL, RELAY BOX
7178581
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLIP FIR-TREE,DIA6-33MM
7081496
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GROMMET, CHASSIS, HARNESS
5414435
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BREAKER, CIRCUIT, 40 AMP
4013881
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
TVS, 30 VOLT
4013200
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER-FUSEHOLDER
4012260
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER-DIAGNOSTIC,W/CLIP
4012170
|
$10.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
RELAY, MICRO, SPDT
4011998
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
RELAY, SPST, SEALED
4011407
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
RELAY, SPDT, SERIES 301
4011284
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
RELAY-SPST,12V,20A,EPXY,HFA
4011283
Superseded by 4016819
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOOT, CIRCUIT BREAKER
4010778
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
FUSE, 20 MINI BLADE 58V
2434017
Superseded by 4012811
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
FUSE-MAIN,30 AMP
2434015
|
$9.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
DIODE, 6 AMP
2411035
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BREAKER-CIRCUIT,20 AMP,SEALED
2410881
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
COVER-RELAY/FUSE CENTER
5438758
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
HARNESS, BOX LIFT
2412229
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
RELAY, MICRO, SPST, 35 AMP
4010948
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
HARNESS, BOX
2411840
|
$48.39 | ||
|
Available to order. Add to View Price |
|||
|
#26
PLATE, FUSE MOUNT, DOUBLE
5256157
|
$12.39 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLIP-PLASTIC DART, NYLON
7670088
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
RELAY, SOLID STATE, 9AMP, LONG, LD
4012829
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
ECU, BASE
4012838
|
$594.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT
7518612
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
RIVET, TUFLOK
7662124
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
HARNESS, HEADLIGHT
2412227
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
HARNESS, KEY, SWITCH
2412226
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
CABLE-TIE,10-102MM,WEATH.-RES.
7080761
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
