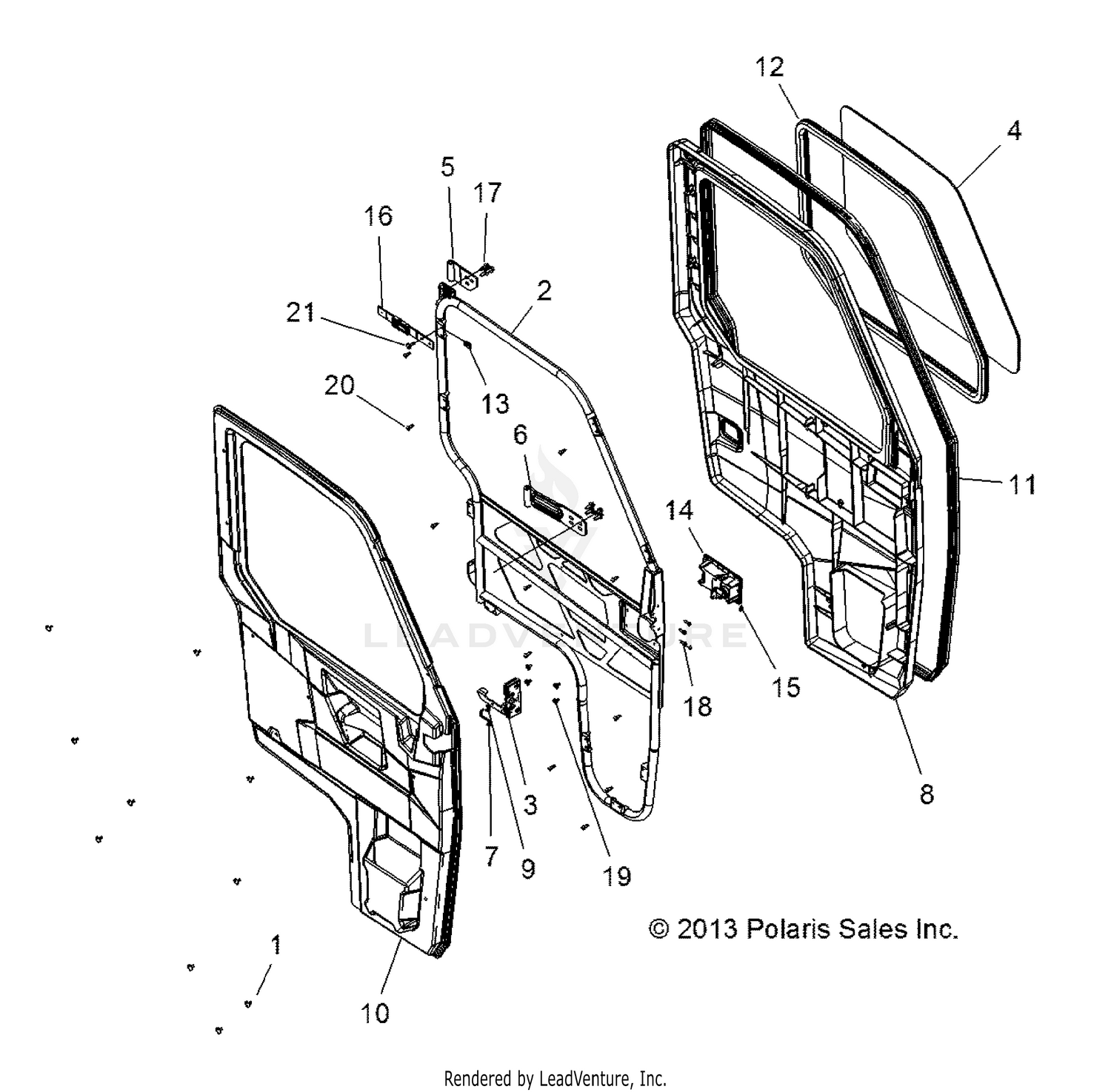

Body, Doors - R142d9jda (49brutusdoor13m) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLIP-PLASTIC DART, NYLON
7670088
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
FRAME, DOOR, LH, BLACK
1019156-458
Superseded by 1019156-067
|
$504.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
FRAME, DOOR, RH, BLACK
1019157-458
Superseded by 1019157-067
|
$494.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
ASM-LATCH,INSIDE,LH
2010388
Superseded by 2010388-S
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
ASM-LATCH,INSIDE,RH
2010389
Superseded by 2010389-S
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
GLASS-WINDOW,DOOR,FIXED,LH,TTN
2634867
Superseded by 2634867-S
|
$184.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
GLASS-WINDOW,DOOR,FIXED,RH,TTN
2634868
Superseded by 2634868-S
|
$184.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET, HINGE, DOOR, UPPER, LH, BLACK
5256141-329
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET, HINGE, DOOR, UPPER, RH, BLACK
5256142-329
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET, HINGE, DOOR, LOWER, BLACK
5256143-329
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
ROD, LATCH, LH
5337081
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
ROD, LATCH, RH
5337082
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PANEL, DOOR, OUTER, LH, BLACK
5439238-070
|
$308.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PANEL, DOOR, OUTER, RH, BLACK
5439239-070
|
$334.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLIP, ROD
5439998
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PANEL-DOOR,INNER,LH
5450557
Superseded by 5450557-S
|
$249.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PANEL-DOOR,INNER,RH
5450558
Superseded by 5450558-S
|
$259.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEAL, DOOR, LH
5510753
|
$214.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEAL, DOOR, RH
5510754
|
$214.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEAL, GLASS, WINDOW
5521990
|
$184.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLIP-U SPEED NUT
7081305
|
$2.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
ASM-HANDLE,LH OUTSIDE
7081740
Superseded by 7081740-S
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
ASM-HANDLE,RH OUTSIDE
7081814
Superseded by 7081814-S
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLIP, ROD
5439711
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
STRAP, RUBBER
5450947
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCR-HXFL-M8X1.25X20 10.9 ZPB
7517838
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
7518616
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW
7518991
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW
7519045
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCR-TXTH-M6X1.0X25 ZFB
7519650
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
