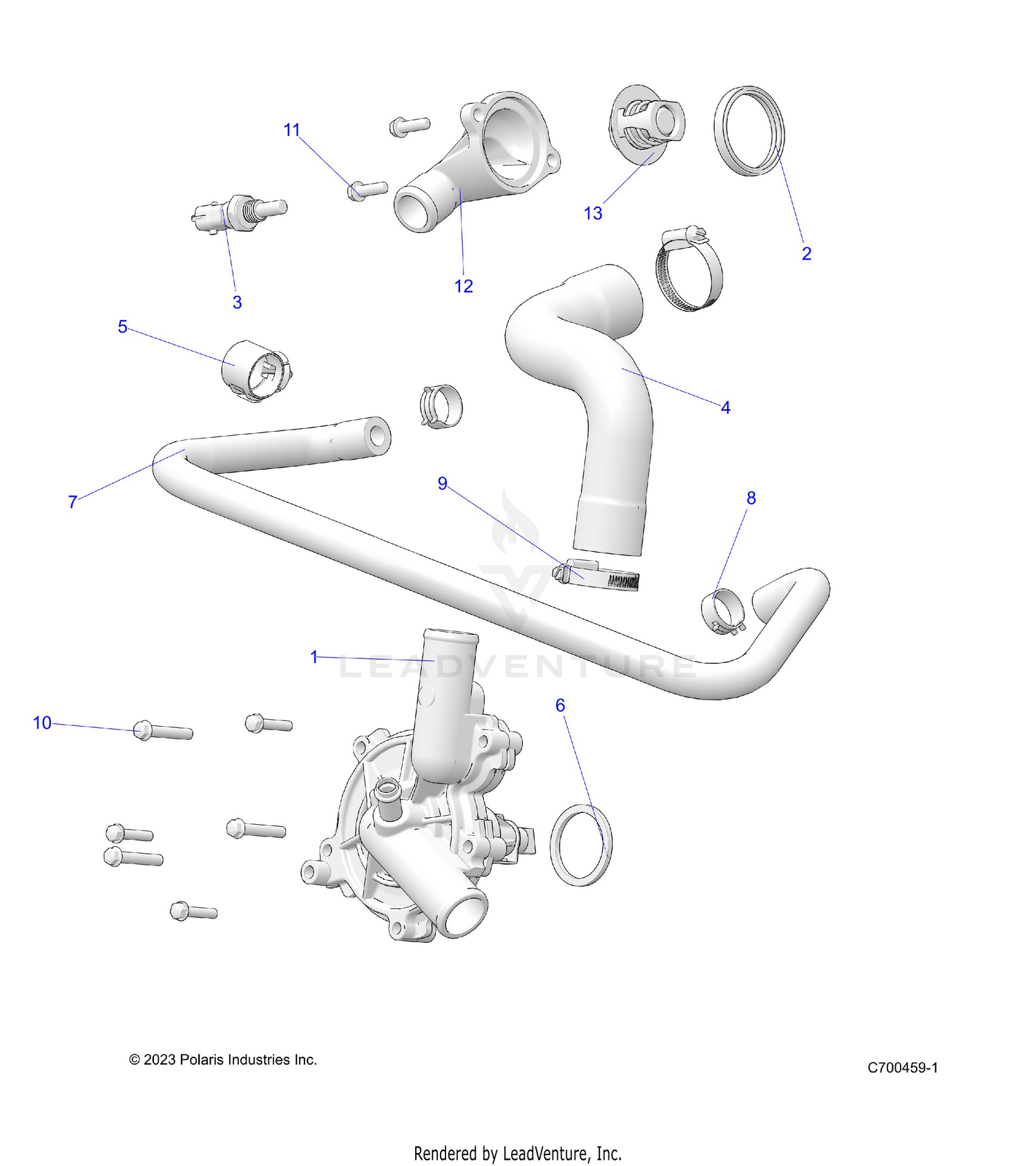

Engine, Waterpump And Bypass - R25rry99as/bs/al/bl/ap/bp/a9/b9/af/bf/ak/bk (c700459-1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM-WATERPUMP
3023086
|
$244.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SEAL-THERMOSTAT
5413948
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SENSOR-THERMISTER
4010644
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOSE-WATER PUMP OUT,FORMED
5415803
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLIP-HOSE
5415088
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
FILTER-WP
5814207
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOSE-BYPASS LINE
5416992
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP-HOSE,SPRING .81
7081026
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP-HOSE(WORM DR)25-40MM
7081192
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCR-HXFL-M6X1.0X35, W/PATCHLOK
7519280
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW-HXFL-M6X1.0X20 8.8 ZY3
7518576
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER-THERMOSTAT
5632606
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
THERMOSTAT-44M FLANGE,180F
7052496
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
