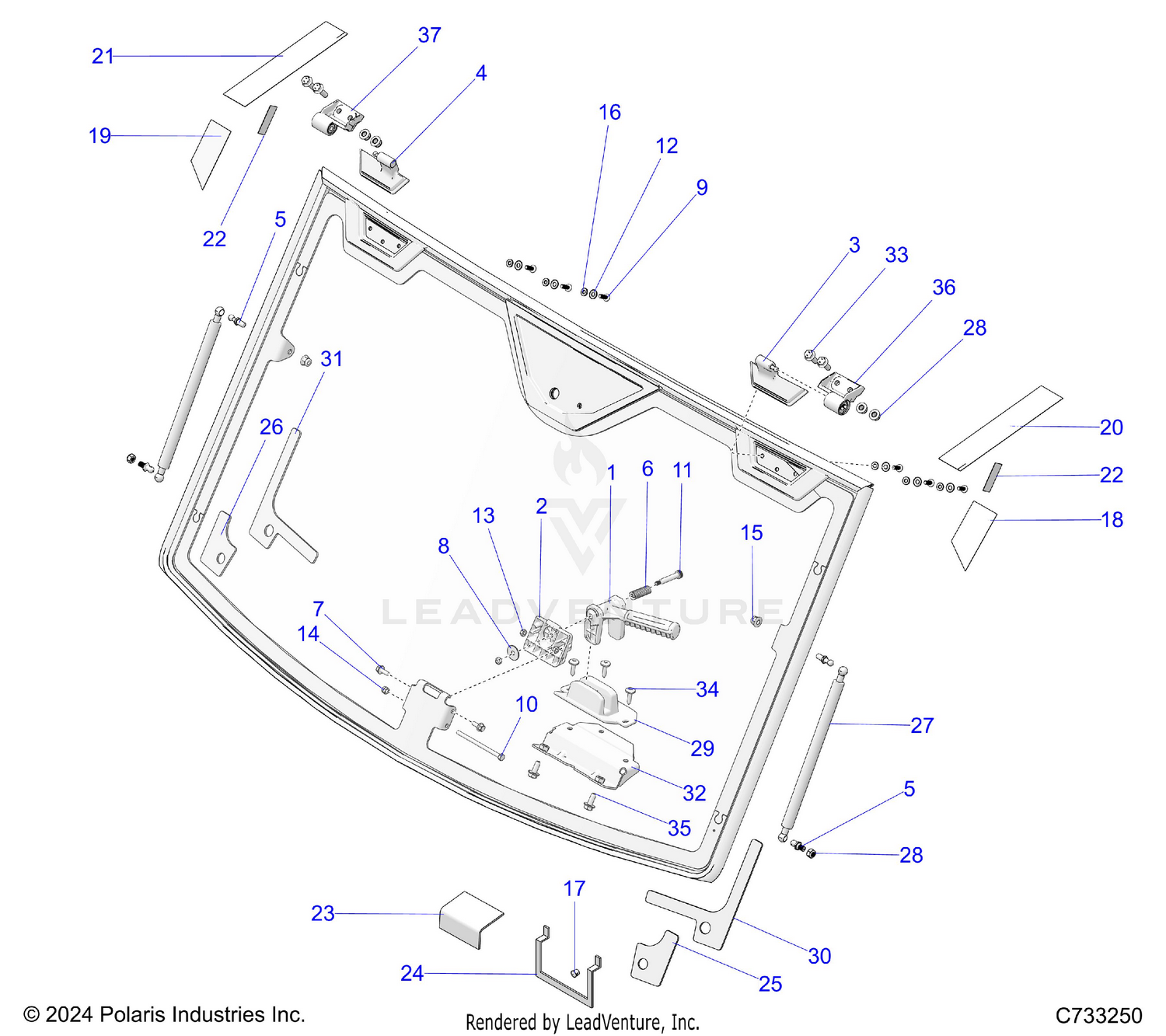

Body, Windshield, Tip-out - R25rry99as/bs/al/bl/ap/bp/a9/b9/af/bf/ak/bk (c733250) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
ASM-WNDSHLD,GL,TO
2638242
|
$1,429.99 | ||
|
Available to order. Add to View Price |
|||
|
#
K-WINDSHIELD SEALN K
2208628
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
HANDLE-WNDSLD,TO,ZS
5454735
|
$54.99 | ||
|
Unavailable |
|||
|
#2
HANDLE-RECIVER,WNDSLD,TO,TU
5457723
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAST-HINGE,LWR,LH
5639137
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAST-HINGE,LWR,RH
5639138
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BALL,END,M8X1.25
7081839
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING-HANDLE
7082817
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCR-HXFL-M6X1.0X16 8.8 ZYL NYL
7519236
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WSHR-6.7X25.4X1.0
7527934
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCR-TXTH-M6X1.0X16 SS BO T30
7527936
|
$4.99 | ||
|
Unavailable |
|||
|
#10
SCR-HH-M6X1.0X100 8.8 ZTB
7527937
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCR-SH-M6X1.0X11-M8X40 BO SPC
7527938
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WSHR-6.45X15.24X2.34
7527986
|
$5.99 | ||
|
Unavailable |
|||
|
#13
NUT-M6X1 HX R.HAND-Y
7546701
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
NUT-6 MM X 1.00-NYLOK-SS
7546704
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT-HXFL-M8X1.25 8 ZTB NYL
7548028
|
$2.99 | ||
|
Unavailable |
|||
|
#16
WSHR-5.84X12.7X2.36 RUBBER
7558759
|
$4.99 | ||
|
Unavailable |
|||
|
#17
PLUG-HOLE
7080398
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
TAPE-WINDSHIELD PLATE,ANGLE,LH
8360200
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
TAPE-WINDSHIELD PLATE,ANGLE,RH
8360201
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
TAPE-WINDSHIELD PLATE,TOP,LH
8360202
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
TAPE-WINDSHIELD PLATE,TOP,RH
8360203
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
TAPE-WINDSHIELD PLATE,CORNER
8360204
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
FOAM-SEAL,STEERING COLUMN
5815310
|
$1.99 | ||
|
Unavailable |
|||
|
#24
FOAM-BLOCK,STEERING
5815128
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SEAL-ACC WINDSHIELD,LWR,LH
5814712
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SEAL-ACC WINDSHIELD,LWR,RH
5814713
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SHOCK-GAS,TIPOUT,TTN
7043889
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BASE-HANDLE,WNDSLD,TO,ZS
5454734
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
SEAL-ACC WINDSHIELD,LONG,LH
5815483
|
$4.99 | ||
|
Unavailable |
|||
|
#31
SEAL-ACC WINDSHIELD,LONG,RH
5815484
|
$4.99 | ||
|
Unavailable |
|||
|
#32
BRKT-BACKER,TO,ZS
5276565
|
$19.99 | ||
|
Unavailable |
|||
|
#33
SCR-HXFL-M8X1.25X25 10.9 ZFB
7521332-25
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
SCR-TXTH-M6X1.0X25 ZFB
7519650
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
SCR-TFHFL-M8X1.25X20 CHS ZOD
7518555
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
MNT-WNDSHD,GL,TO,LH,G2 TTN
5633878
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
MNT-WNDSHD,GL,TO,RH,G2 TTN
5633879
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
