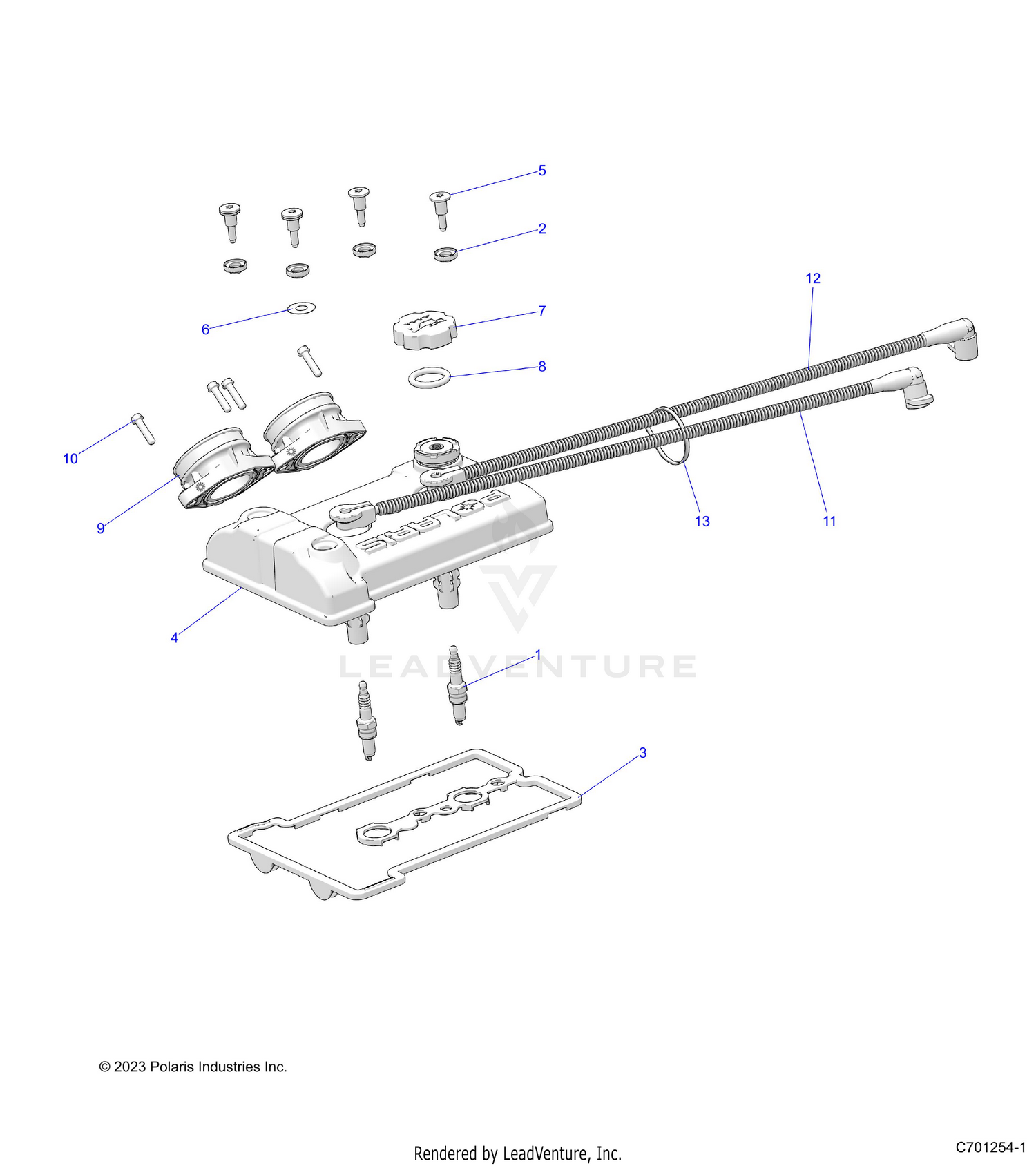

Engine, Throttle Body And Valve Cover - R25rry99as/bs/al/bl/ap/bp/a9/b9/af/bf/ak/bk (c701254-1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPARK PLUG-10 MM
3022662
|
$11.99 | ||
|
Unavailable |
|||
|
#2
ISOLATOR-VALVE COVER
5413806
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SEAL-VALVE COVER,2CY,DOHC
5415011
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER-VALVE,CAST,2CYL,DOHC
5634650
|
$129.99 | ||
|
Unavailable |
|||
|
#5
SCREW-TXPH-M6X1.0X14 8.8 A2K SHB
7519165
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER-GROUNDING
7556750
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
ASM-OIL FILL CAP
1205012
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING-FILL CAP
5414362
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
ADAPTER-THROTTLE BODY
3023789
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW-HXFLG,M6X1.0X25,10.9
7519297
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WIRE-SPARKPLUG,MAG
4082559
|
$64.99 | ||
|
Unavailable |
|||
|
#12
WIRE-SPARKPLUG,PTO
4082560
|
$64.99 | ||
|
Unavailable |
|||
|
#13
CABLE-TIE,10-102MM,WEATH.-RES.
7080761
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
