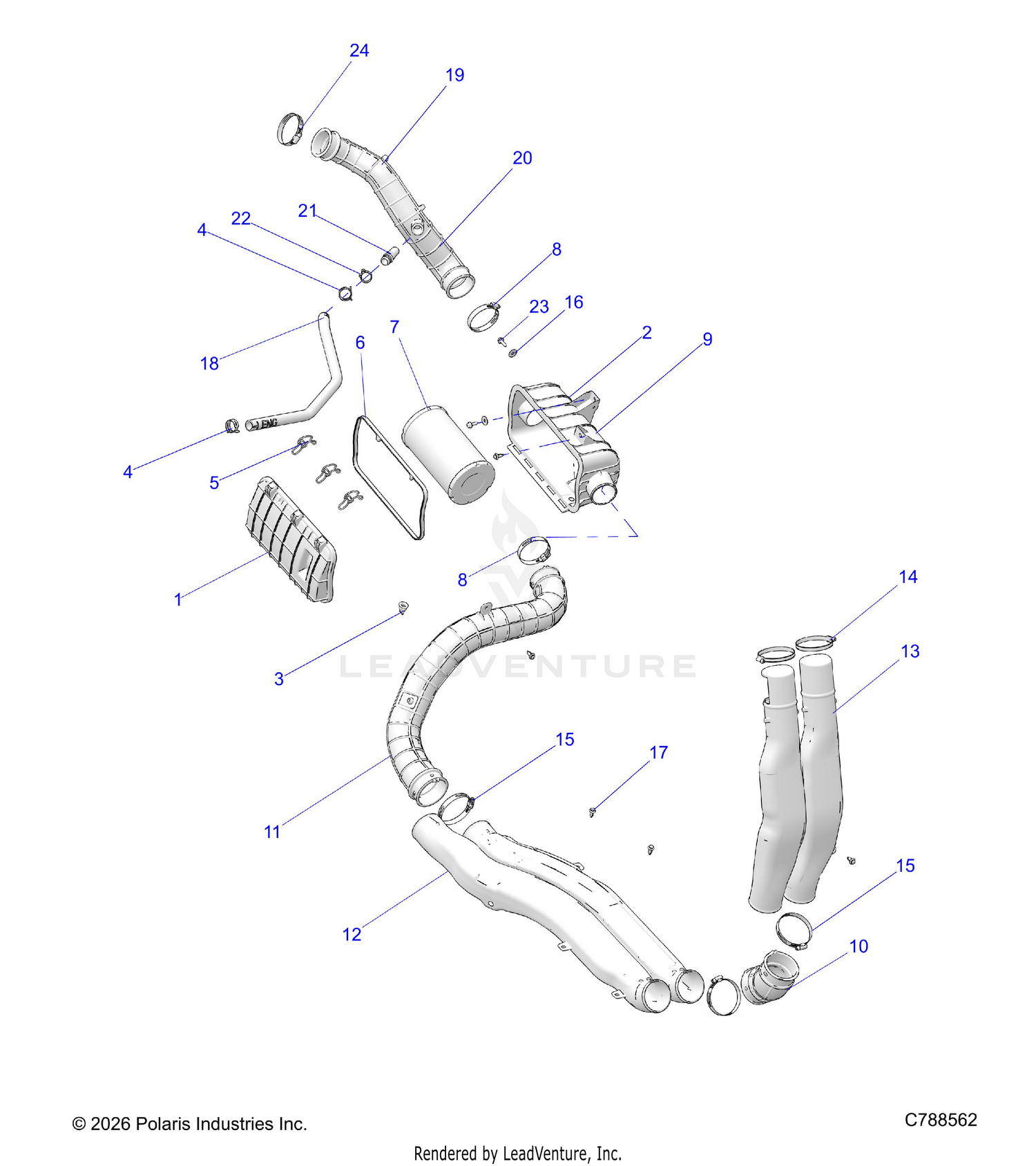

Engine, Air Intake System - R25rry99as/bs/al/bl/ap/bp/a9/b9/af/bf/ak/bk (c788562) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM-AIRBOX COVER
1241271
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
AIRBOX
5455271
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLUG-DRAIN
5414472
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRINGBAND-CLAMP 27/12,GREEN
7080841
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
ASM-AIRBOX CLIP
7082449
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAL-AIRBOX
5814776
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
FILTER-AIR
7082265
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
FILTER-HD,AIR INTAKE,220MM
7083113
|
$59.99 | ||
|
Unavailable |
|||
|
#8
CLAMP-HOSE SLOTTED,60-80 DIA
7082509
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
DECAL-CAUT.AIR BOX
7189751
|
|||
|
Available to order. Add to View Price |
|||
|
#10
HOSE-JOINT
5416135
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOSE-AIRBOX TO TUNNEL
5416169
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
DUCT-TUNNEL
5453765
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
DUCT-INTAKE,FRONT
5453766
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP-BAND,NARROW 70-90MM
7081279
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP-HOSE SLOTTED,75-90 DIA
7082314
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER-.28 X .81 X .06, ST-M
7555935
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
RIVET-TUFLOK,.315-.325X.787
7661855
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
HOSE-VENT,ENGINE
5416136
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
ASM-AIRBOX TO PLENUM
1241155
|
$209.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOSE-AIRBOX TO PLENUM
5416171
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
FITTING-3/4 DOUBLE BARB
7052580
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLAMP-HOSE
7081903
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
CLAMP-HOSE SLOTTED,54-73 DIA
7083235
|
$4.99 | ||
|
Unavailable |
|||
