2025 Polaris RANGER CREW XP 1000 NORTHSTAR ULTIMATE Brakes, Front Caliper - R25rry99as/bs/al/bl/ap/bp/a9/b9/af/bf/ak/bk (c730831) OEM Parts

Air & Fuel
Body, Fairing & Fender
Brakes
Cooling System
Drive & Transmission
Electrical
Engine
Exhaust
Foot Control
Frame
Handlebars & Controls
Other
Seat
Suspension

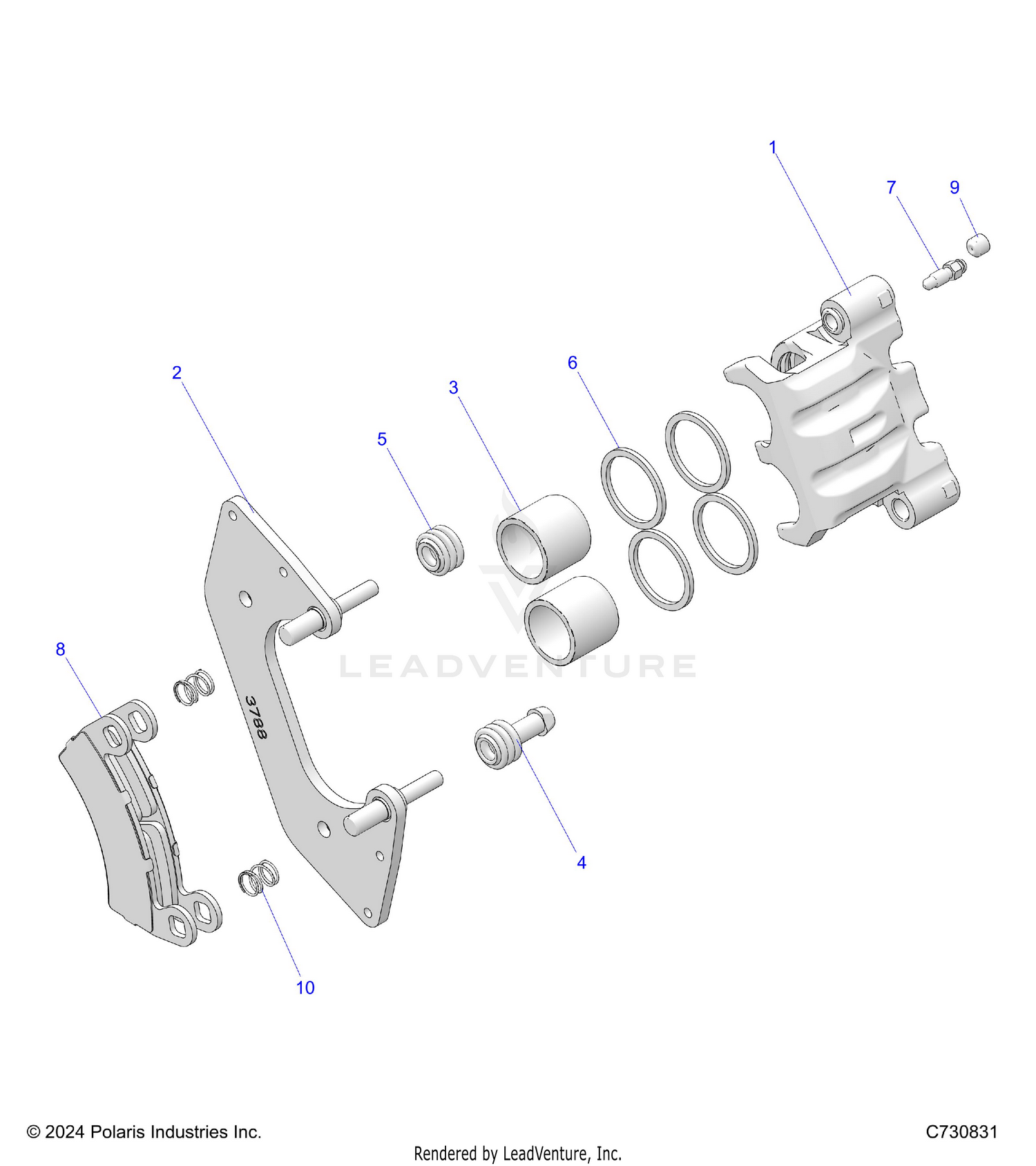

Brakes, Front Caliper - R25rry99as/bs/al/bl/ap/bp/a9/b9/af/bf/ak/bk (c730831) Diagram

Item MSRP Qty
#1 ASM-BRK-L-DB1-3/8-XL-AL SLUG
1914383
$234.99
Unavailable
#1 ASM-BRK-R-DB1-3/8-XL-AL SLUG
1914384
$234.99
Unavailable
#2 ASM-CAL/MNT,DB,1-3/8
1913788
$34.99
Available to order.
Add to View Price
#3 PISTON-BRAKE,1.375,AL,SLUG
5144966
$29.99
Unavailable
#4 BOOT-PIN BUSHING
5412505
$3.99
In Stock: Ready to ship.
Add to View Price
#5 BOOT-PIN SEAL
5412506
$3.99
Available to order.
Add to View Price
#6 SEAL-CALIPER,INNER,1.375"
5412907
$3.99
Available to order.
Add to View Price
#7 SCR-M7X1.0,BLEEDER,OLIVE D
7081343
$6.99
Available to order.
Add to View Price
#8 K-ASM,PAD,BRAKE,DB,1.375,SPR
2209279
$44.99
Available to order.
Add to View Price
#8 K-ASM,HD,PAD,BRK,DB,1.375
2208933
$59.99
Available to order.
Add to View Price
#9 SCR-M10X1.0X8,SOC SET-OD
7518863
$11.99
In Stock: Ready to ship.
Add to View Price
#10 SPRING-COMP,SS
7045868
$4.99
Unavailable
