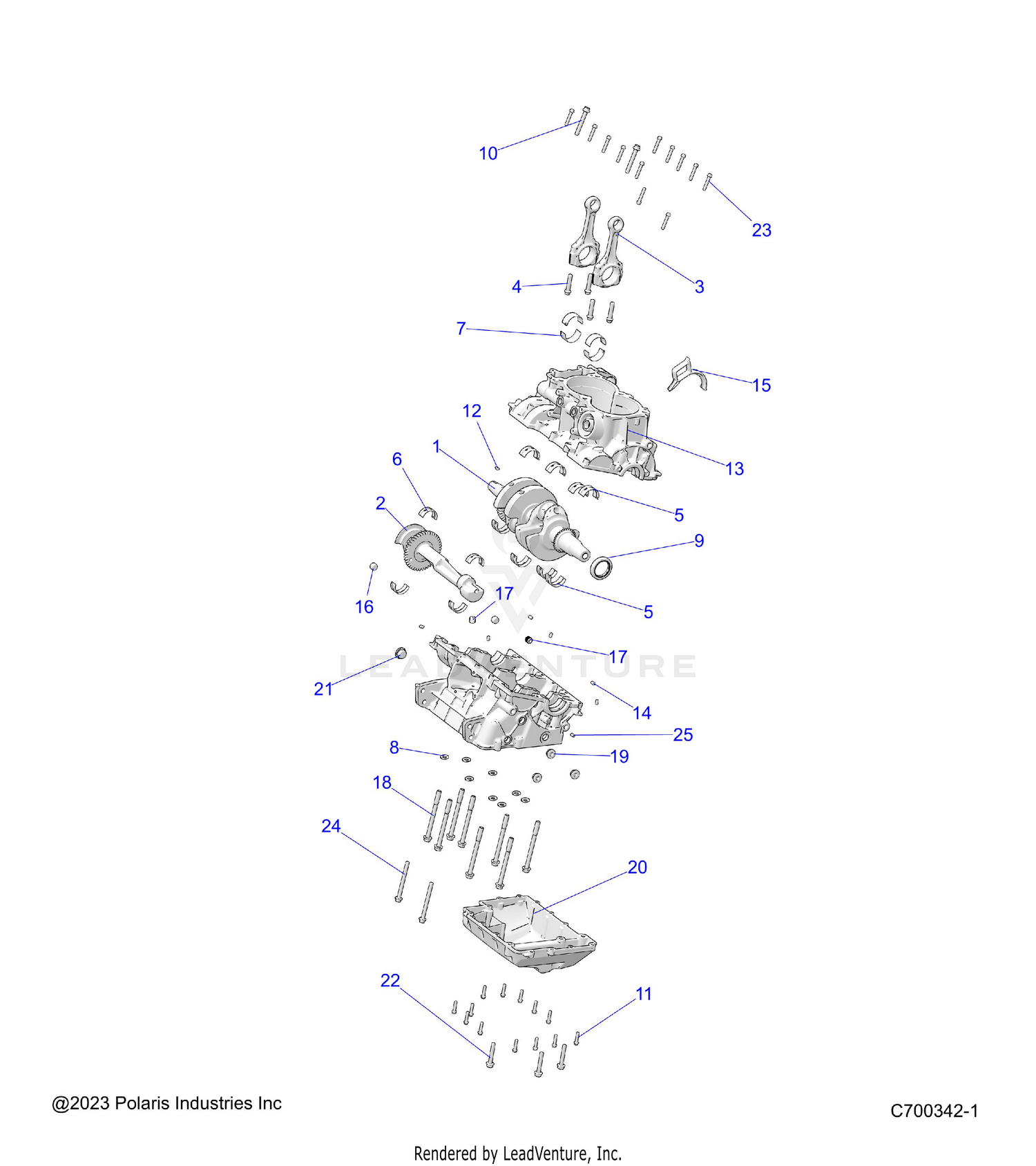

Engine, Crankcase And Crankshaft - R25rry99as/bs/al/bl/ap/bp/a9/b9/af/bf/ak/bk (c700342-1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
ASM-CRANKCASE
3023497
|
$1,334.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
ASM-CRANKSHAFT HVAC
3024017
|
$1,229.99 | ||
|
Unavailable |
|||
|
#2
ASM-BALANCE SHAFT
1204835
|
$449.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
ASM-CONNECTING ROD
3024355
|
$204.99 | ||
|
Unavailable |
|||
|
#4
BOLT-CONROD MJ9X1.0X44
7520356
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING-MAIN,G-90,41MM
3515160-001
|
$11.99 | ||
|
Unavailable |
|||
|
#5
BEARING, MAIN, BLUE
3515160-002
|
$11.99 | ||
|
Unavailable |
|||
|
#5
BEARING, MAIN, GREEN
3515160-003
|
$11.99 | ||
|
Unavailable |
|||
|
#5
BEARING, MAIN, YELLOW
3515160-004
|
$11.99 | ||
|
Unavailable |
|||
|
#5
BEARING, MAIN, RED
3515160-005
|
$11.99 | ||
|
Unavailable |
|||
|
#6
BEARING-BAL SHAFT,38X41X17.5
3514756
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING, CONNECTING ROD, WHITE
3515159-001
|
$10.99 | ||
|
Unavailable |
|||
|
#7
BEARING, CONNECTING ROD, BLUE
3515159-002
|
$10.99 | ||
|
Unavailable |
|||
|
#7
BEARING, CONNECTING ROD, GREEN
3515159-003
|
$10.99 | ||
|
Unavailable |
|||
|
#7
BEARING, CONNECTING ROD, YELLOW
3515159-004
|
$10.99 | ||
|
Unavailable |
|||
|
#8
WASHER
-------
|
|||
|
Unavailable |
|||
|
#9
SEAL-CRANKSHAFT
3610284
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCR-HXFLG,M8X1.25X60
7519186
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW-HXFLG,M6X1.0X25,10.9
7519297
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
KEY-WOODRUFF,4X5
7721122
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
K-CRANKCASE 3023497
2207831
|
$1,334.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN-DOWEL,M6X10
5143560
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
DIVERTER, OIL DRAIN
5455583
|
$16.99 | ||
|
Unavailable |
|||
|
#16
PLUG-3/8 NPT,HX/SOC W/SEALANT
7052413
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
PLUG-3/8 NPT,HX/SOC W/SEALANT
7521170
|
$0.99 | ||
|
Unavailable |
|||
|
#17
PLUG-HEX SOCKET,1/4X18,SEALANT
7518835
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCR-HXFL,M10X1.25X113MM 10.9
7527904
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCR-HXFL,M10X1.25X113MM 10.9
7528378
|
$2.99 | ||
|
Unavailable |
|||
|
#19
PLUG-HEX SCKT,W/O-RING,M16X1.5
7052642
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
COVER-SUMP,MACH
5143719
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
PLUG-HEX SCKT,W/O-RING,M20X1.5
7052643
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCR-M8X1.25X50 HX/FL-Y
7517793
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCR-HXFL-M6X1.0X35 8.8 ZY3
7518578
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCR-HXFLG,M8X1.25X90
7519154
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCR-SH-M8X1.25X25 8.8 ZPC NYL
7518142
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
