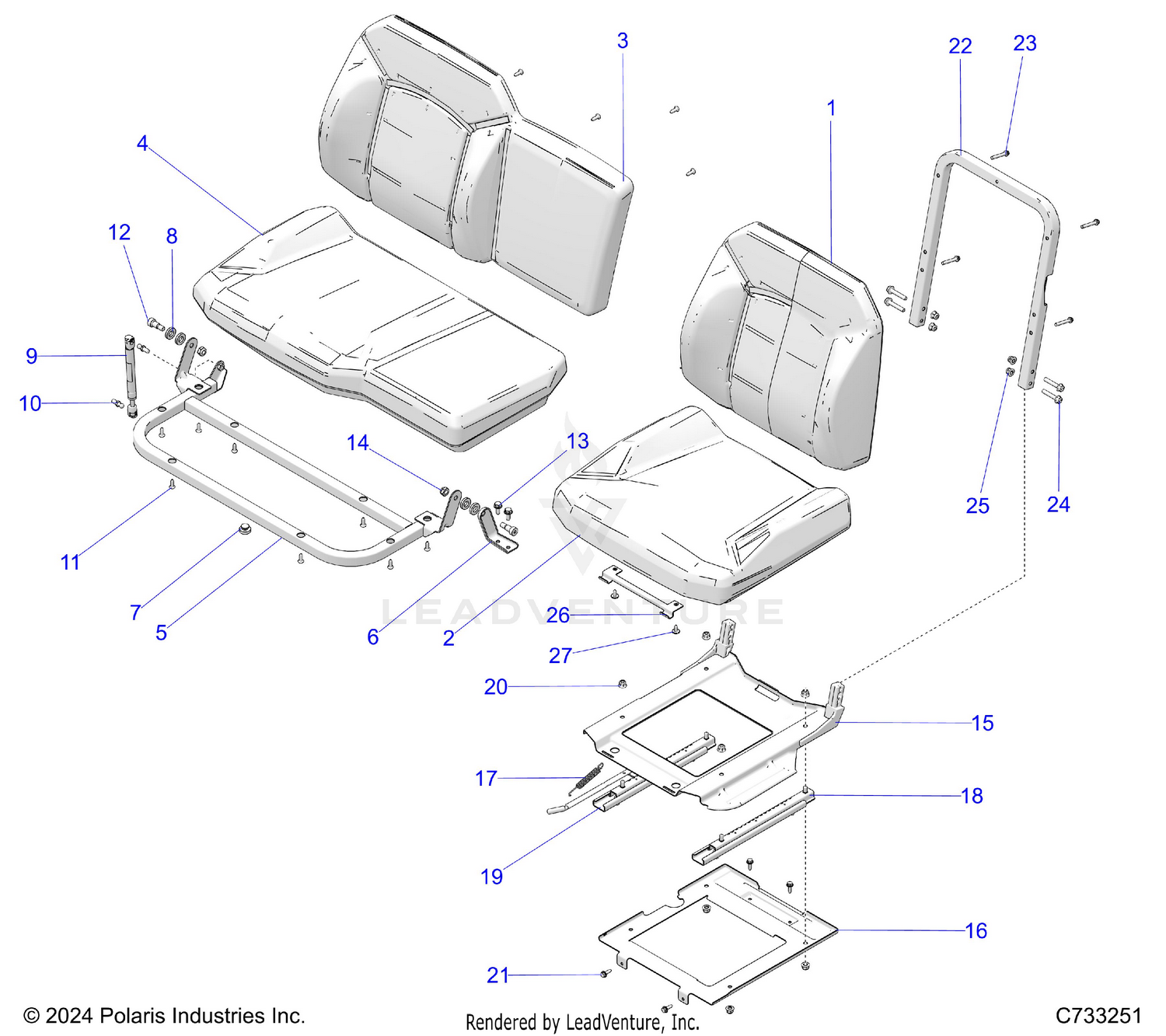

Body, Seat Asm. And Slider - R25rry99as/bs/al/bl/ap/bp/a9/b9/af/bf/ak/bk (c733251) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM-SEAT,BACK,40,BLACK
2692603
|
$364.99 | ||
|
Unavailable |
|||
|
#1
ASM-SEAT,BACK,40,BLK/PPC
2693123
|
$364.99 | ||
|
Unavailable |
|||
|
#2
ASM-SEAT,BTM,40,FLIP,BLK,DS
2691818
|
$444.99 | ||
|
Unavailable |
|||
|
#2
ASM-SEAT,BTM,40,FLIP,PPC,DS
2693120
|
$444.99 | ||
|
Unavailable |
|||
|
#3
ASM-SEAT,BACK,60,BLACK
2692602
|
$419.99 | ||
|
Unavailable |
|||
|
#3
ASM-SEAT,BACK,60,BLK/PPC
2693122
|
$419.99 | ||
|
Unavailable |
|||
|
#4
ASM-SEAT,BTM,60,BLACK
2691813
|
$494.99 | ||
|
Unavailable |
|||
|
#4
ASM-SEAT,BTM,60,BLK/PPC
2693121
|
$494.99 | ||
|
Unavailable |
|||
|
#5
WELD-SEAT BASE, PASS, M. BLK
1023099-458
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRKT-SEAT PIVOT, BLK
5263494-458
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BUMPER-RUBBER
5412067
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER-SEATBELT,RUBBER
5813829
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHOCK-GAS, 285MM
7044799
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHOCK-GAS,285MM
7046186
|
$49.99 | ||
|
Unavailable |
|||
|
#10
BALL-END
7082301
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BALL-END
7083089
|
$3.49 | ||
|
Unavailable |
|||
|
#11
SCR-TX TRUSS-#14X3/4, HI/LO ZBK
7519045
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCR-SHS-M10X1.5-M12X16 RIE
7519355
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCR-HFH-M8X1.25X20 TAP/R ZPB
7519780
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT-HEX M10X1.5 8 ZOD NYL
7547442
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
ASM-SLIDE,SEAT
2688492
|
$554.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WELD-SLIDE,SEAT,TOP,BLK
1023808-458
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRKT-SEAT,BTM,BLK
5270799-458
|
$79.99 | ||
|
Unavailable |
|||
|
#17
SPRING-SEAT SLIDER
7082802
|
$8.99 | ||
|
Unavailable |
|||
|
#18
SLIDER-SEAT ADJUSTER,LH,4IN
7082834
|
$64.99 | ||
|
Unavailable |
|||
|
#19
SLIDER-SEAT ADJUSTER,RH,4IN
7082835
|
$64.99 | ||
|
Unavailable |
|||
|
#19
SLIDER-SEAT ADJUSTER,RH,4IN
7083178
|
|||
|
Unavailable |
|||
|
#20
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
|
$4.99 | ||
|
Unavailable |
|||
|
#20
NUT-HXFL-M8X1.25 8 ZTB NYL
7548028
|
$2.99 | ||
|
Unavailable |
|||
|
#21
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
TUBE-SEAT,BACK,BLK
5340280-458
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCR-#14X1-3/4 LG,HI/LO/TAPER-M
7512093
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCR-HXFL-M8X1.25X45 10.9 ZFB
7521332-45
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT-HXFL-M8X1.25 8 ZTB NYL
7548028
|
$2.99 | ||
|
Unavailable |
|||
|
#26
BRKT-SEAT HINGE,DOUBLE,BLK
5265262-458
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCR-M6X1X16 TR/TX-M
7518936
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
