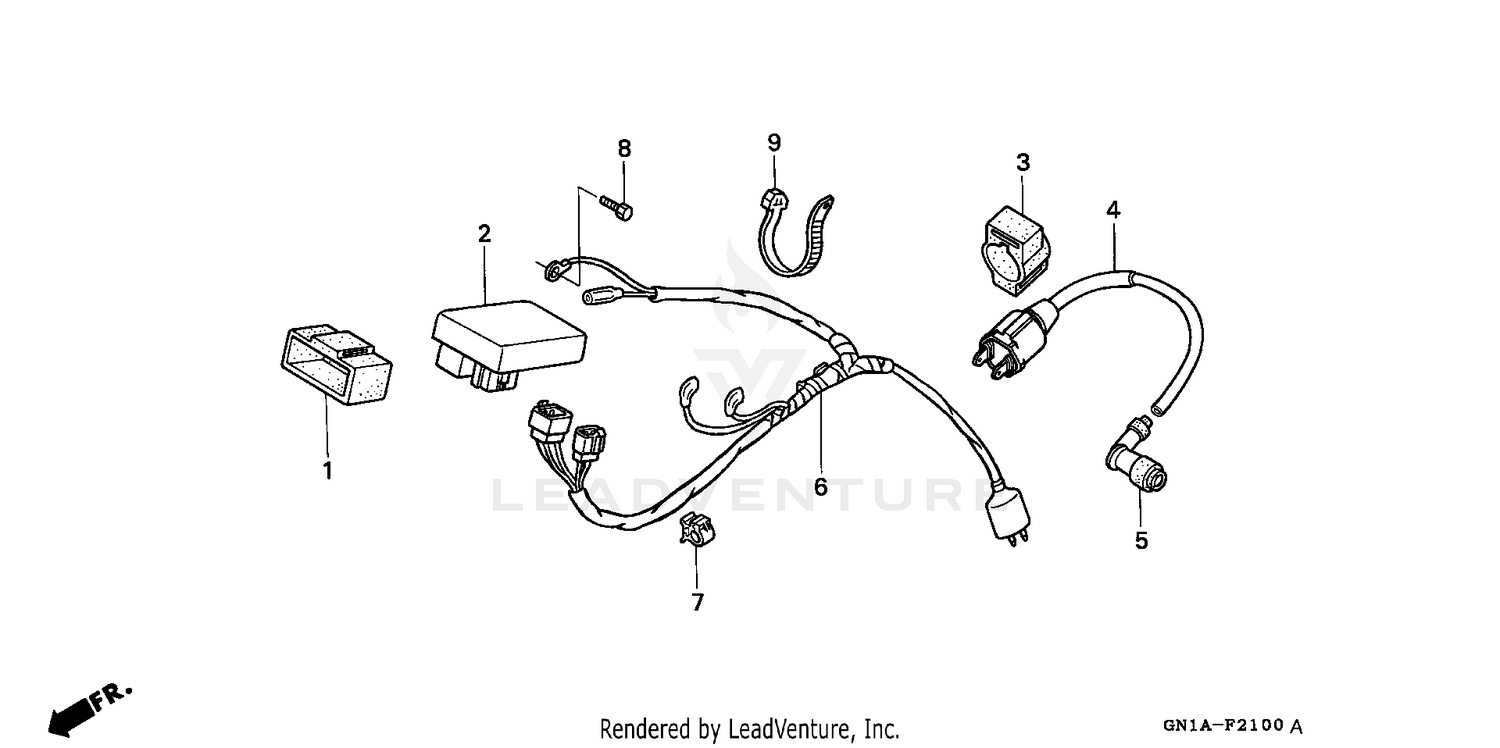

Wire Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CUSHION, IGNITION CONTROL MODULE (CDI)
30401-KK0-770
Superseded by 30401-KT1-670
|
$6.62 | ||
|
Available to order. Add to View Price |
|||
|
#2
MODULE, IGNITION CONTROL (CDI)
30410-GT9-000
|
$252.60 | ||
|
Available to order. Add to View Price |
|||
|
#3
SUSPENSION, IGNITION COIL
30506-KV3-771
|
$14.40 | ||
|
Available to order. Add to View Price |
|||
|
#4
COIL, IGNITION
30510-KN4-850
Superseded by 30510-KT0-405
|
$93.69 | ||
|
Available to order. Add to View Price |
|||
|
#4
COIL, IGNITION
30510-KT0-405
|
$93.69 | ||
|
Unavailable |
|||
|
#5
CAP ASSY.
30700-KN4-A60
Superseded by 30700-KN4-A61
|
$31.58 | ||
|
Available to order. Add to View Price |
|||
|
#6
WIRE HARNESS
32100-KN4-A60
|
$78.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLIP, CABLE (10MM)
90690-GHB-641
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, HEX. (5X8)
92101-05008-0A
|
$0.90 | ||
|
Unavailable |
|||
|
#9
BAND, WIRE HARNESS
90650-MA6-720
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
