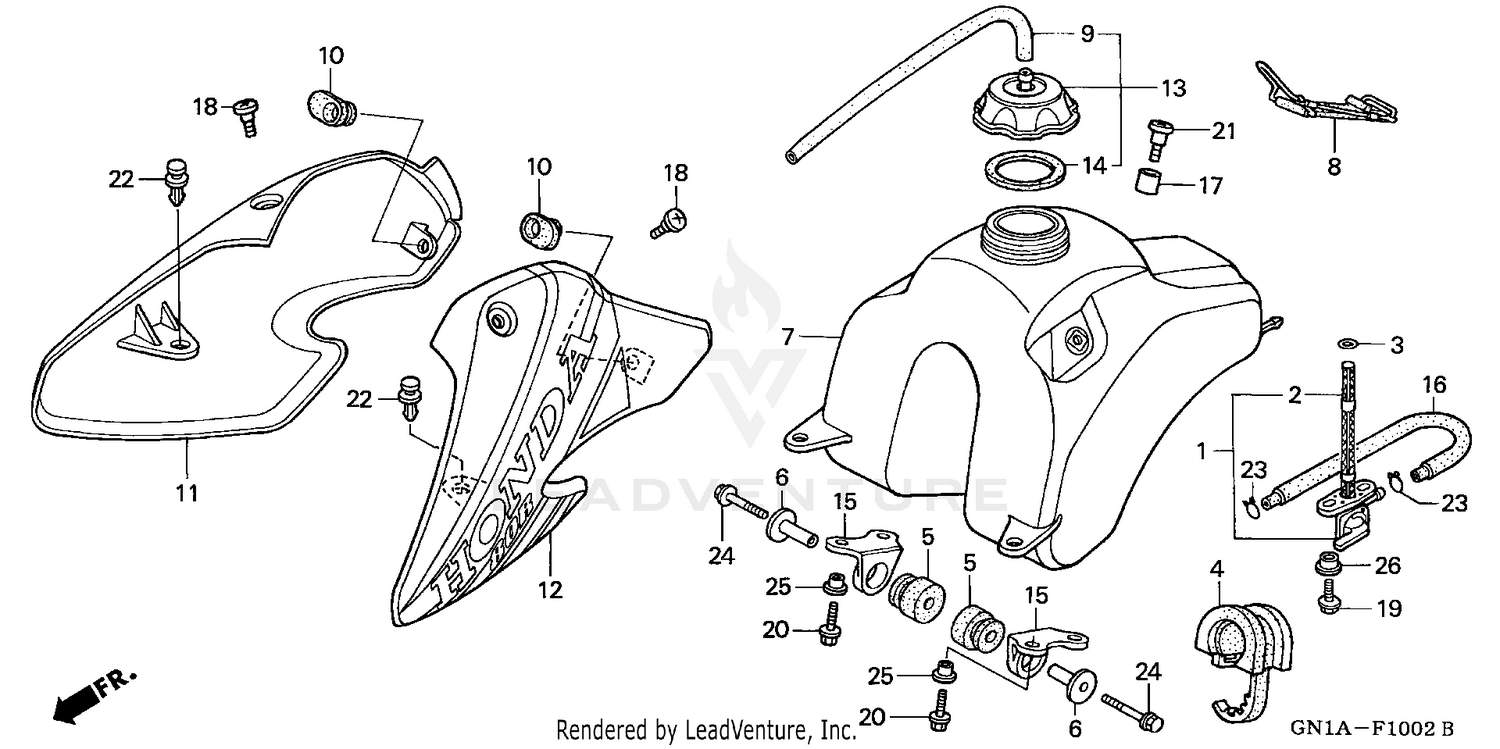

Fuel Tank 01-02 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PETCOCK ASSY.
16950-GEL-701
|
$74.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
SCREEN SET, FUEL STRAINER
16952-GEL-701
|
$25.96 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-RING (11.8X3.55)
16997-467-000
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
RUBBER, TANK SETTING
17504-GN1-770
|
$18.67 | ||
|
Available to order. Add to View Price |
|||
|
#5
RUBBER, TANK MOUNTING
17508-GBF-830
|
$7.42 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR, TANK SETTING
17509-KN4-A60
|
$7.47 | ||
|
Available to order. Add to View Price |
|||
|
#7
TANK, FUEL
17510-KN4-A60
|
$294.43 | ||
|
Unavailable |
|||
|
#8
BAND, RR. TANK
17516-KN4-A60
Superseded by 17516-KSJ-670
|
$17.80 | ||
|
Available to order. Add to View Price |
|||
|
#8
BAND, RR. TANK
17516-KSJ-670
|
$17.80 | ||
|
Unavailable |
|||
|
#9
TUBE, FUEL CAP BREATHER
17521-429-000
|
$8.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
GROMMET, SHROUD
17541-KN4-A60
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHROUD SET, R. TANK (TYPE1) (WL)
17545-GN1-A50ZA
|
$49.32 | ||
|
Unavailable |
|||
|
#12
SHROUD SET, L. TANK (TYPE1) (WL)
17555-GN1-A50ZA
|
$51.02 | ||
|
Unavailable |
|||
|
#13
CAP ASSY., FUEL TANK
17620-GEL-770
|
$38.11 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET, FUEL CAP
17624-GEL-770
|
$5.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BRACKET, FR. FUEL TANK
17634-KZ3-860
|
$17.60 | ||
|
Available to order. Add to View Price |
|||
|
#16
TUBE, FUEL
17681-GN1-000
|
$11.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
COLLAR, BATTERY (LOWER)
83607-356-000
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW A, COWL SETTING
90103-KV3-830
|
$3.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X14)
96001-06014-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X16)
96001-06016-00
|
$1.10 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
SCREW, SPECIAL (6X17)
90381-GZ5-000
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLIP, SPLASH GUARD
90653-HC4-900
|
$0.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
CLIP, TUBE (B8)
95002-02080
|
$1.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X40)
96300-06040-00
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#25
COLLAR
84706-415-000
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#26
COLLAR, FUEL TANK SETTING
17626-467-000
|
$6.00 | ||
|
Available to order. Add to View Price |
|||
