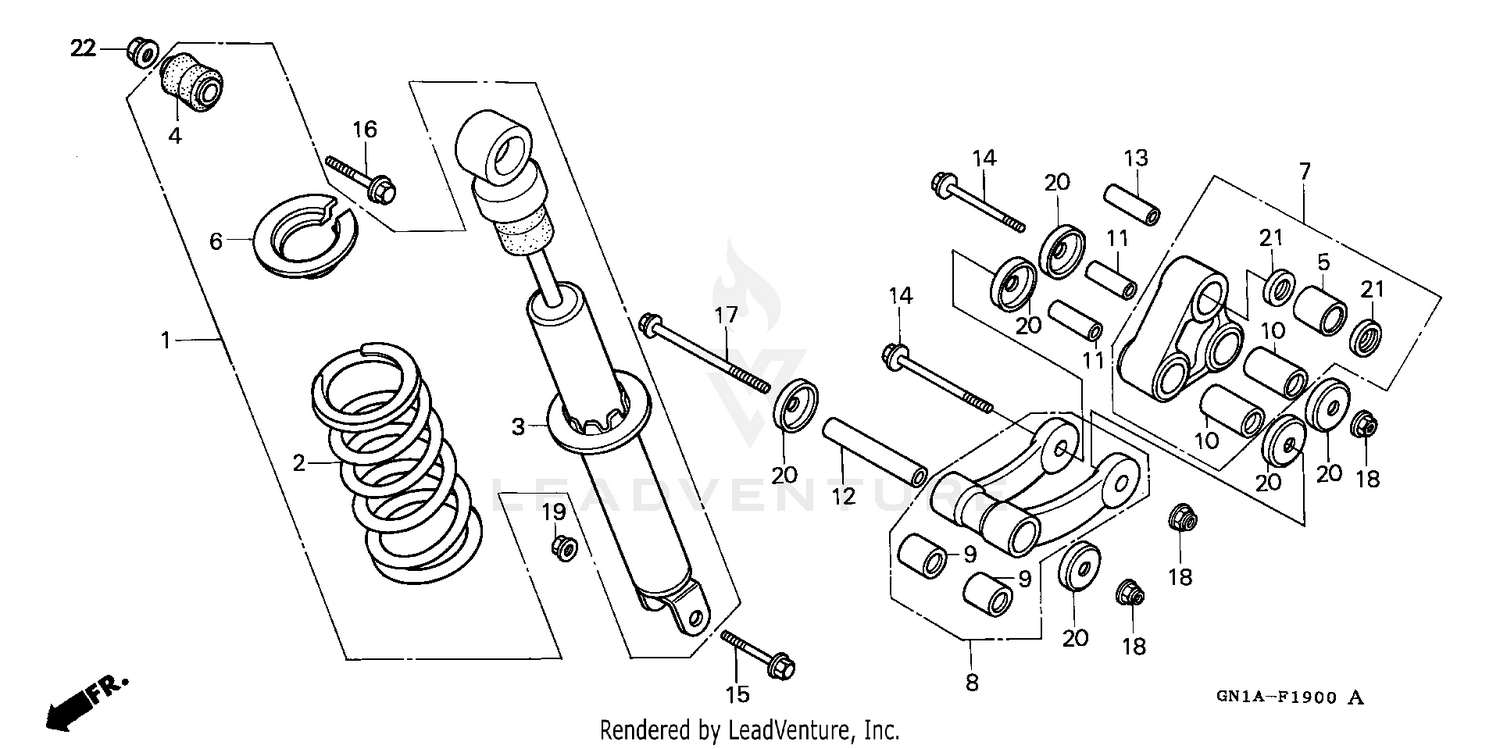

Rear Shock Absorber Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CUSHION ASSY., RR. *Y147* (SAFFRON YELLOW)
52400-GN1-013ZE
|
$249.08 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPRING, RR. SHOCK ABSORBER *Y147* (SAFFRON YELLOW) (NOT AVAILABLE)
52401-GN1-003ZE
|
$82.66 | ||
|
Unavailable |
|||
|
#3
DAMPER, RR.
52410-GN1-013
|
$267.93 | ||
|
Unavailable |
|||
|
#4
BUSH, DAMPER (LOWER)
52451-MA0-000
|
$18.31 | ||
|
Available to order. Add to View Price |
|||
|
#5
BUSH, DAMPER (LOWER)
52452-GN1-000
|
$14.82 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAT, SPRING STOPPER (SHOWA)
52459-KC1-003
|
$15.32 | ||
|
Unavailable |
|||
|
#7
ARM SUB-ASSY., CUSHION
52465-GN1-A50
|
$259.75 | ||
|
Available to order. Add to View Price |
|||
|
#8
ROD SUB-ASSY., CUSHION CONNECTING
52475-KN4-A60
|
$200.97 | ||
|
Available to order. Add to View Price |
|||
|
#9
BUSH, CUSHION CONNECTING ROD
52472-GJ1-003
|
$29.65 | ||
|
Available to order. Add to View Price |
|||
|
#10
BUSH, CUSHION ARM
52472-GN1-000
|
$29.65 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR, CONNECTING ROD PIVOT
52473-GE2-000
|
$22.35 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR, CONNECTING ROD
52473-GN1-000
|
$18.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR, DAMPER (LOWER)
52486-GN1-000
|
$11.29 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (10X61)
90128-GN1-000
|
$8.60 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (8X47)
90150-GN1-000
|
$6.45 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (10X55)
90152-GN1-000
Superseded by 95801-10055-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (10X98)
90154-GN1-000
|
$10.69 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, U FLANGE (10MM)
90304-KN4-A61
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, FLANGE (8MM)
90309-KF0-003
Superseded by 90309-428-731
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
NUT, FLANGE (M8X1.25) (SELF-LOCK)
90309-428-731
|
$4.20 | ||
|
Unavailable |
|||
|
#20
CAP, DUST SEAL
91262-KN4-A61
|
$8.71 | ||
|
Available to order. Add to View Price |
|||
|
#21
SEAL, DAMPER (LOWER)
91263-GN1-003
|
$5.98 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, U FLANGE (10MM)
90304-KN4-A60
|
$2.13 | ||
|
Unavailable |
|||
