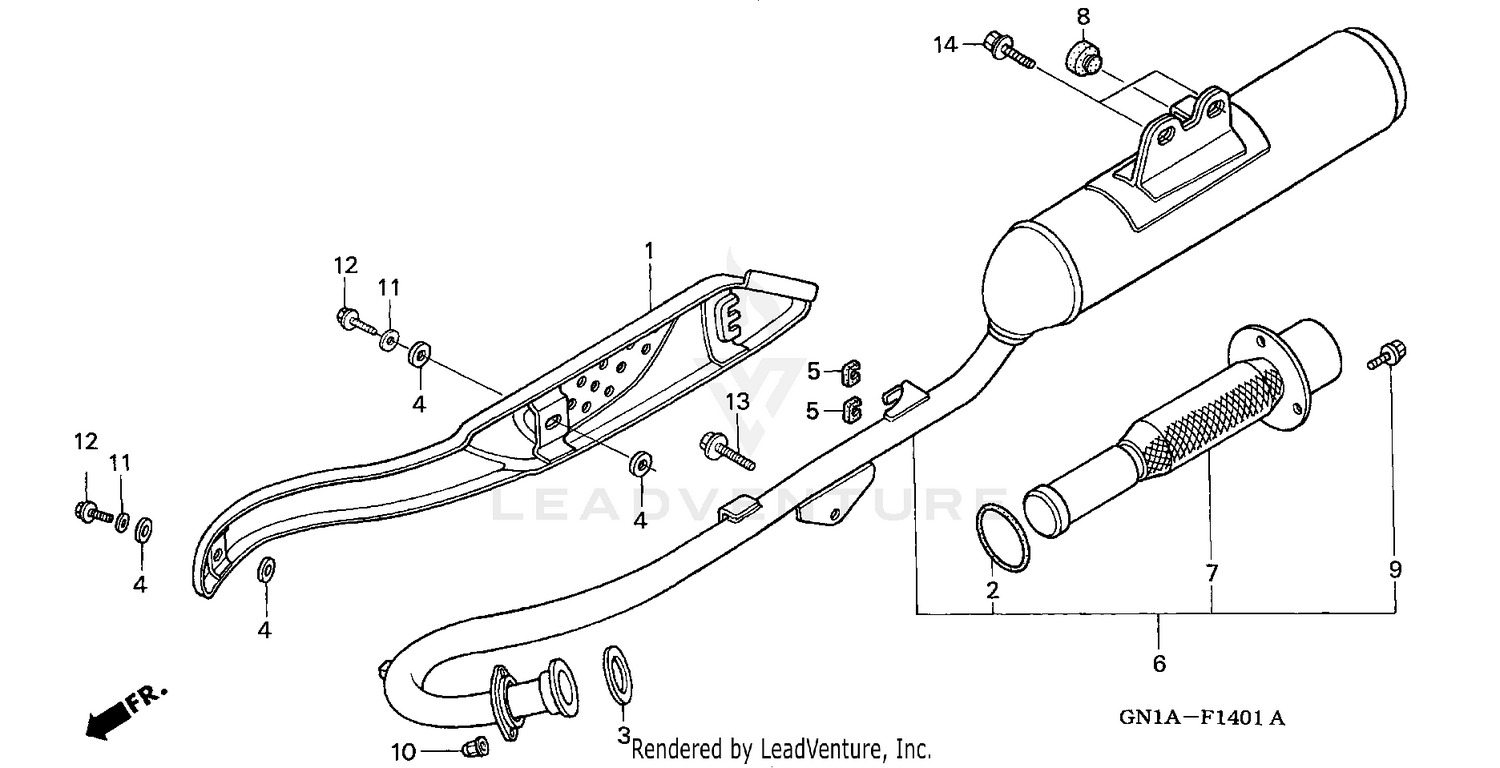

Muffler 01-02 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PROTECTOR, EX. PIPE (COO)
18240-GFW-305
|
$98.42 | ||
|
Available to order. Add to View Price |
|||
|
#1
PROTECTOR, EX. PIPE (COO)
18240-KN4-A60
Superseded by 18240-GFW-305
|
$98.42 | ||
|
Unavailable |
|||
|
#2
GASKET A, EX. PIPE
18291-KR1-680
|
$10.53 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, EX. PIPE
18291-KZ1-670
|
$6.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
GASKET, PROTECTOR
18292-KBR-000
|
$4.33 | ||
|
Available to order. Add to View Price |
|||
|
#5
RUBBER, PROTECTOR GASKET
18293-MBC-000
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#6
MUFFLER ASSY., EX.
18300-KN4-A60
|
$233.88 | ||
|
Unavailable |
|||
|
#7
ARRESTER, SPARK
18317-GFW-305
|
$89.24 | ||
|
Available to order. Add to View Price |
|||
|
#7
ARRESTER, SPARK
18317-KN4-A60
Superseded by 18317-GFW-305
|
$89.24 | ||
|
Unavailable |
|||
|
#8
RUBBER, SIDE COVER
83512-KA4-700
|
$5.75 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (6X10)
90101-KCE-000
Superseded by 96001-06010-07
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, CAP (6MM)
90304-438-000
|
$8.96 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
WASHER, PLAIN (6MM)
94101-06700
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X12)
96001-06012-07
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (8X14)
96300-08014-07
|
$2.16 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (8X14)
96300-08014-07
|
$2.16 | ||
|
Unavailable |
|||
